Miniprojeto Multiplexador PUBLIC

Created by
Created July 12, 2018
Last modified July 13, 2018
Tags No tags.

Summary

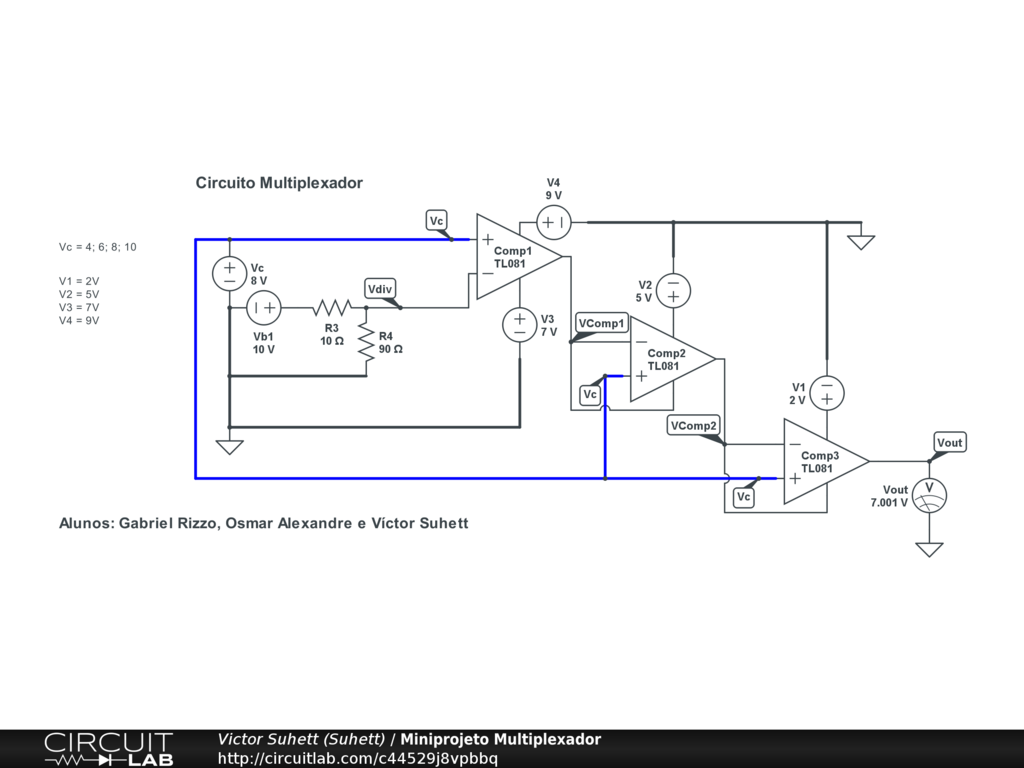

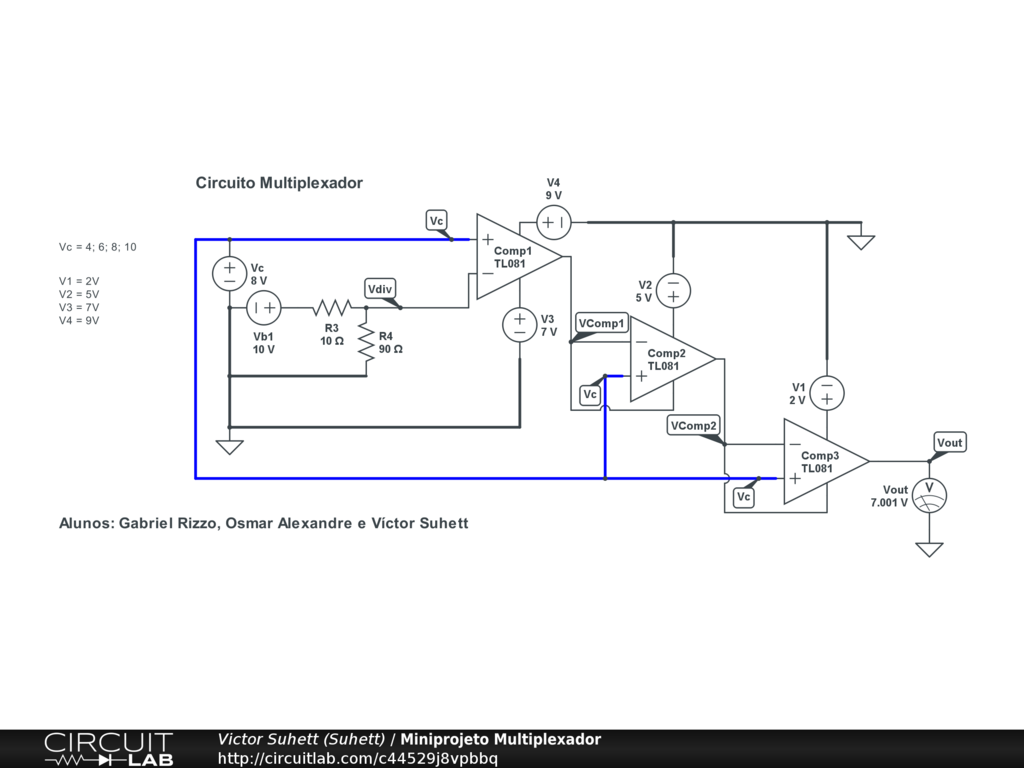

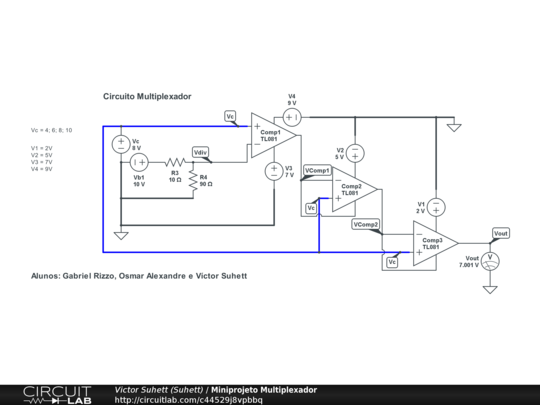

Multiplexador que retorna v1=2V, v2=5V, v3=7V, ou v4=9V, se a entrada Vc for igual a 4V, 6V, 8V, ou 10V, respectivamente.
