Exclusive OR circuit

Created by	heath.white23
Created	March 11, 2015
Last modified	March 12, 2015
Tags	and exclusive exclusive-or gate-gates not or

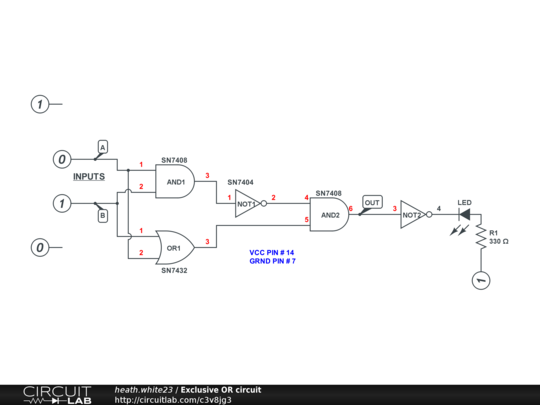

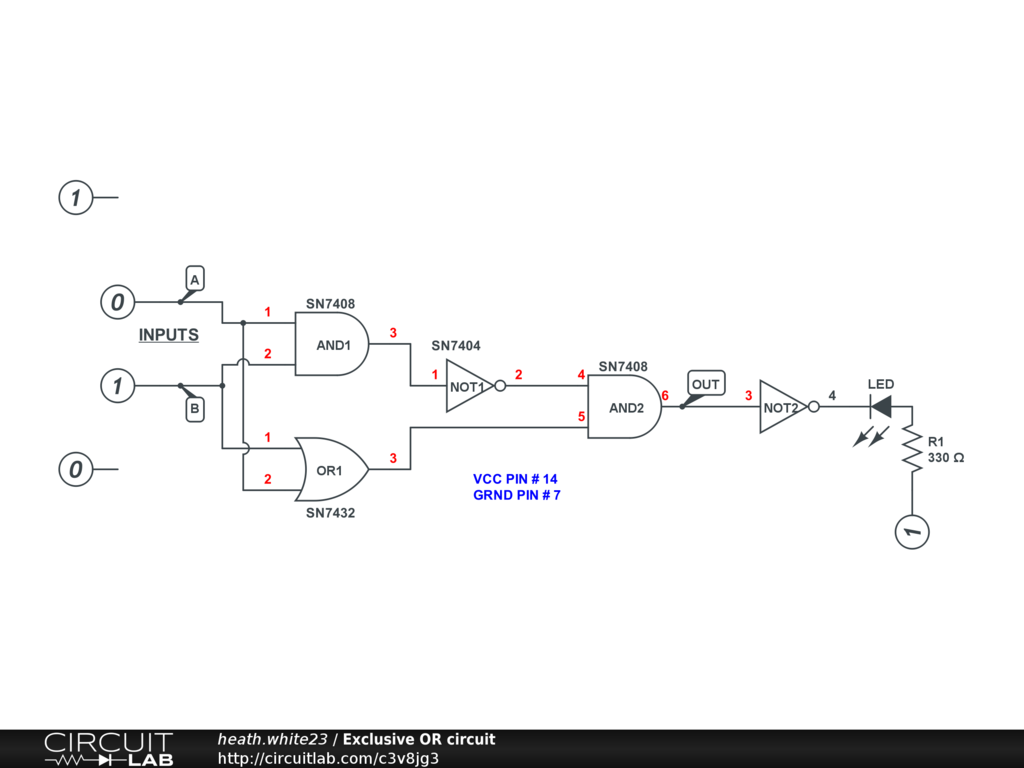

Had to build this circuit with only the 3 gates provided. It could also be done with just an exclusive OR gate circuit.
