Description

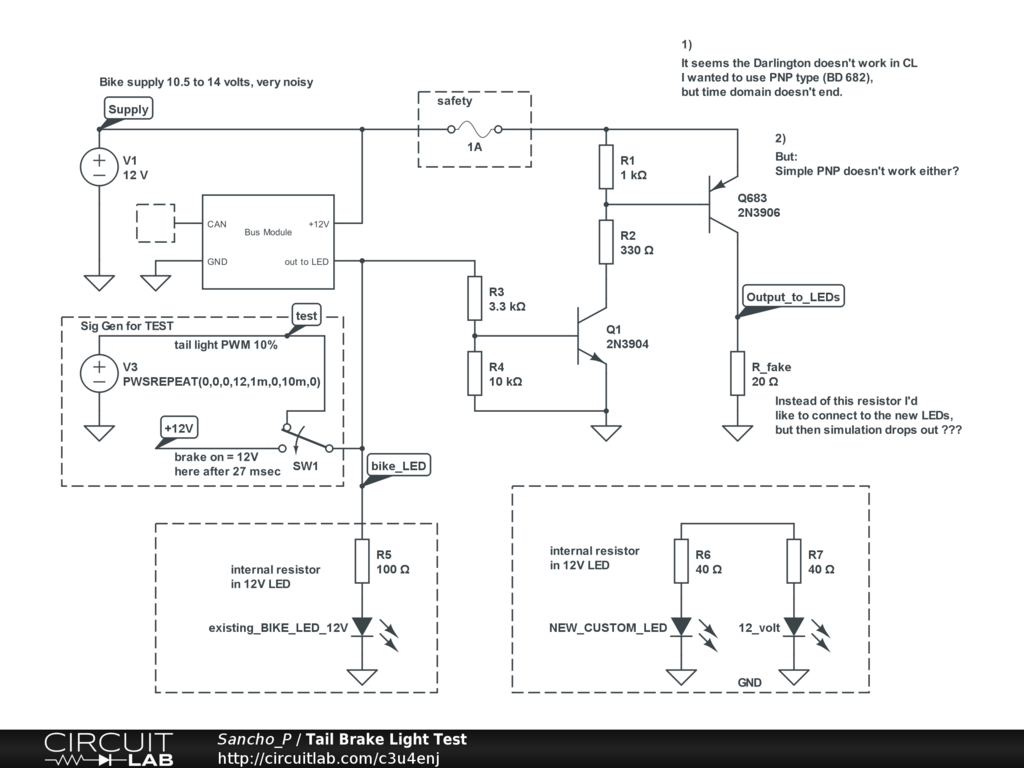

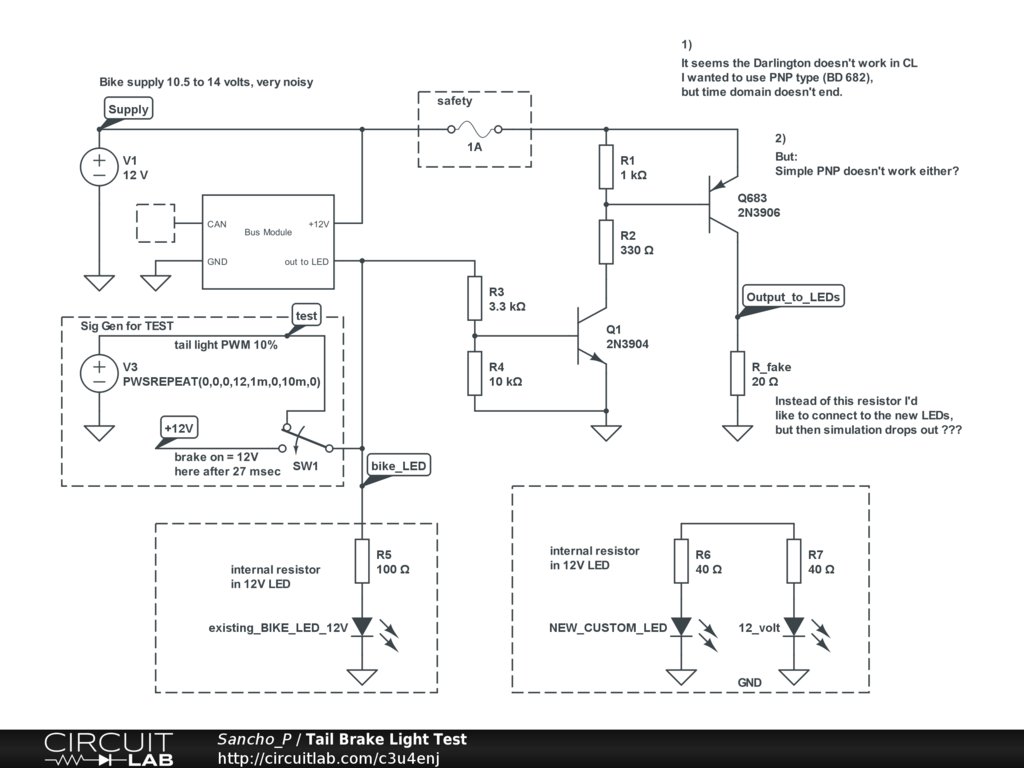

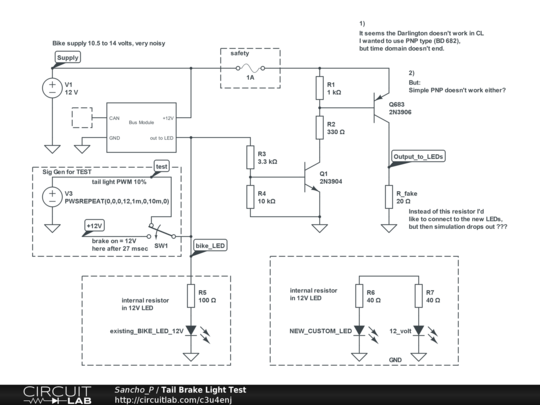

The circuit shoud simulate the tail light with PWM and then hitting the brake (automatically, here after 27 msec.

Unfortunately the simulation has troubles when I connect the new LEDs instead of the dummy load (which is way too high for the small transistor).
