COLLECTOR VOLTAGE STABILISER

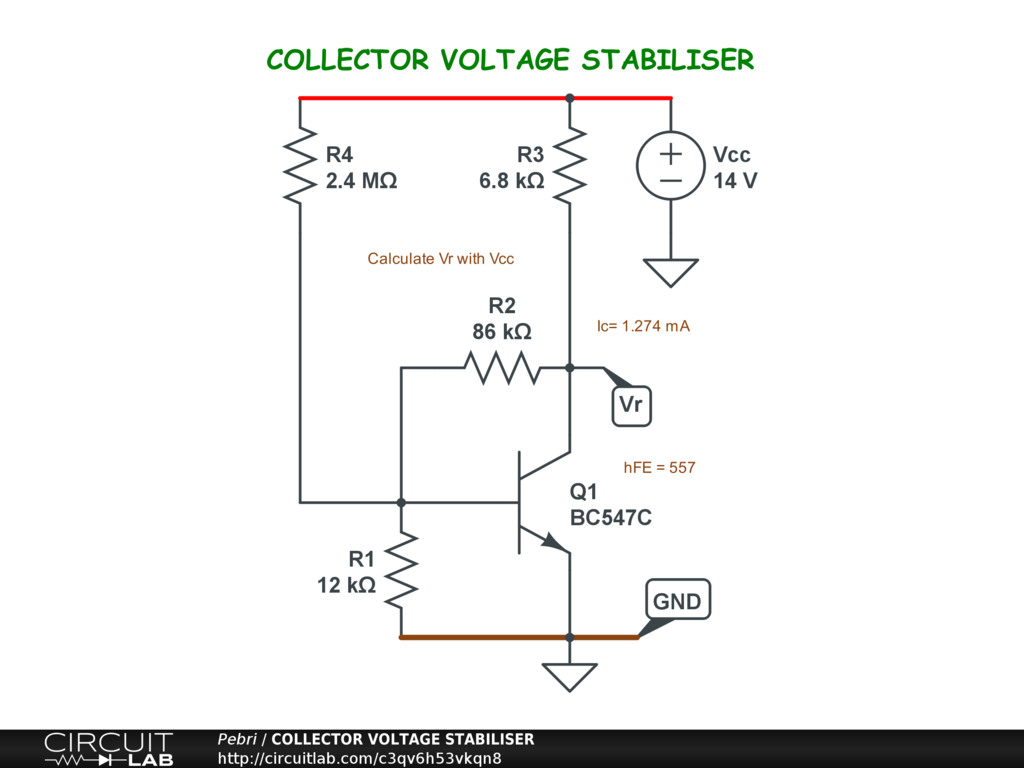

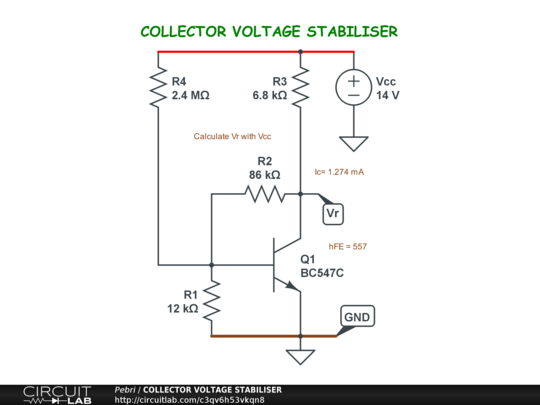

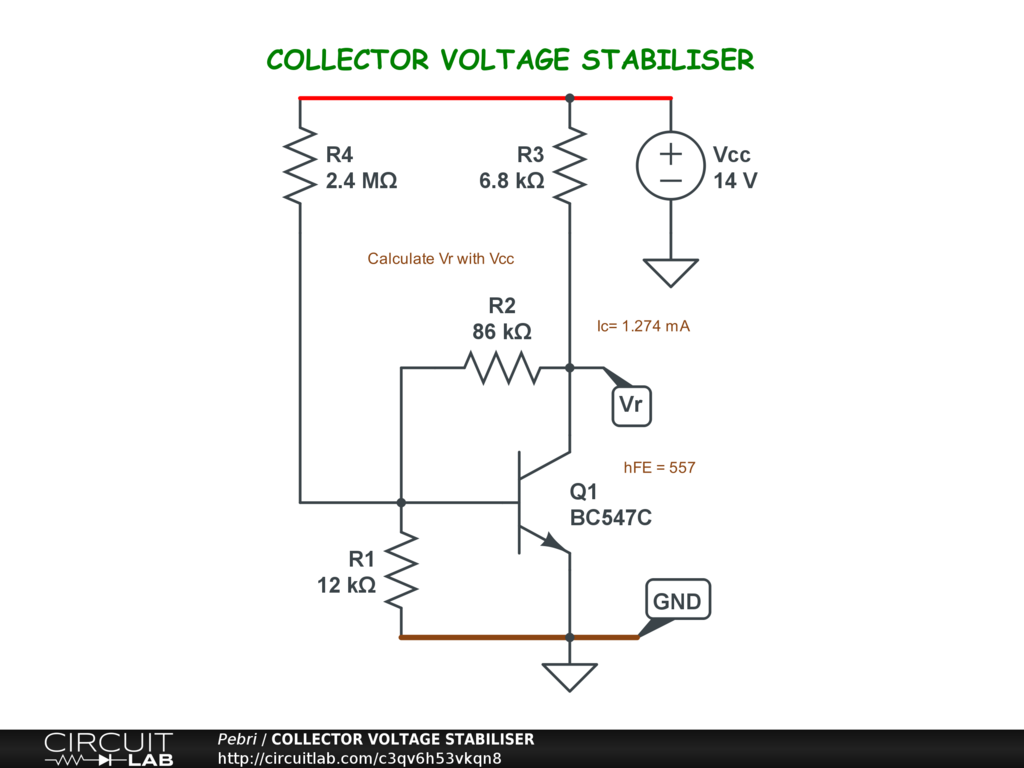

Adding R4 stabilises this transistor's collector voltage against variations in Vcc. This transistor is biassed to Vr = 5.0 Volts

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

The addition of R4 will, if correctly chosen, stabilise Vr at the medium to high levels of a varying Vcc.
