Simple Counter: Anyone ever make a counter like this?
Copy and paste the appropriate tags to share.
Schematic PNGs: (download or hot-link)
Circuit URL (e-mail, IM, blog, etc.):
CircuitLab forums and comments:
BBCode (many online discussion forums):

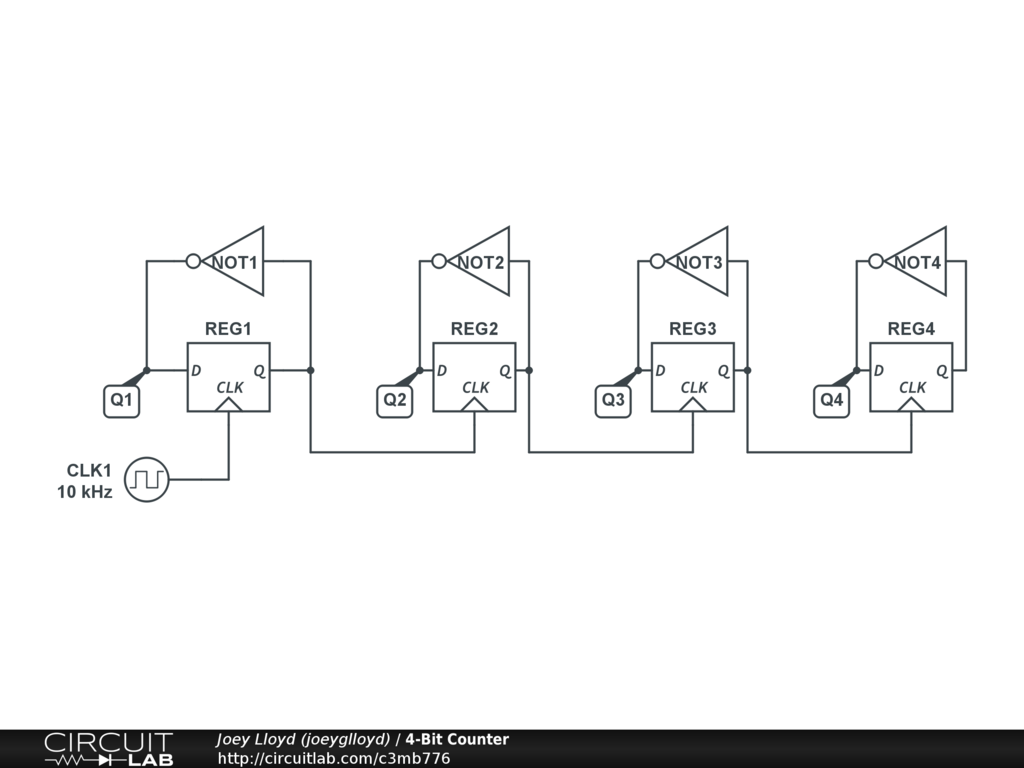

Each stage toggles on a clock pulse. Add as many stages as you want.
