Not provided.

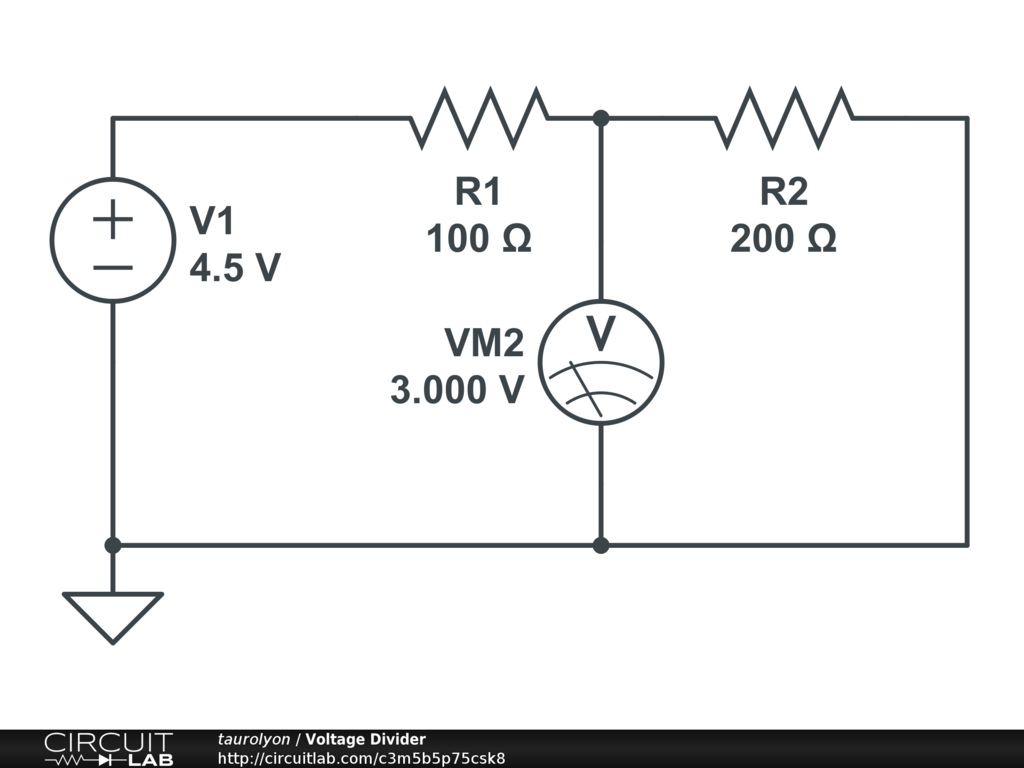

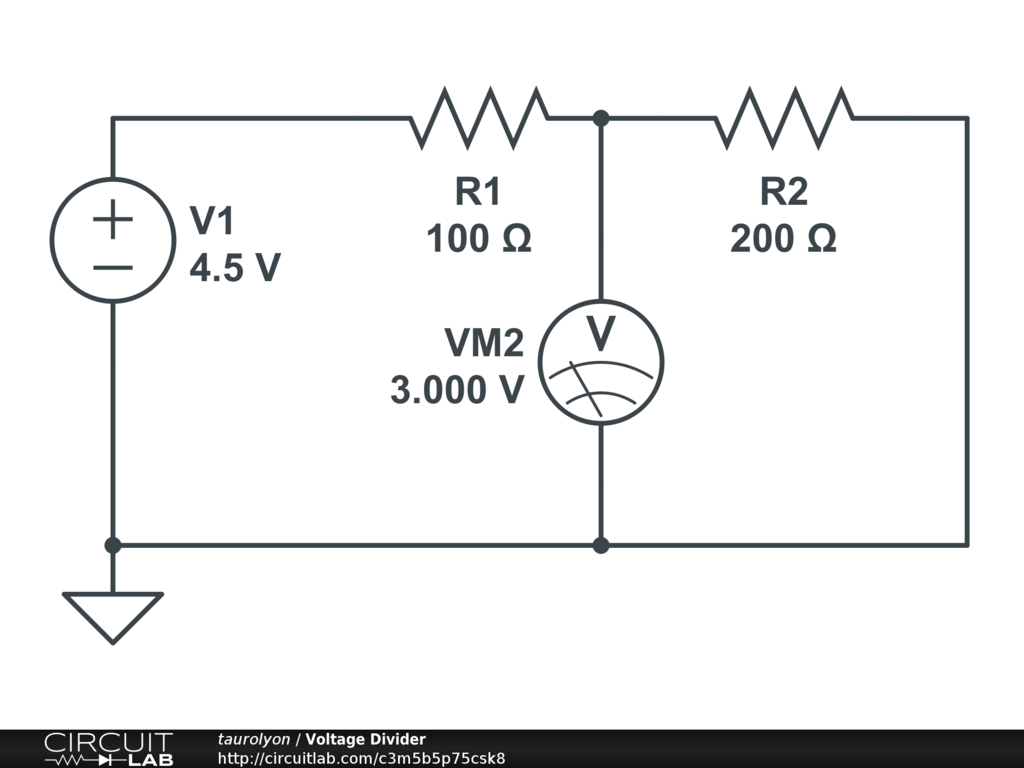

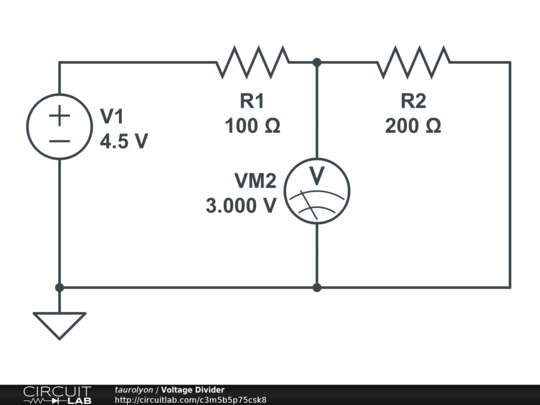

Circuit concept designed for pressure transducer. Transducer outputs 0.5 to 4.5V depending on the input pressure, however if I desired to use this with an arduino/ESP32, the analog inputs are limited to 0-3V.
This circuit enables the function.
Pressure transducer used: https://www.amazon.com/gp/product/B0BM6BHHBW (Not monetized)
