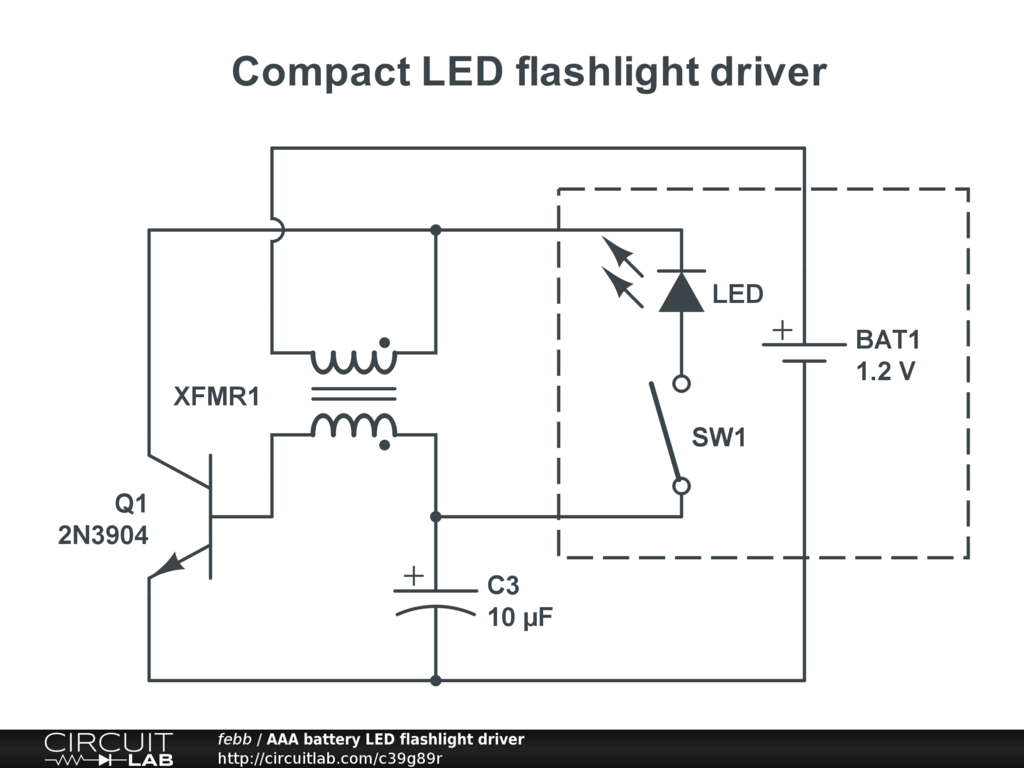

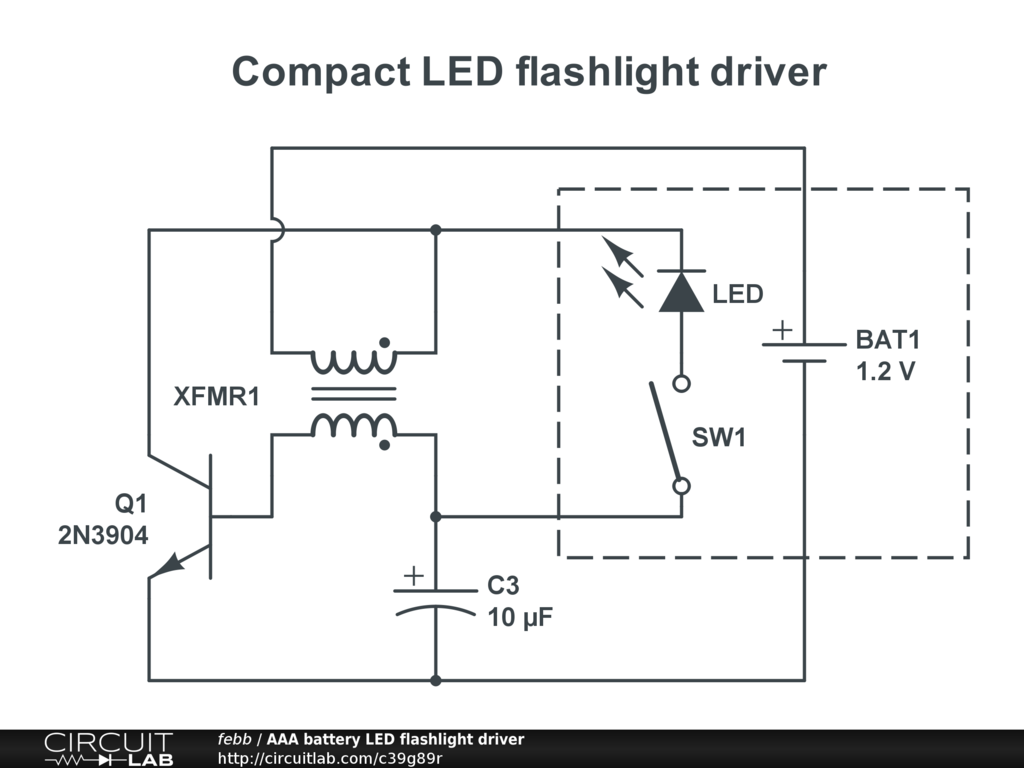

Based on "joule thieft" oscillator circuit starts when load connected and maintains optimal current automatically. Max economy and simplicity. Idle current < 1uA!
