Power-Supply for 75W Slave-Amp PUBLIC

Created by
Created February 04, 2026
Last modified June 30, 2026
Tags power-supply

Summary

Power-Supply for 75W Slave-Amp

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

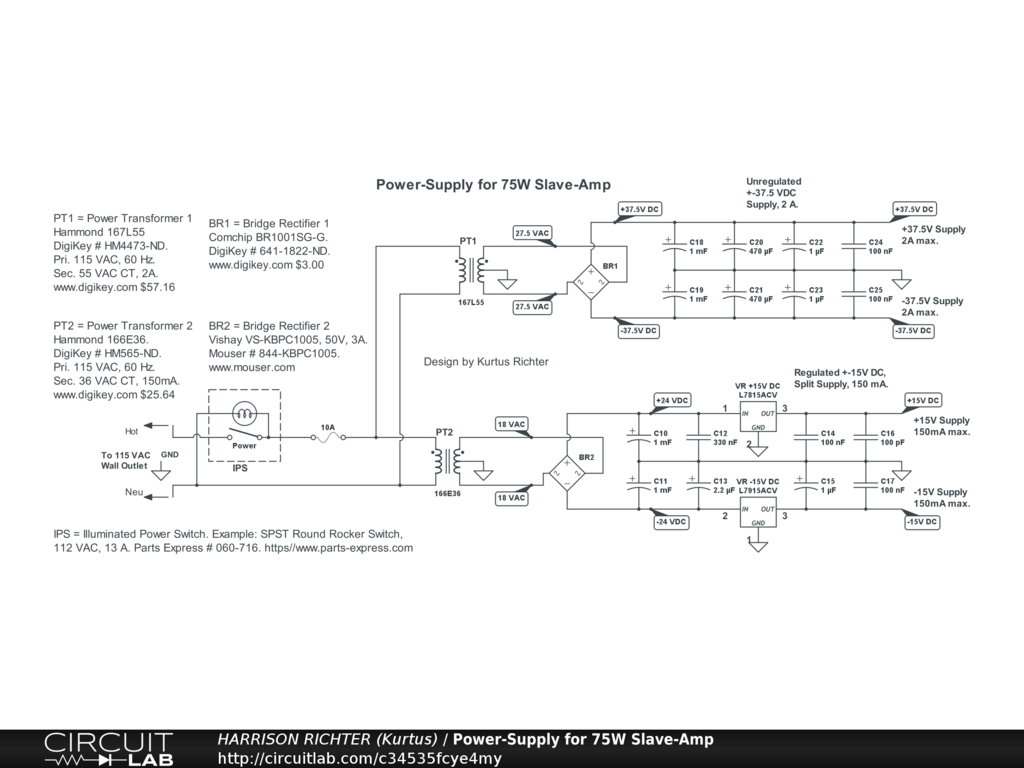

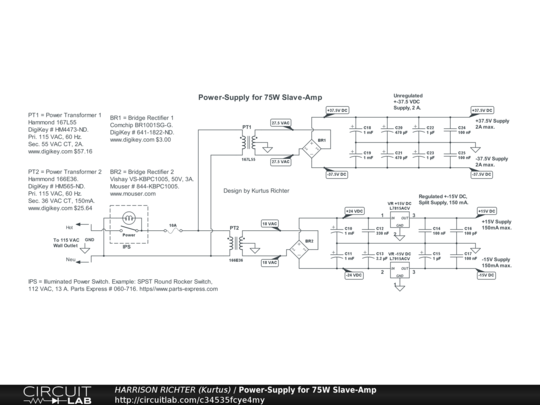

Power-supply for 75W Slave-Amp for guitar. Provides two DC voltages; one regulated dual-polarity +-15VDC @ 150mA for op-amps, and one unregulated dual-polarity +-37.5VDC @ 2A for power-amp IC. Experimental circuitry. Breadboard test before soldering. Shield the transformers from the rest of the circuitry, and house completed project in a grounded metal enclosure.
