CircuitLab supports multiple AC input sources for frequency domain analysis.


In reply to this forum post.

Note: the circuit is poorly formed for analysis -- see this circuit.

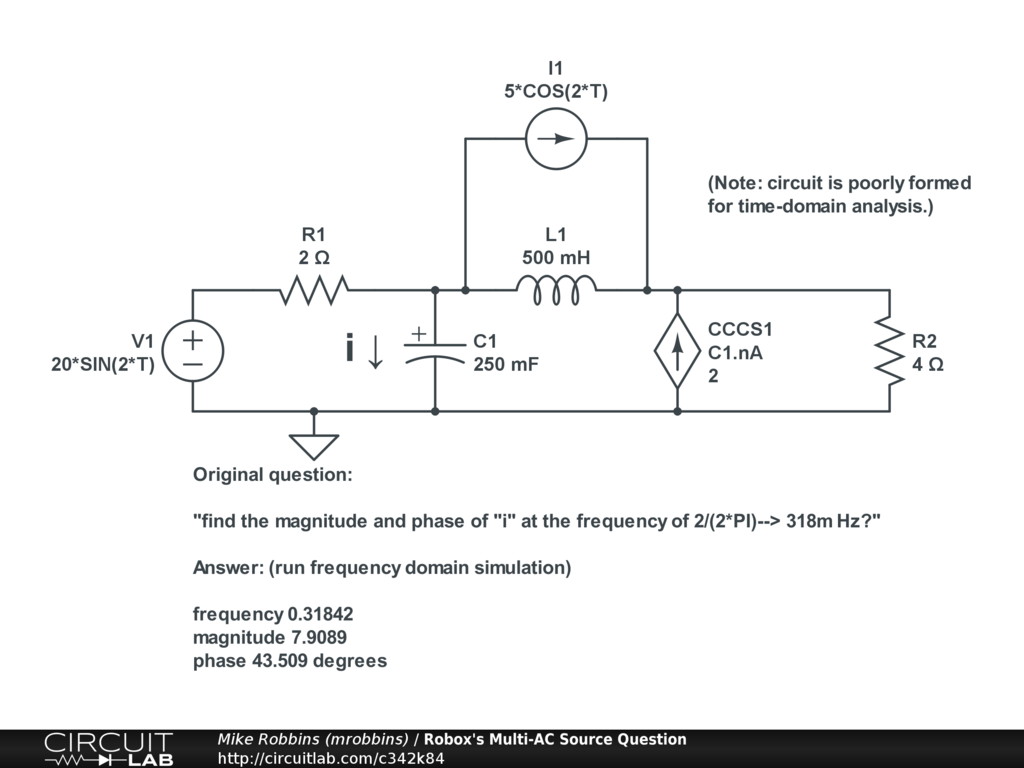

The original circuit presented here:

Robox's original question

Original question:

  • "find the magnitude and phase of "i" at the frequency of 2/(2*PI)--> 318m Hz?"

Answer: (run frequency domain simulation)

  • frequency 0.31842
  • magnitude 7.9089
  • phase 43.509 degrees
