Power-Supply for 25W Guitar-Amp PUBLIC

Created by
Created February 14, 2026
Last modified 1 hour, 28 minutes ago
Tags power-supply

Summary

Power-Supply for 25W Guitar-Amp

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

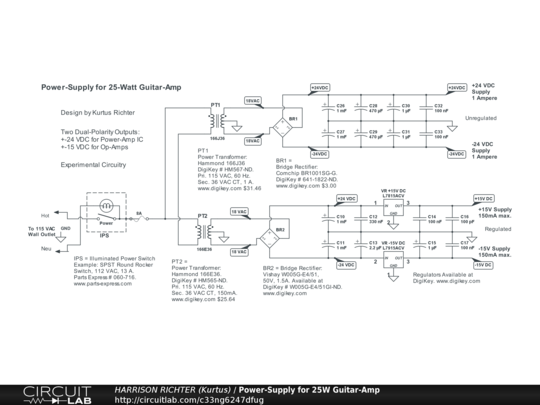

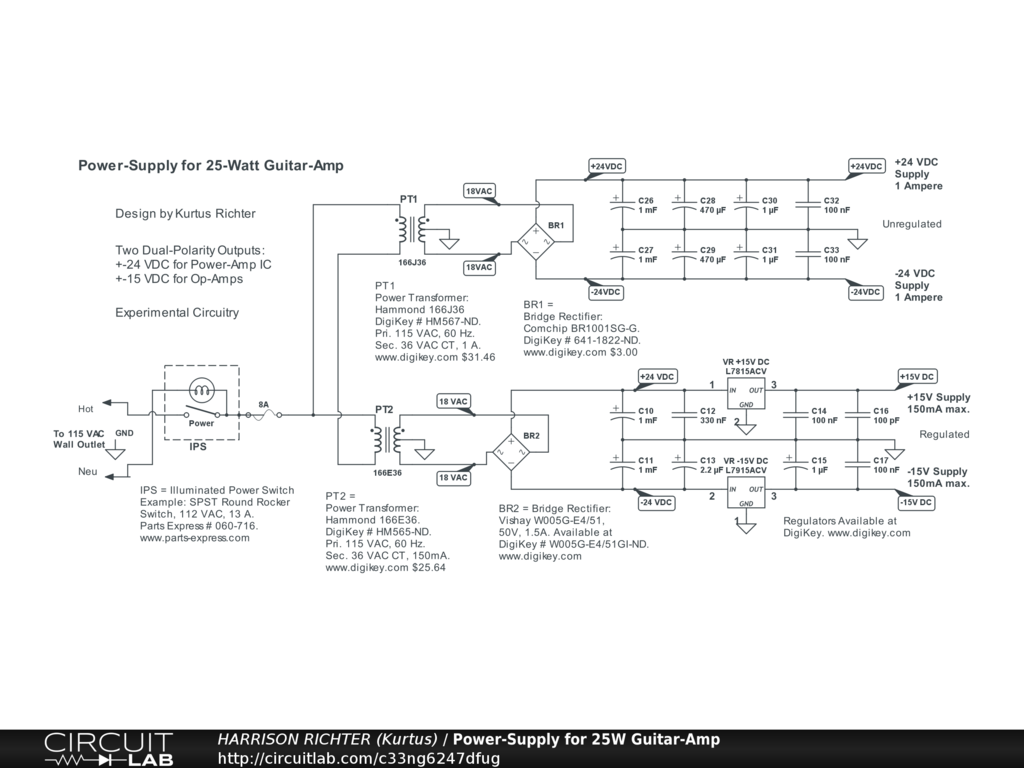

Power-supply for 25W Guitar-Amp. Provides regulated +-15VDC voltage @ 150mA for the op-amps, and unregulated +-24VDC voltages @ 1A for the power-amp IC. And though simulator verified, treat the circuit as experimental. Breadboard test before soldering.
