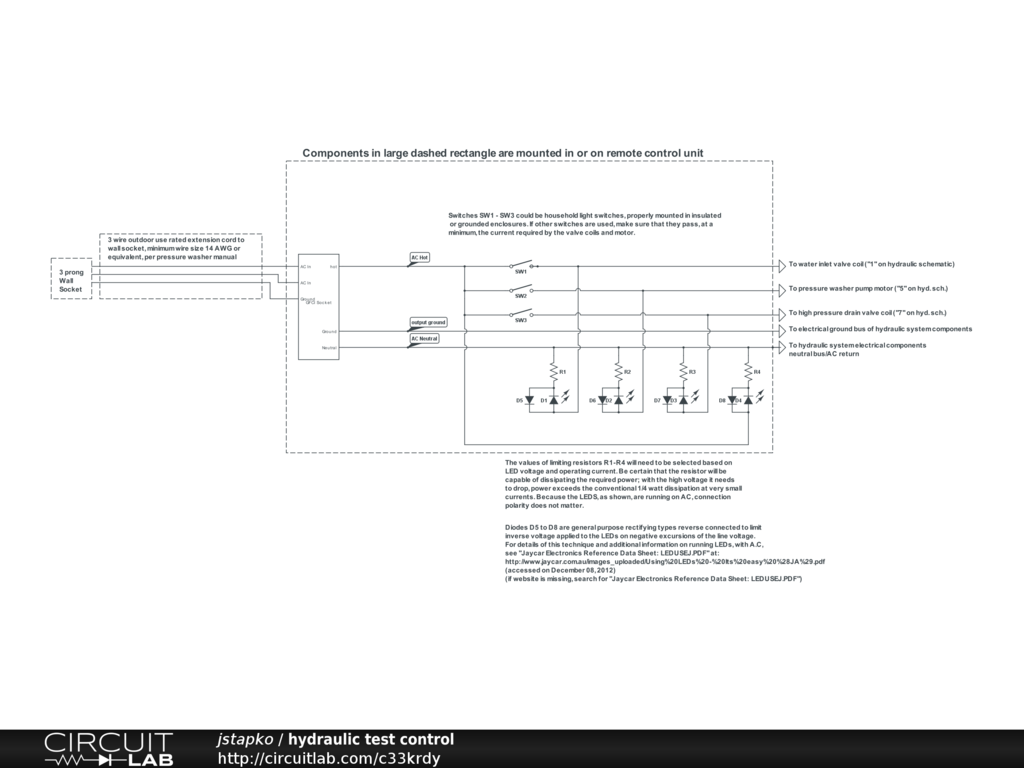

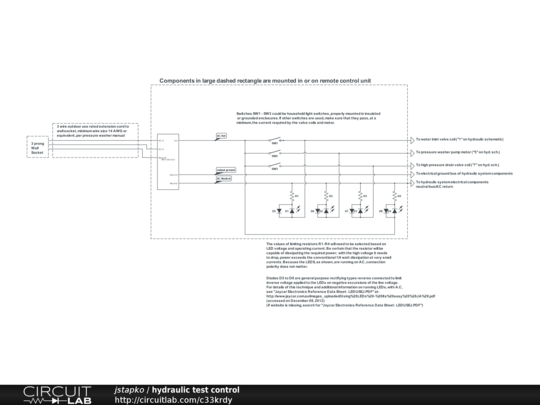

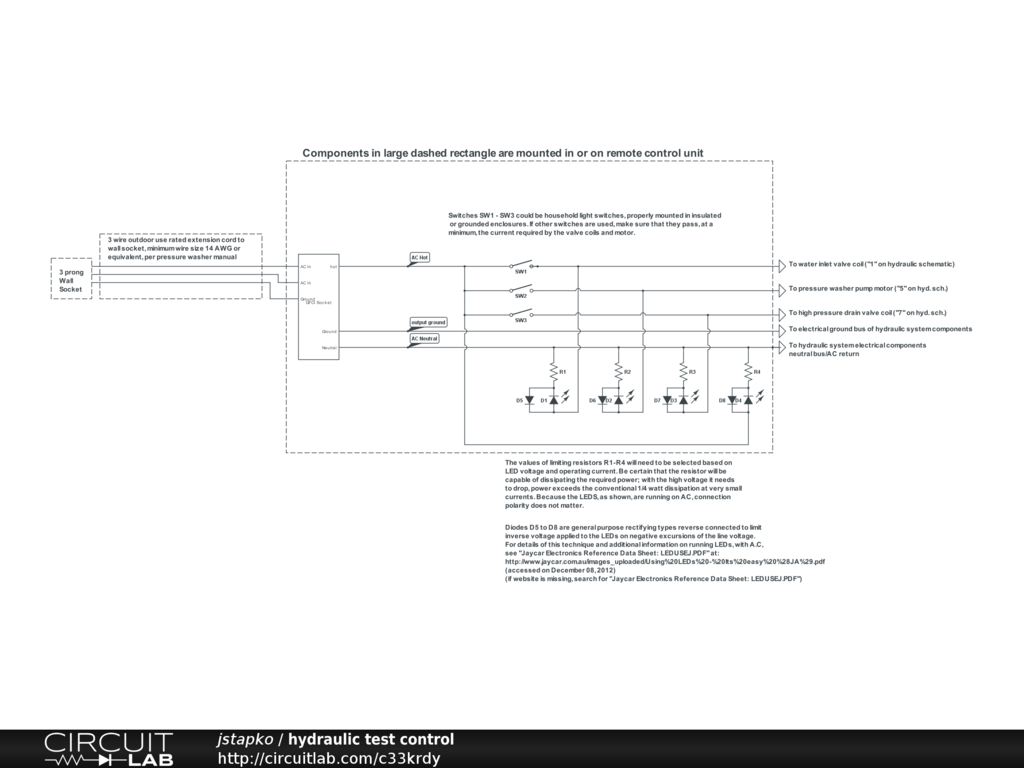

preliminary schematic of an control unit for testing a pressure washer hose. Sw 1 and 3 will control ssolenoid valves, sw2 a pump motor. LED's D1-D3 will show the status of the valves and motor power, and D4 is the power indicator for the unit. This is a preliminary version, finishing edits will be coming soon.
