Summary

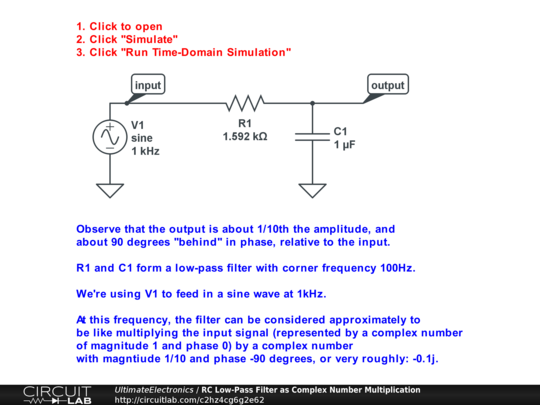

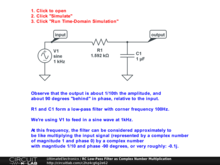

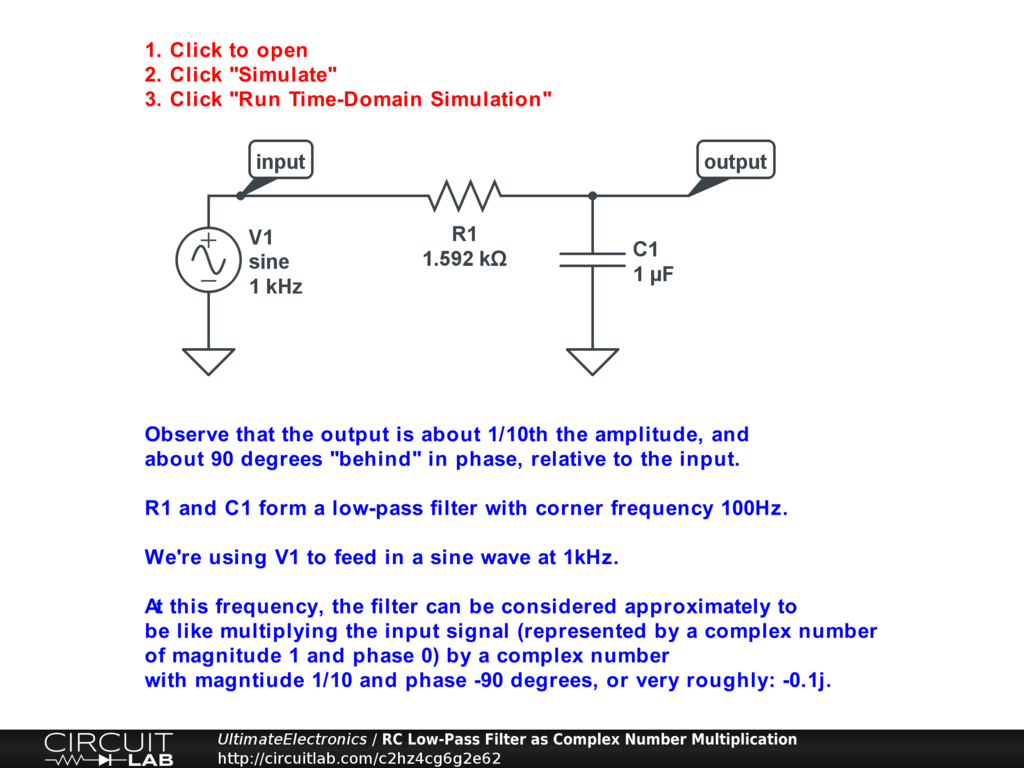

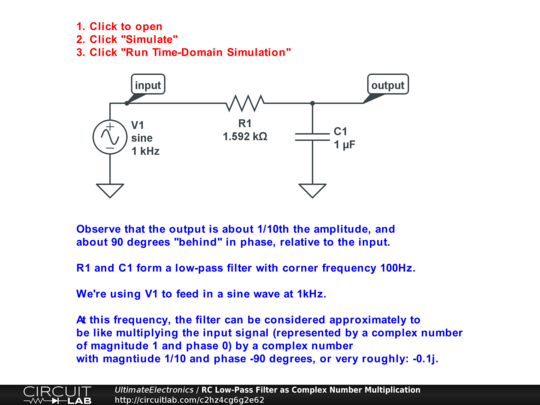

An RC low-pass filter, driven at 10x the corner frequency, produces very roughly 1/10th magnitude and -90 degree phase shift relative to the input. This is like multiplying the phasor by the complex number -0.1j.


Description

This example is from the Complex Numbers chapter of Ultimate Electronics Book. It demonstrates a change in amplitude and phase through an RC lowpass filter, and in the book, we explain how this relates to a complex number multiplication.
