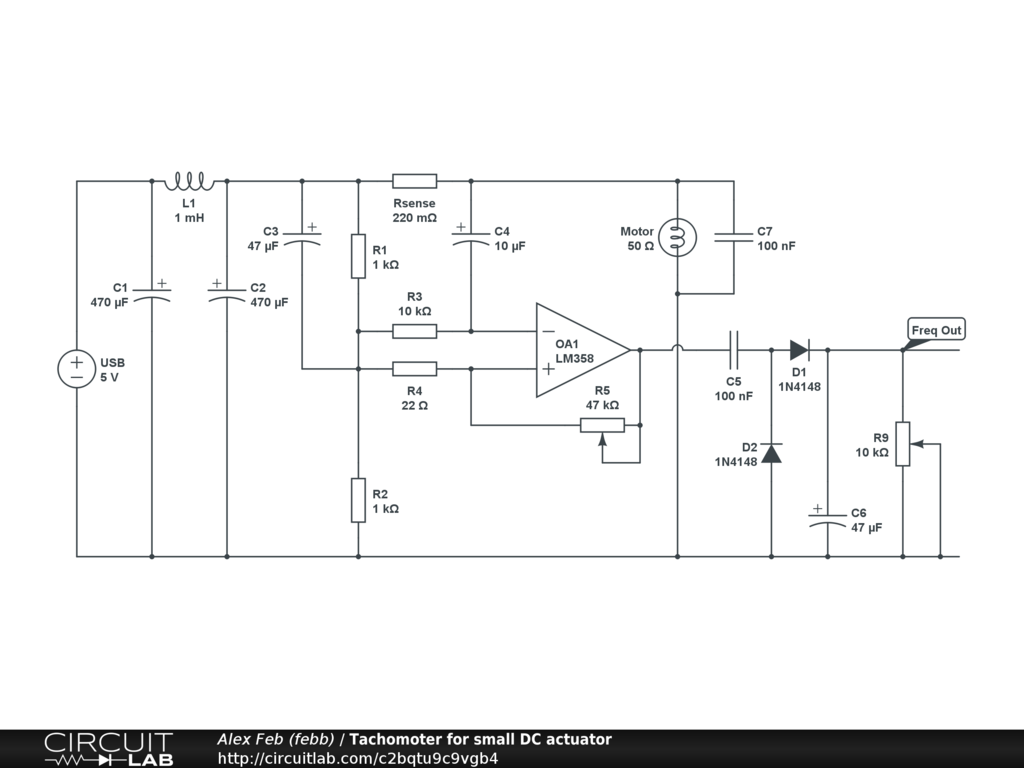

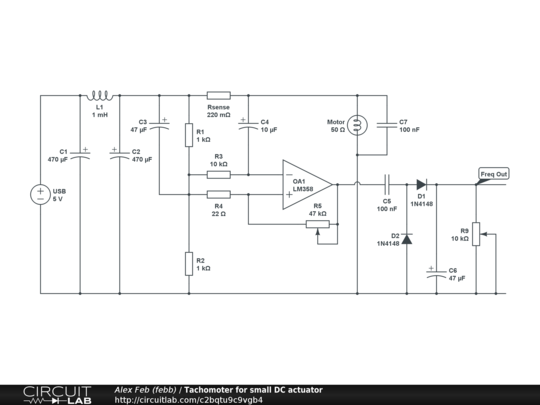

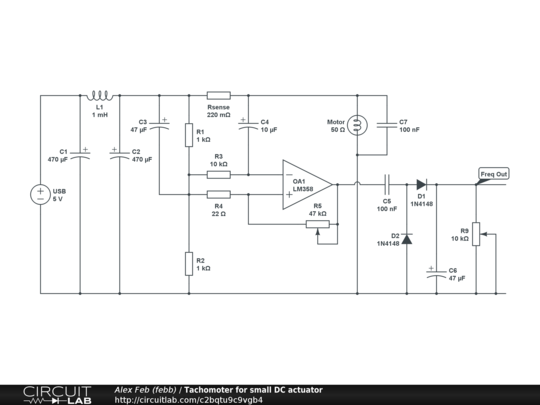

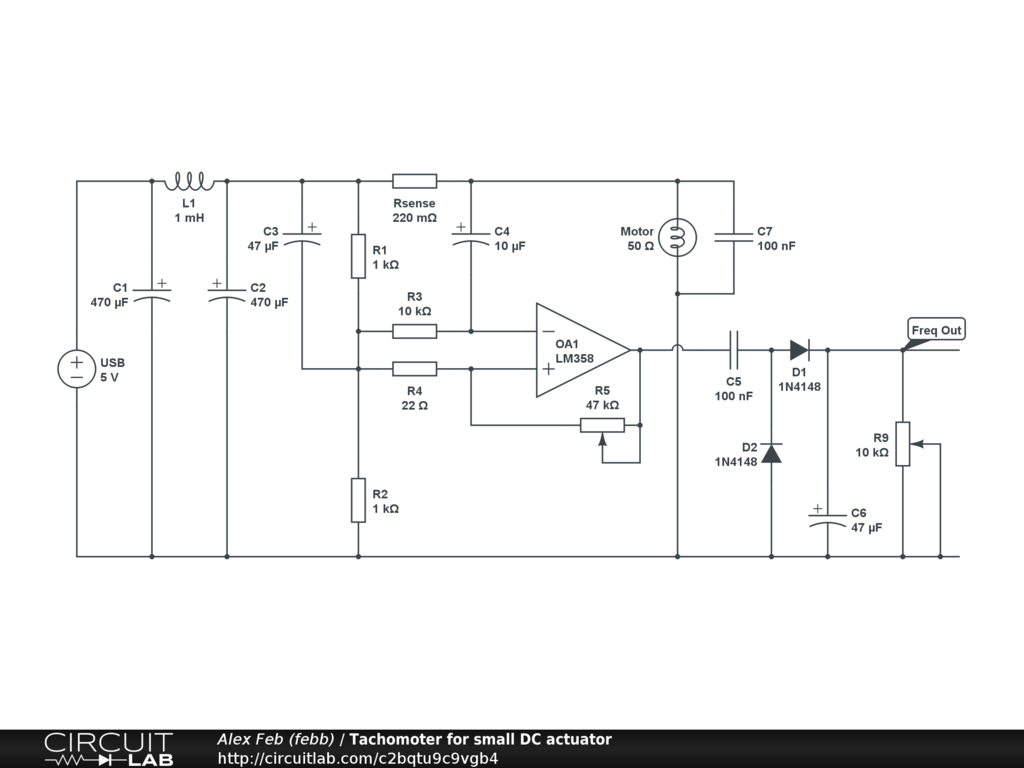

Tachometer for small DC actuator

OP AMP creates shmodt trigger to catch current pulses from brushed DC motor. Then pulses converted to frequency dependent voltage output.
