Power-Supply for Tubulation Circuit PUBLIC

Created by
Created August 11, 2025
Last modified July 01, 2026
Tags 12v-supply

Summary

Power-Supply for "Tubulation" Circuit.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

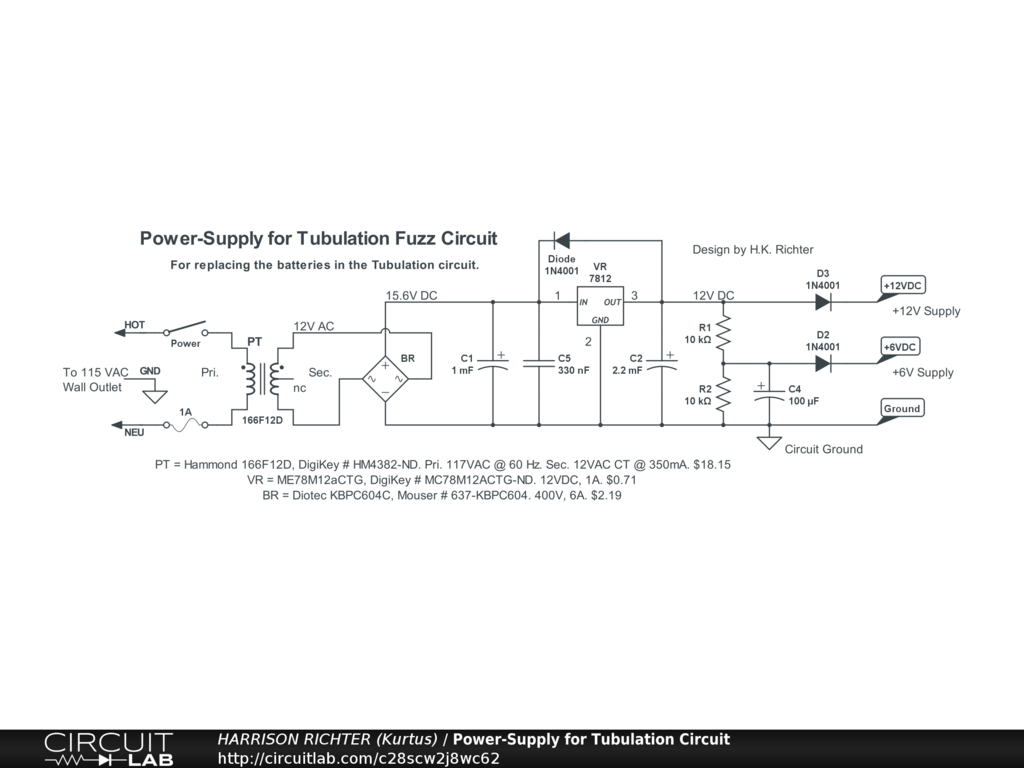

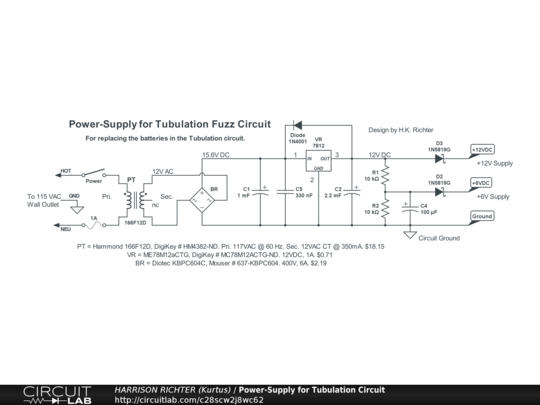

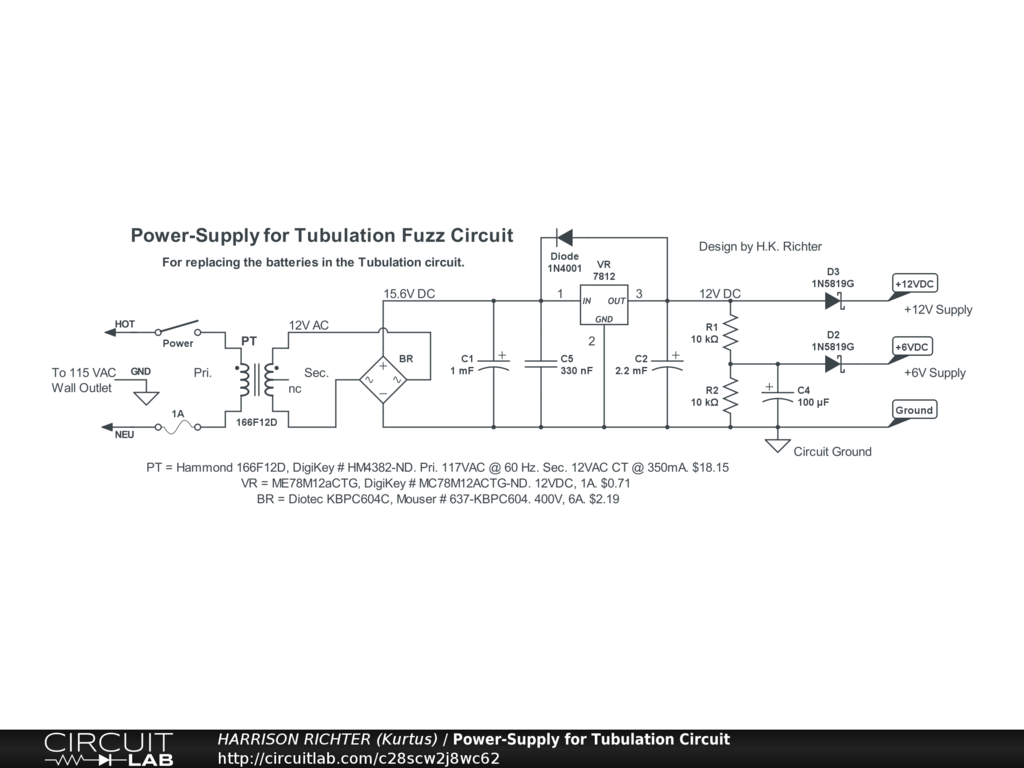

Power-Supply for Tubulation Circuit. Regulated power-supply providing +12V DC and +6V DC with current capability up to 350 mA. Purpose-designed for replacing the batteries in the Tubulation circuit.

Comments

No comments yet. Be the first!

Leave a Comment

Please sign in or create an account to comment.

Revision History

Only the circuit's creator can access stored revision history.
