Two +-15VDC Power-Supply Circuits: 150mA and 300mA

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

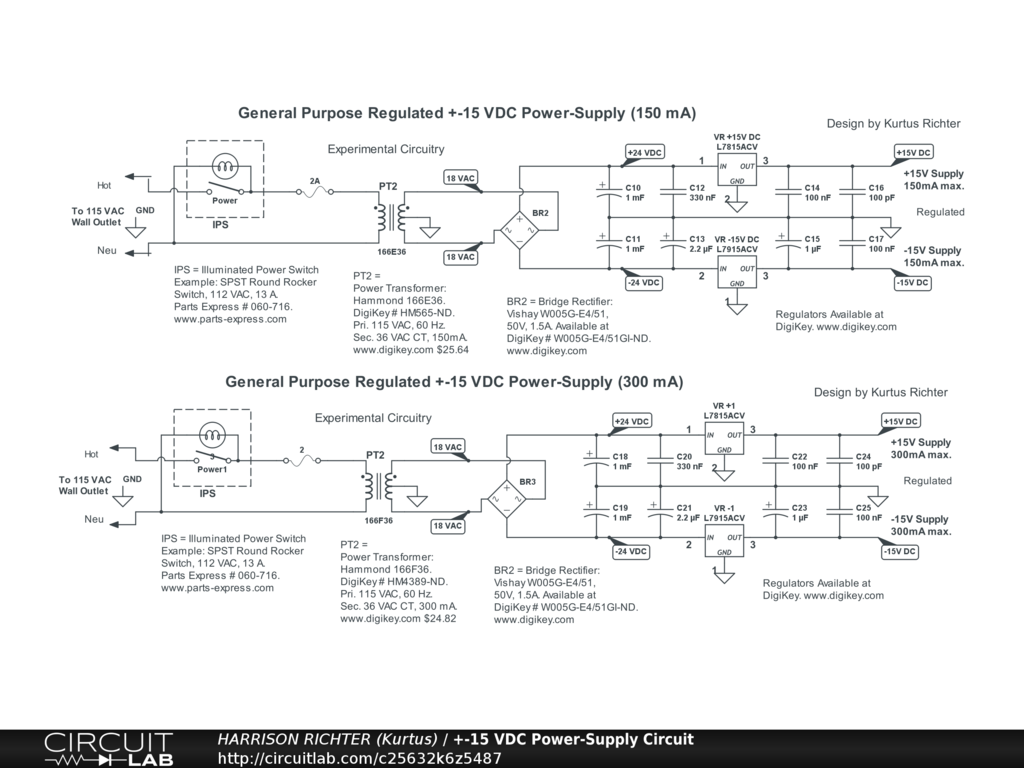

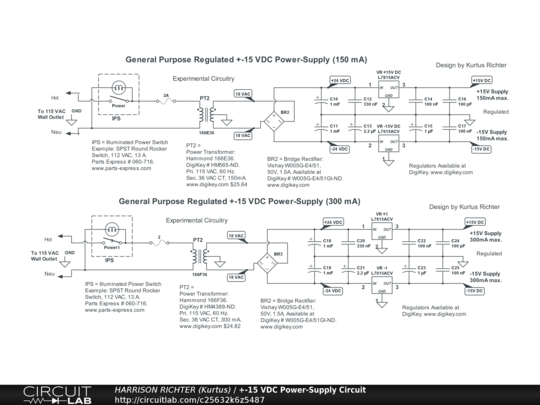

Two regulated dual-polarity +-15VDC power-supplies: one @ 150mA and one @ 300mA.
