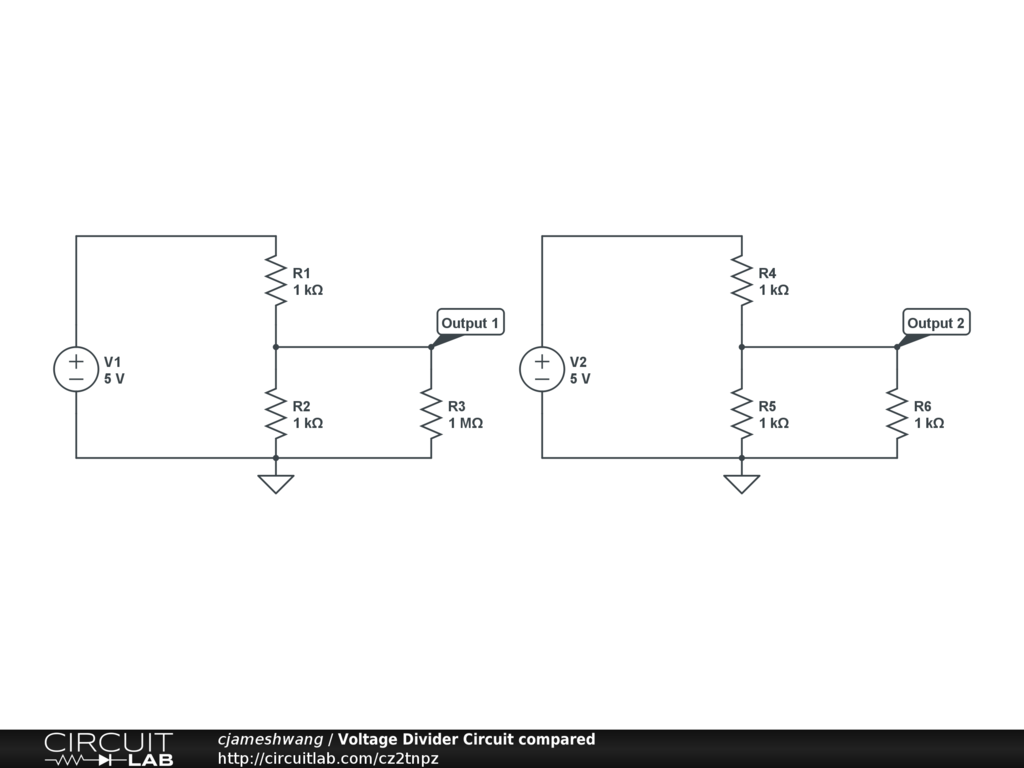

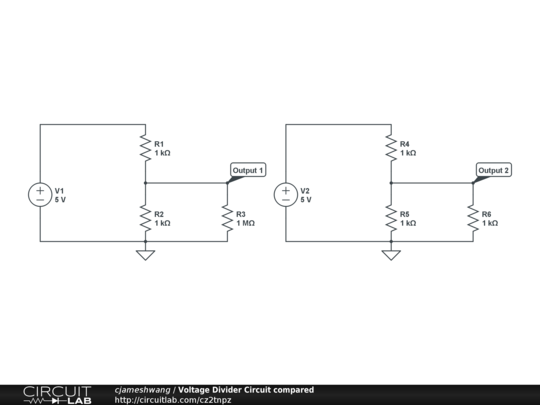

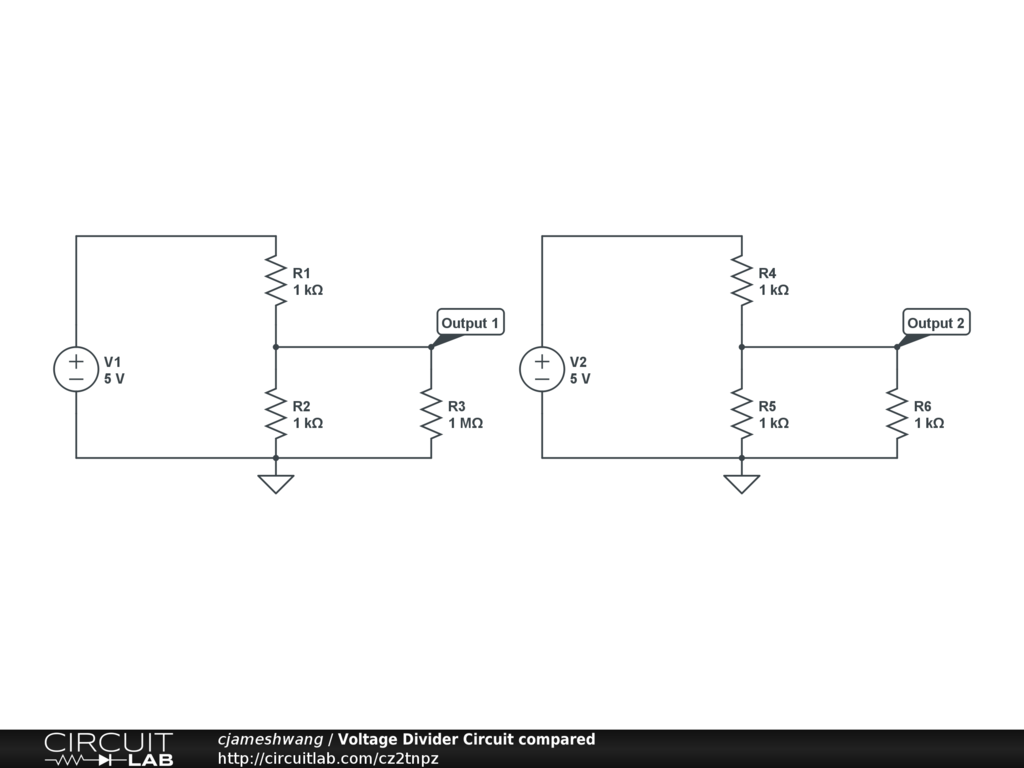

Output 1 = 5V x(( 1K//1M) / (1K+1K//1M)) = 5 X (.999/ 1.999) = 2.5 V - very lightly loaded
Output 2= 5V x ((1K//1K) / (1K+1K//1K)) = 5 X (500/1500) = 1.66 V - heavily loaded; Output 2= 5V x ((1K//1K) / (1K+1K//1K)) = 5 X (500/1500) = 1.66 V - heavily loaded
Output 1 = 5V x(( 1K//1M) / (1K+1K//1M)) = 5 X (.999/ 1.999) = 2.5 V - very lightly loaded
Output 2= 5V x ((1K//1K) / (1K+1K//1K)) = 5 X (500/1500) = 1.66 V - heavily loaded
