Description

The Analysis & Design of Linear Circuits

Thomas, Rosa & Toussant

Chapter 3 - Exercise 5

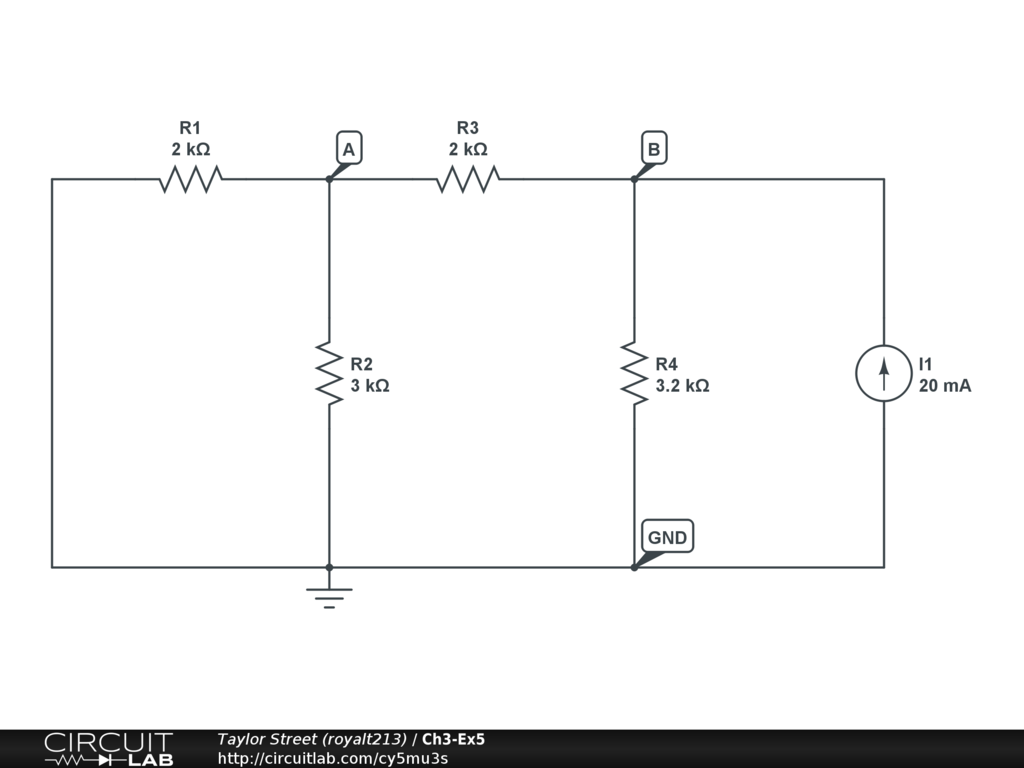

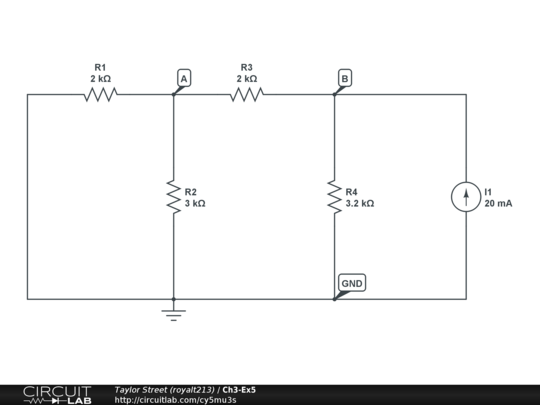

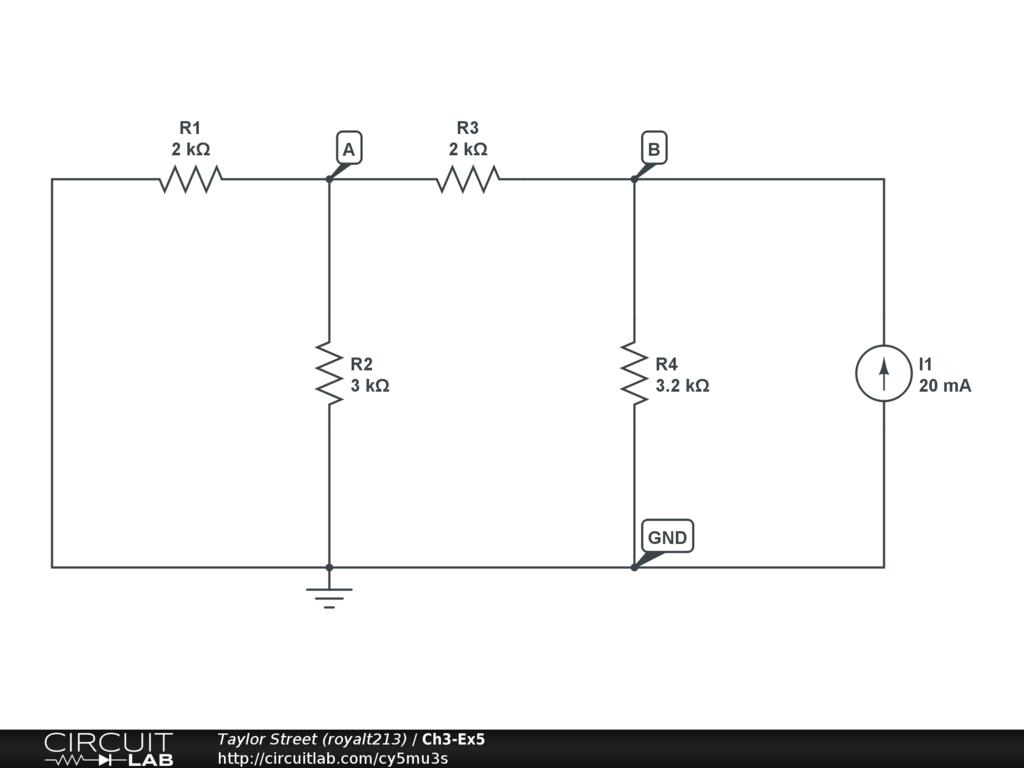

Use node-voltage equations to solve for v1, v2, and i3 in Figure 3-10.

V1 = 12V

V2 = 32V

I3 = -10 mA

Circuit by @royalt213
