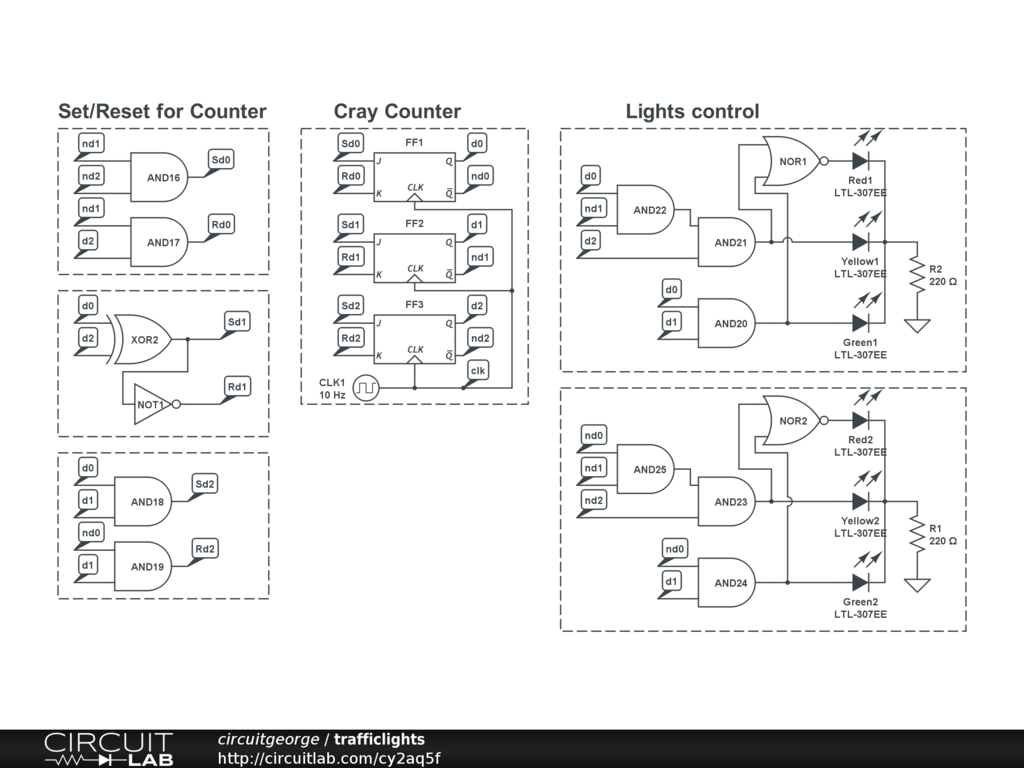

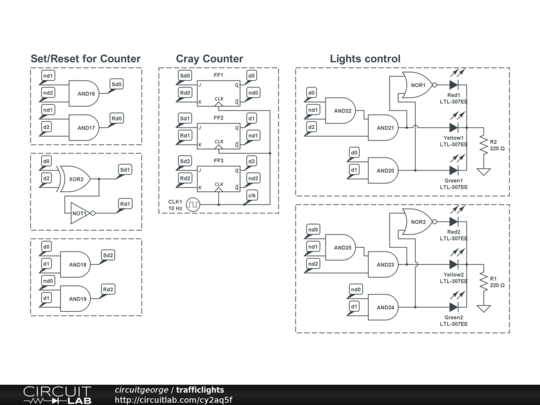

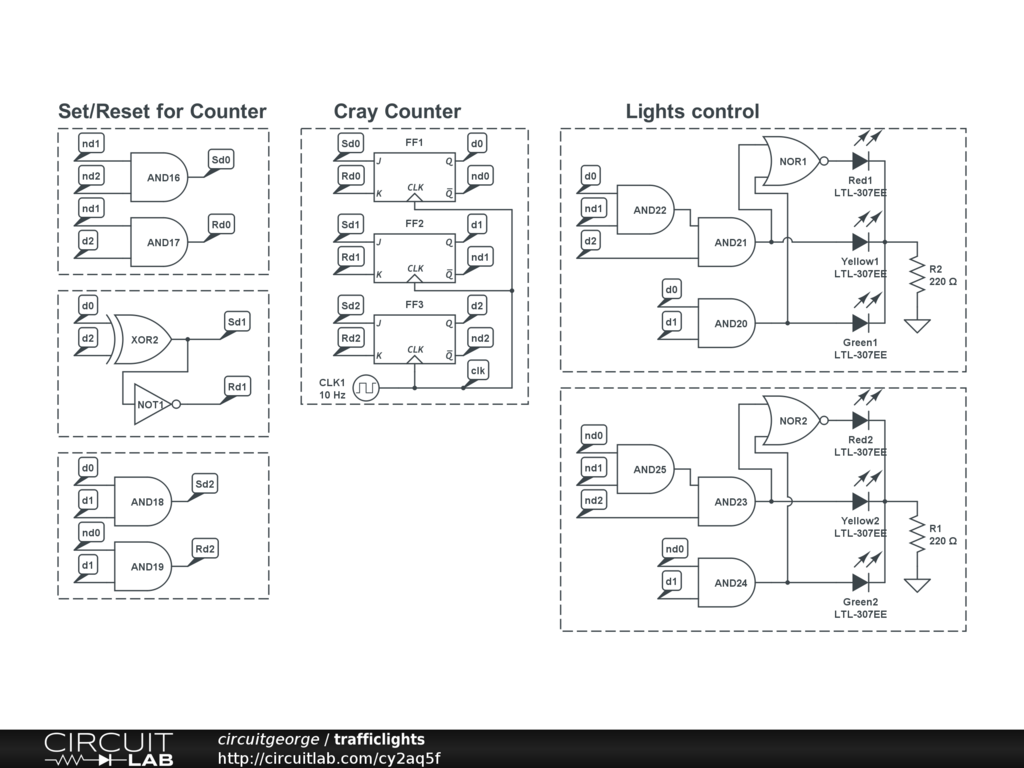

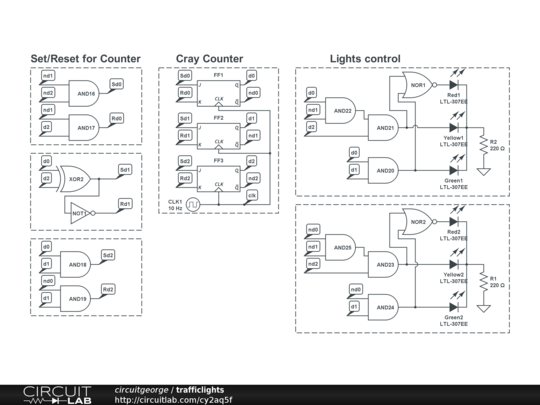

Simple traffic light for use in e.g. model building.
Uses a Cray counter with set/reset conditions to go through Karnaugh state diagram enforcing singular transitions. Lights are determined from counter state.
