Inversor PUBLIC

Created by
Created June 13, 2014
Last modified November 11, 2014
Tags No tags.

Summary

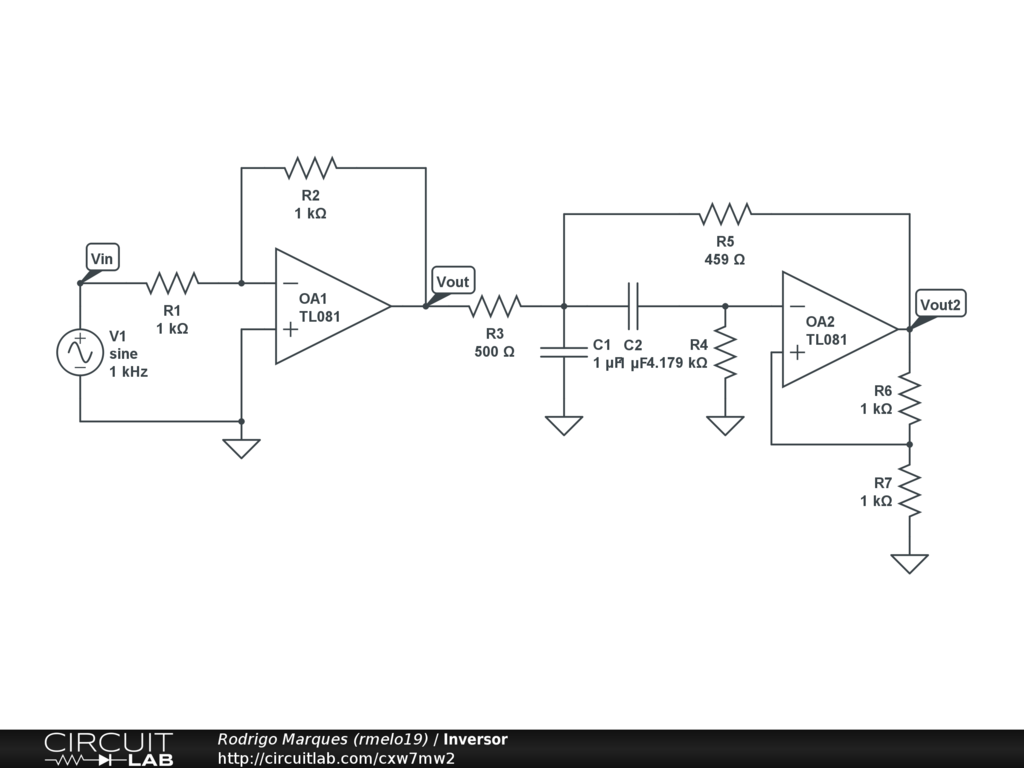

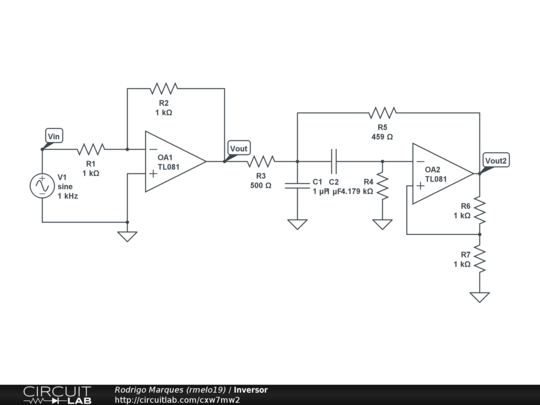

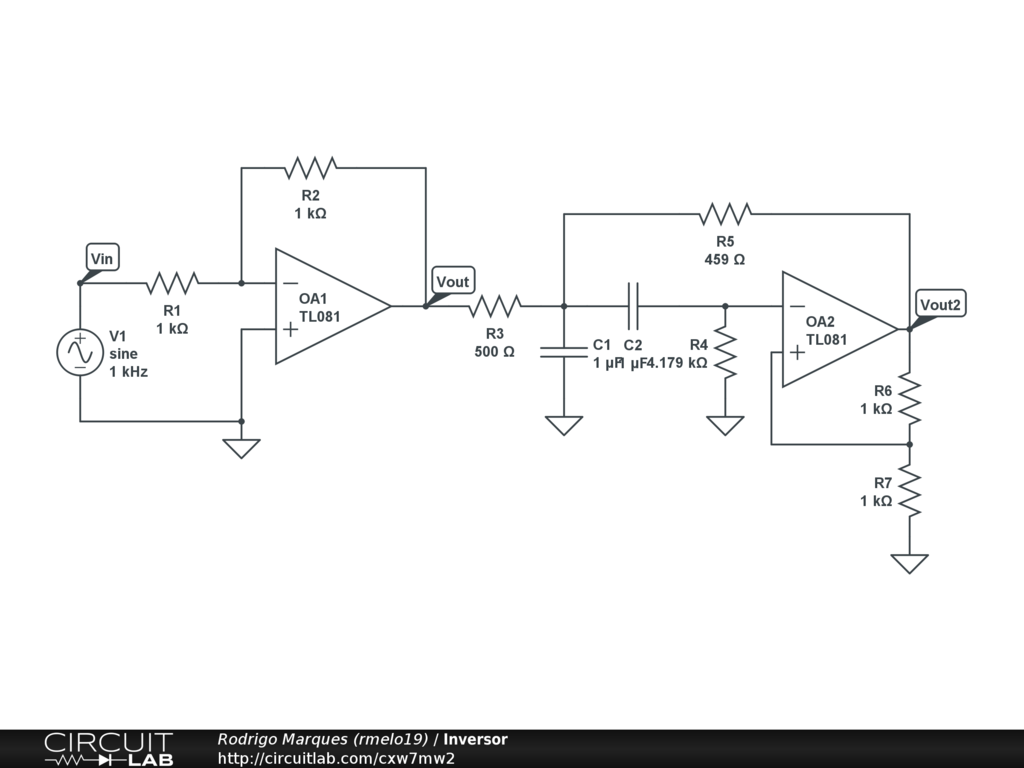

Circuito inversor simples. Vout = -(R2/R1)*Vin
