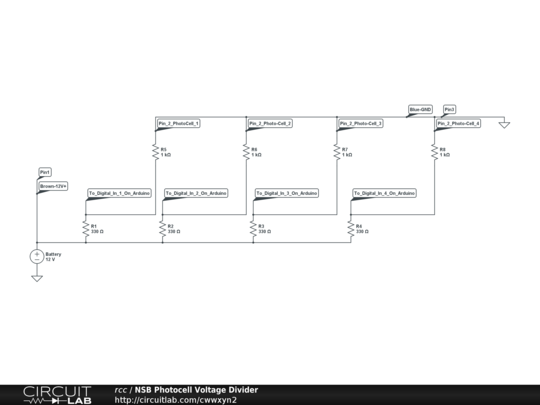

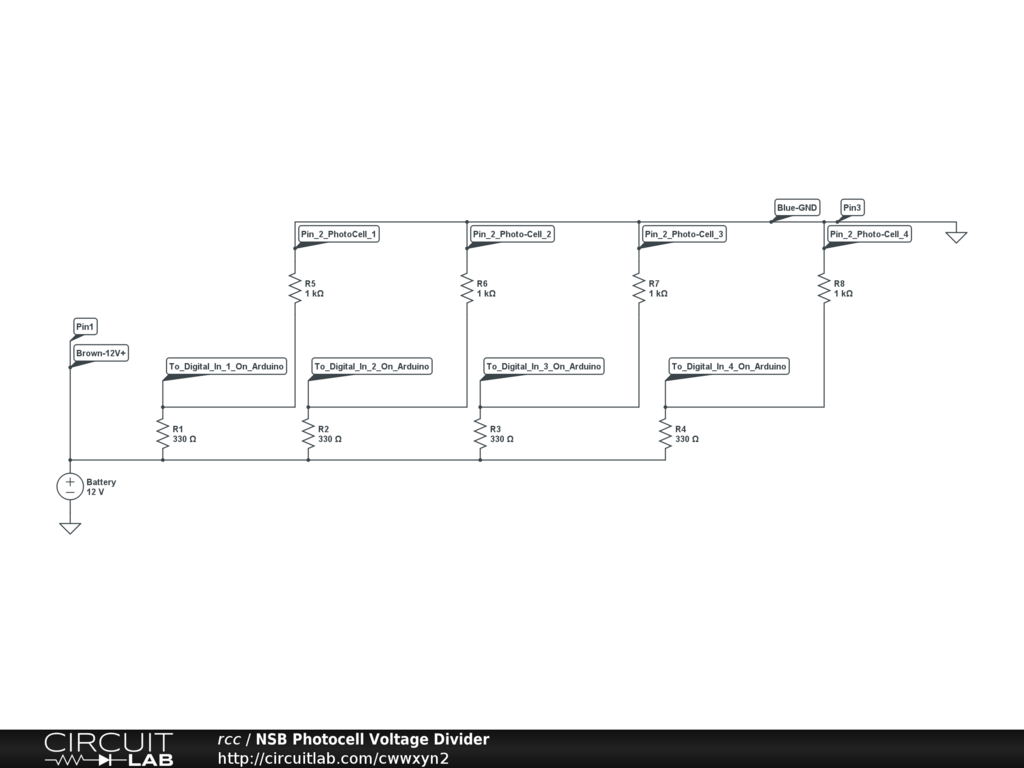

NSB Photocell Voltage Divider

A circuit to interface the Banner Photocells, which operate at 12V, to the Arduino inputs, which have a suggested digital input of 9V.
