This is the first circuit I've ever made. Feedback appreciated!!!

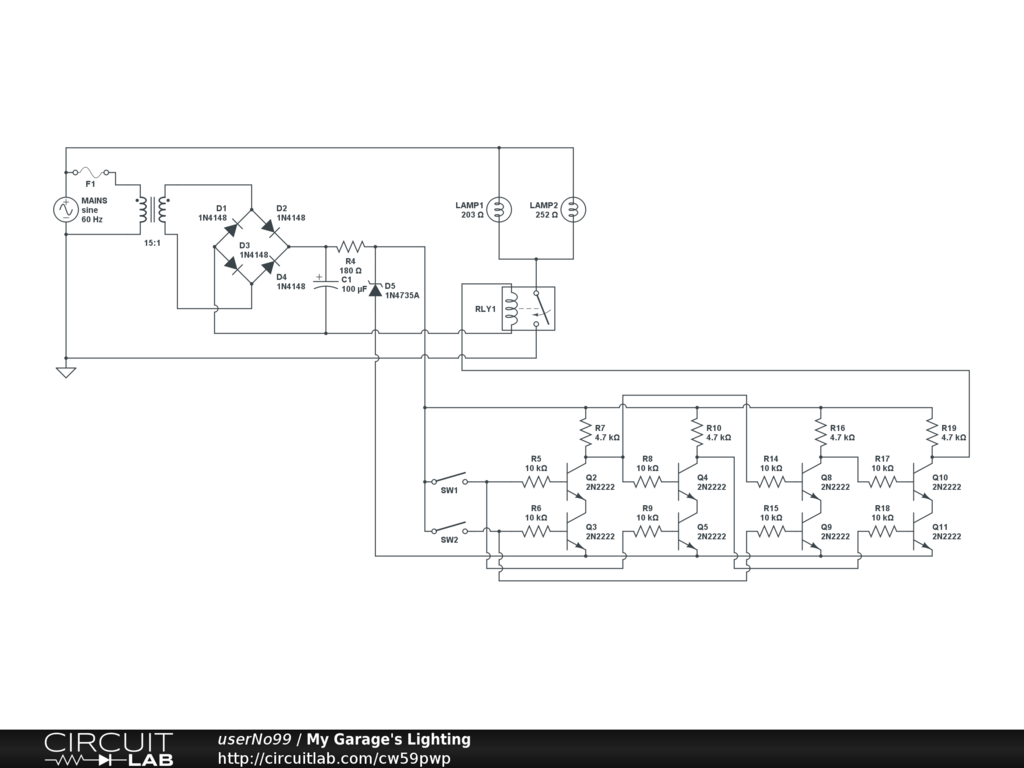

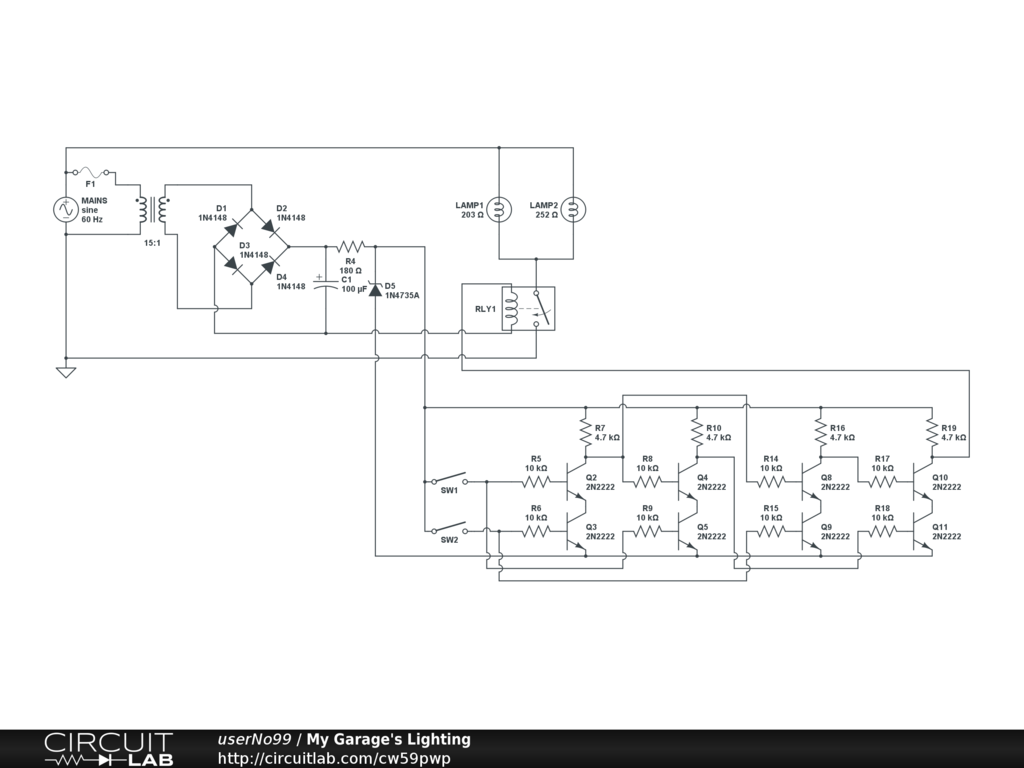

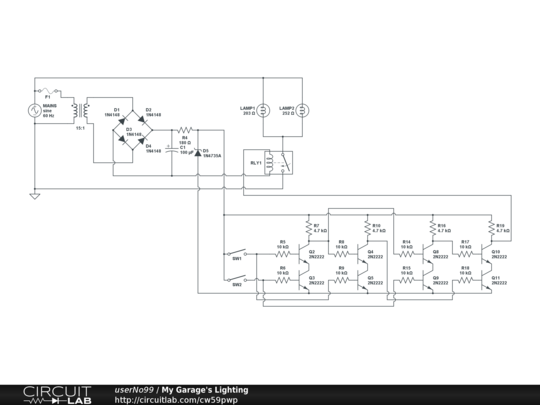

I'm not sure if this is how my garage is wired, but my design is functionally equivalent. A small amount of power is diverted through a power converter to supply power to the XOR transistor gate and relay. In effect, whenever one of the two switches is thrown, the relay throws resulting in the lights either turning on or off.
