Time Delay Circuit

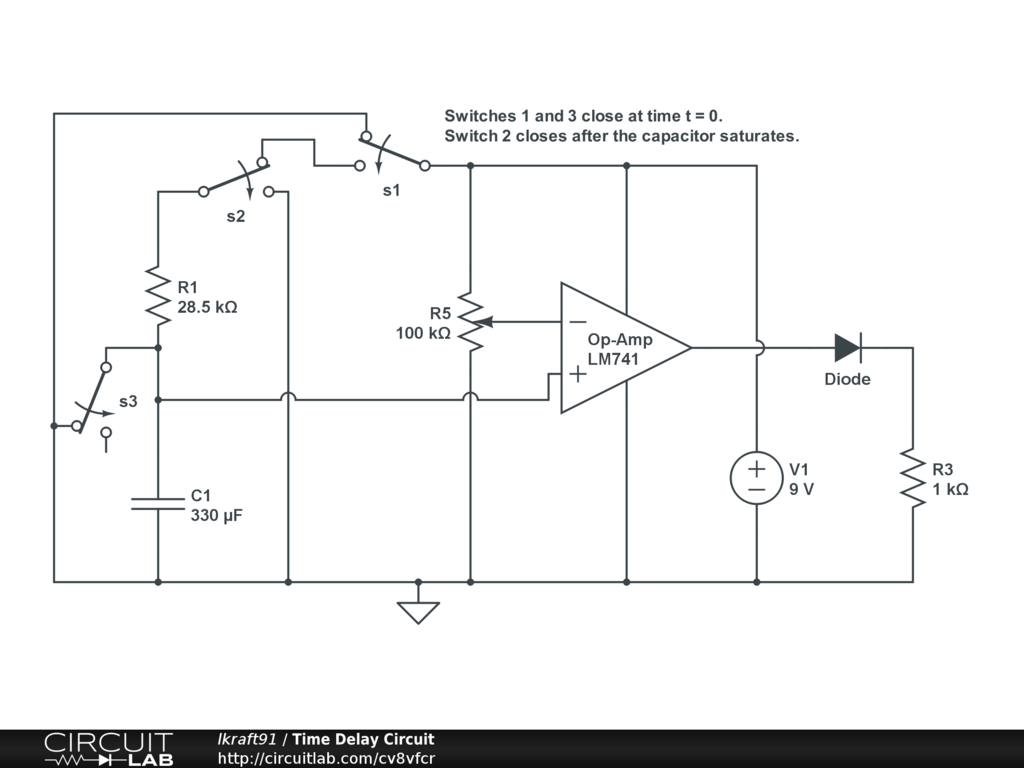

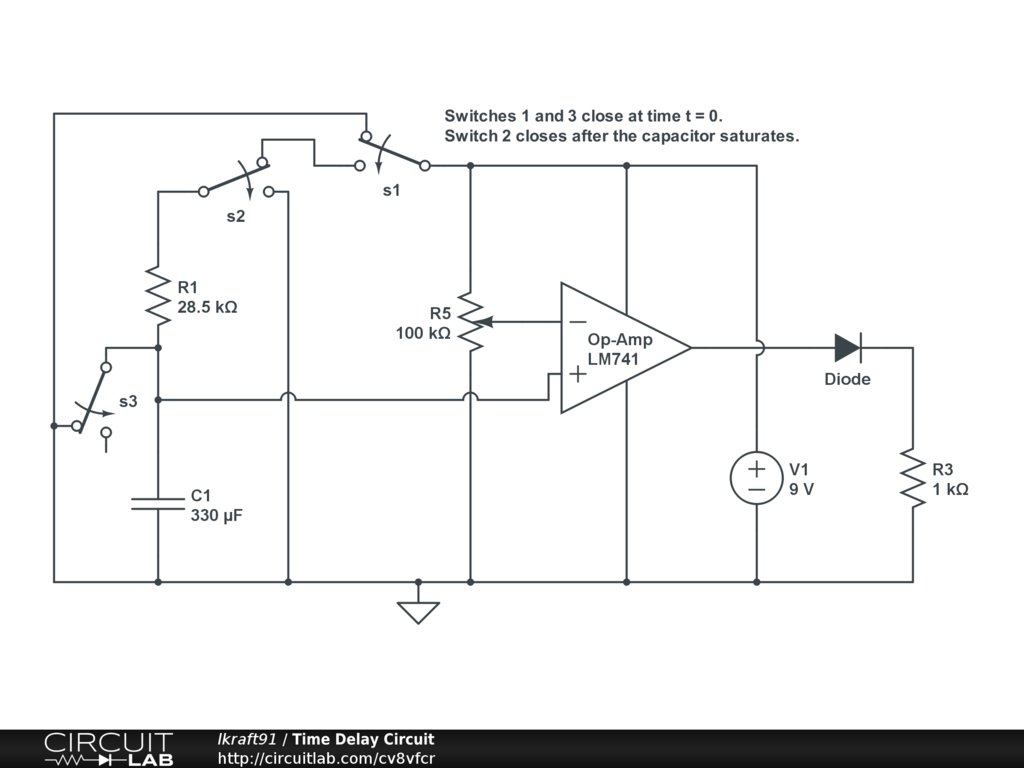

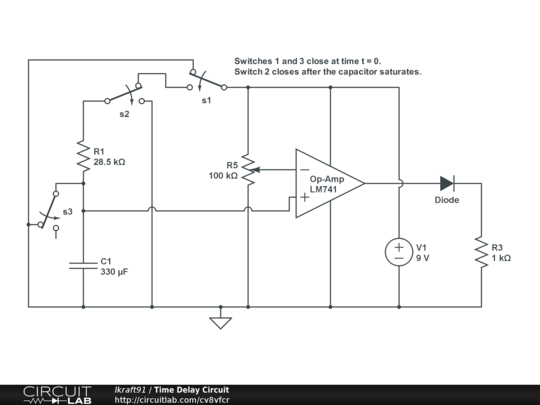

Time-delay circuit with comparator and RC elements.

Spec:

V_out = Vcc+ after ten seconds of charging (from zero charge)

V_out = 0 after four seconds of discharge (from saturated charge)
