Supply for Hex-Amp System PUBLIC

Created by
Created 1 day, 8 hours ago
Last modified 14 hours, 48 minutes ago
Tags hex-amp

Summary

Power-Supply for Hex-Amp System

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

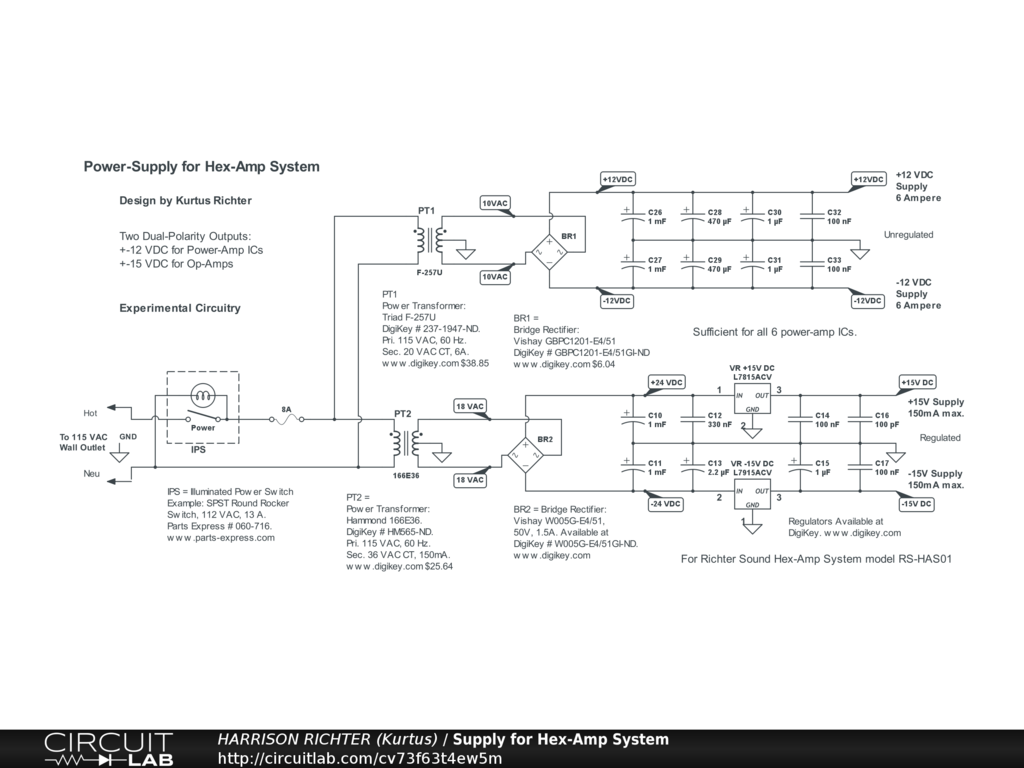

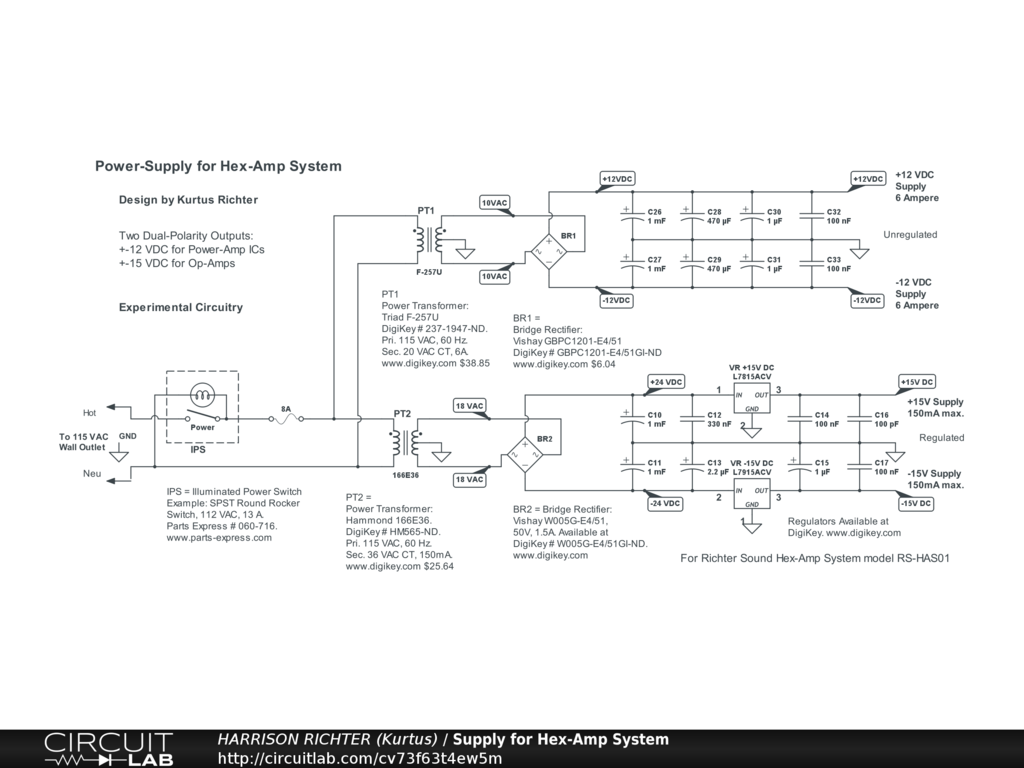

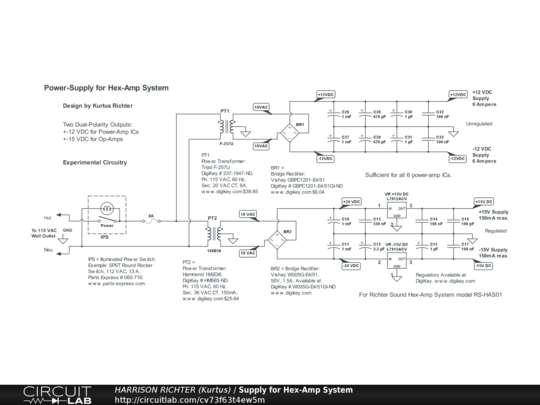

Power-supply for Hex-Amp System. Provides unregulated dual-polarity +-12 VDC @ 6A for power-amps, and a regulated dual-polarity +-15 VDC @ 150 mA for op-amps. Experimental Circuitry! Fully breadboard test before committing to a soldered build.
