RO-Series Preamp 1: Clean Boost PUBLIC

Richter Original Series, Preamp 1: Clean Boost.

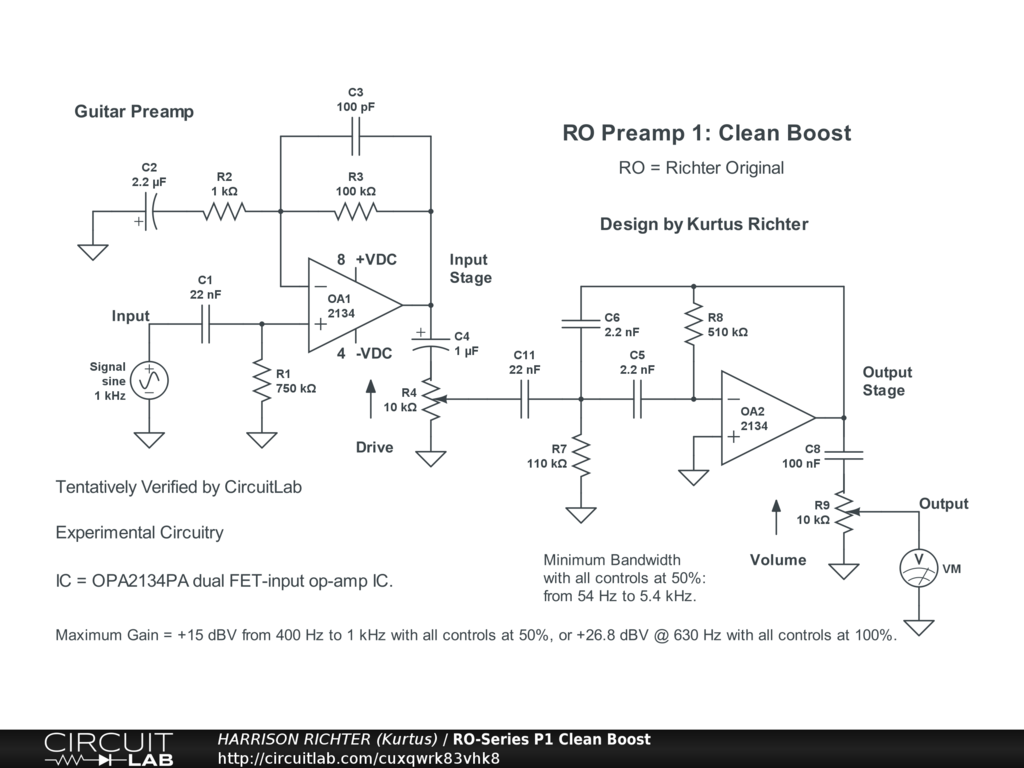

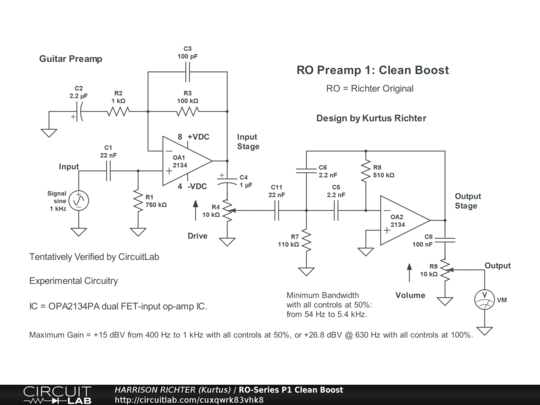

Richter Original Series, Preamp 1: Clean Boost. Controls Include: Drive and Volume. Range at or above 0 dBV with all controls at 50% is from 54 Hz to 5.4 kHz, or 35 Hz to 63 kHz with all controls at 100%. Maximum gain with all controls at 50% is +15 dBV (Vo/Vi = 5.6) from 400 Hz to 1 kHz, or +26.8 dBV (Vo/Vi = 22) @ 630 Hz with all controls at 100%. Designed for 6/7-string electric guitar in standard tuning. [Not recommended for 8-string guitars or bass-guitars.] Power-supply not shown. Requires a regulated dual-polarity DC supply providing +-9VDC or +-12VDC or +-15VDC at >= 20 mA of current. And while simulator verified, treat the circuit as experimental. Breadboard test before committing to a soldered build.
