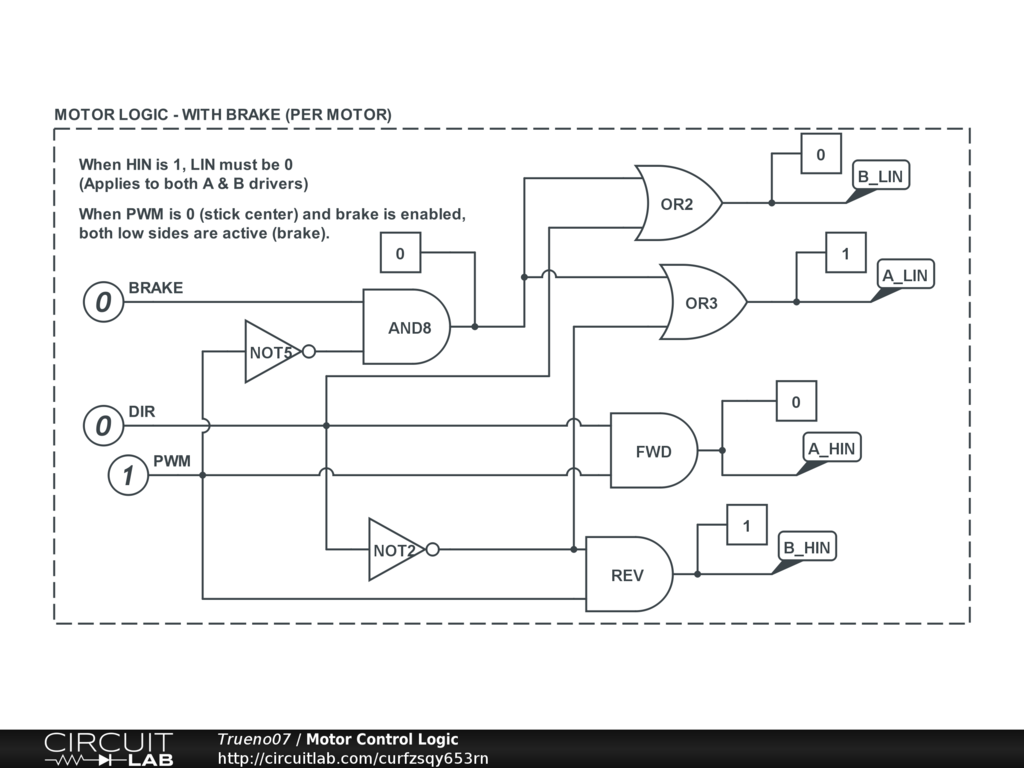

H-Bridge Driver Control Logic PWM = A bit used to mock a PWM signal. DIR = Controls motor direction AND gates as well as correctly sets low side inputs on the driver. BRAKE = Overrides the low side of the drivers when PWM goes to 0, causing the motors to brake. When 0, motors will coast normally.
