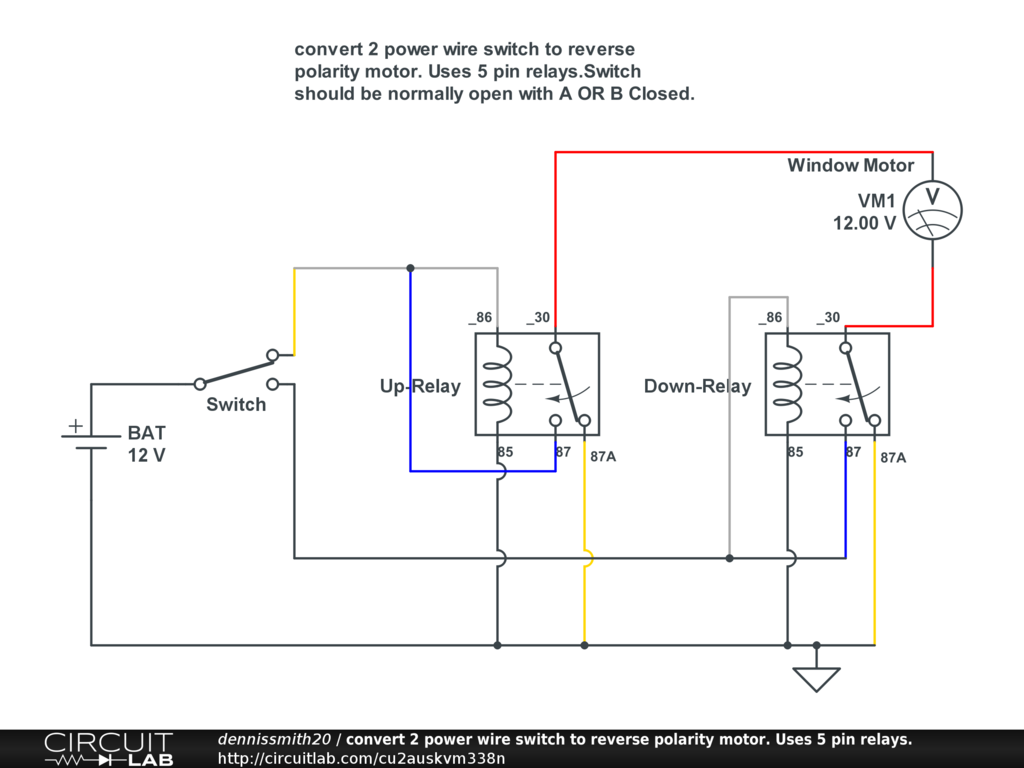

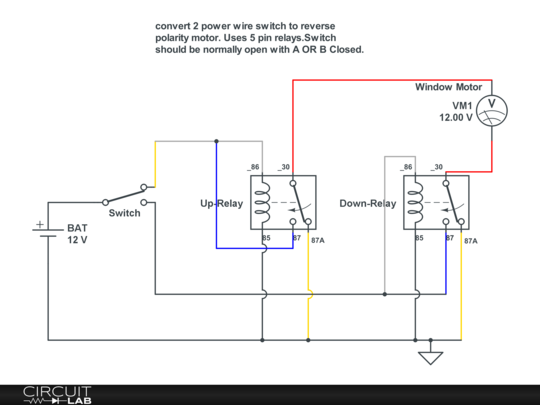

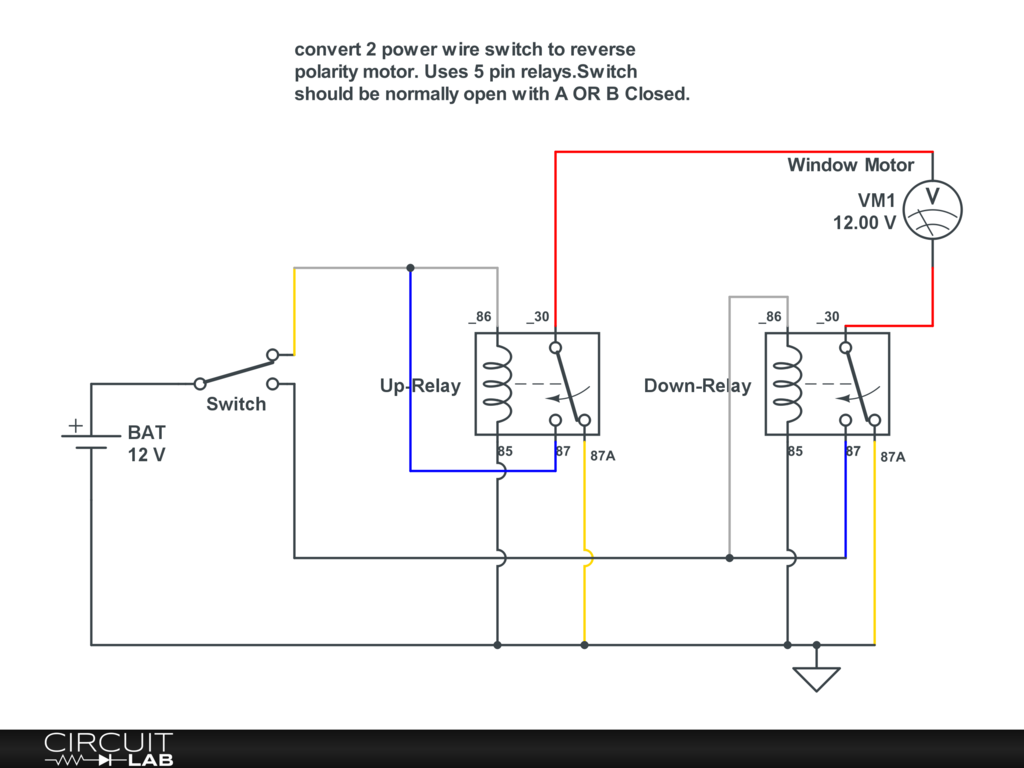

convert 2 power wire switch to reverse polarity motor. Uses 5 pin relays.

Not provided.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Allows the use of a reverse polarity window motor on a 3 wire window switch that normally has 1 up power lead and 1 down power lead.
