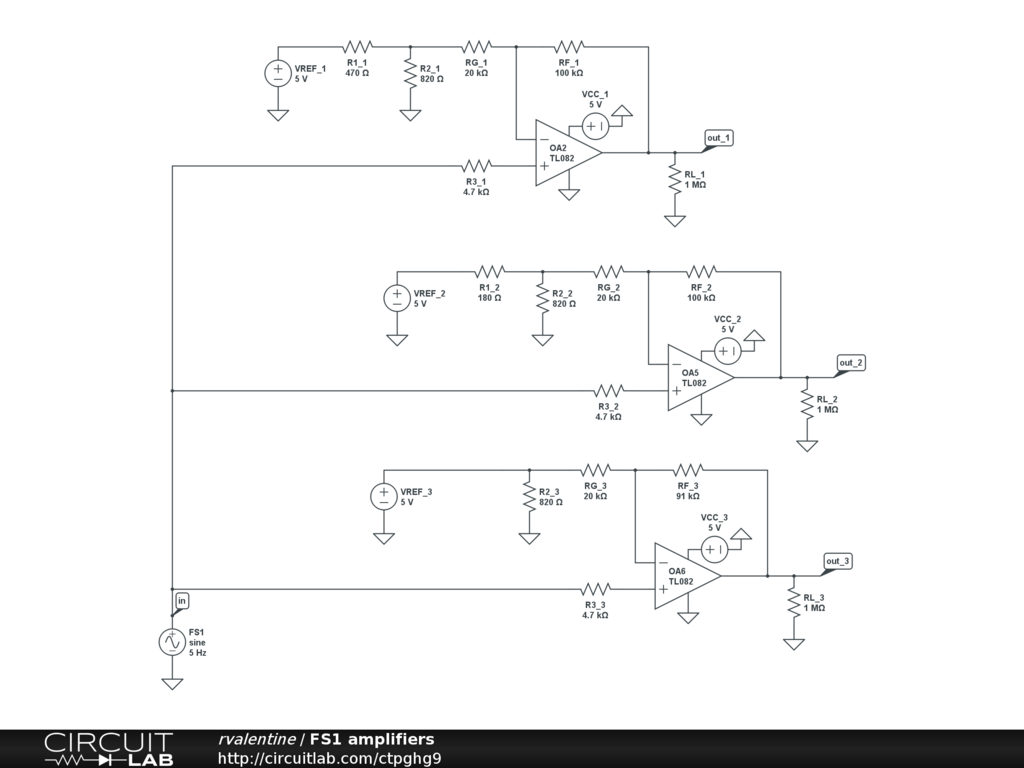

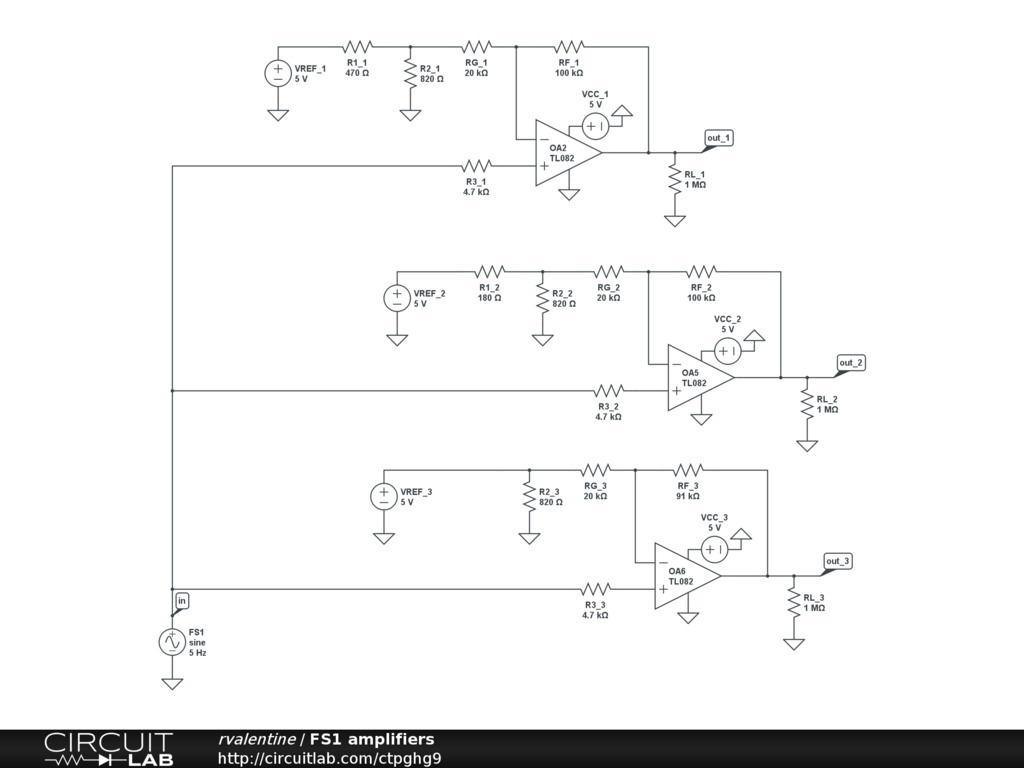

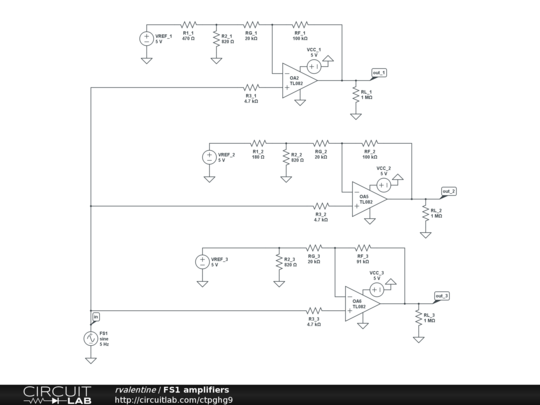

A three segment amplifier. Where the segments are approximatly [2.6, 3.5], [3.5, 4.25], [4.1, 5] Volts from the input with some overlap. It then amplifies those ranges to take up the 5V space to be read by a analog to digital converter.
Not provided.
