100mA 10V UNLISTED

Created by
Created June 25, 2012
Last modified June 25, 2012
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

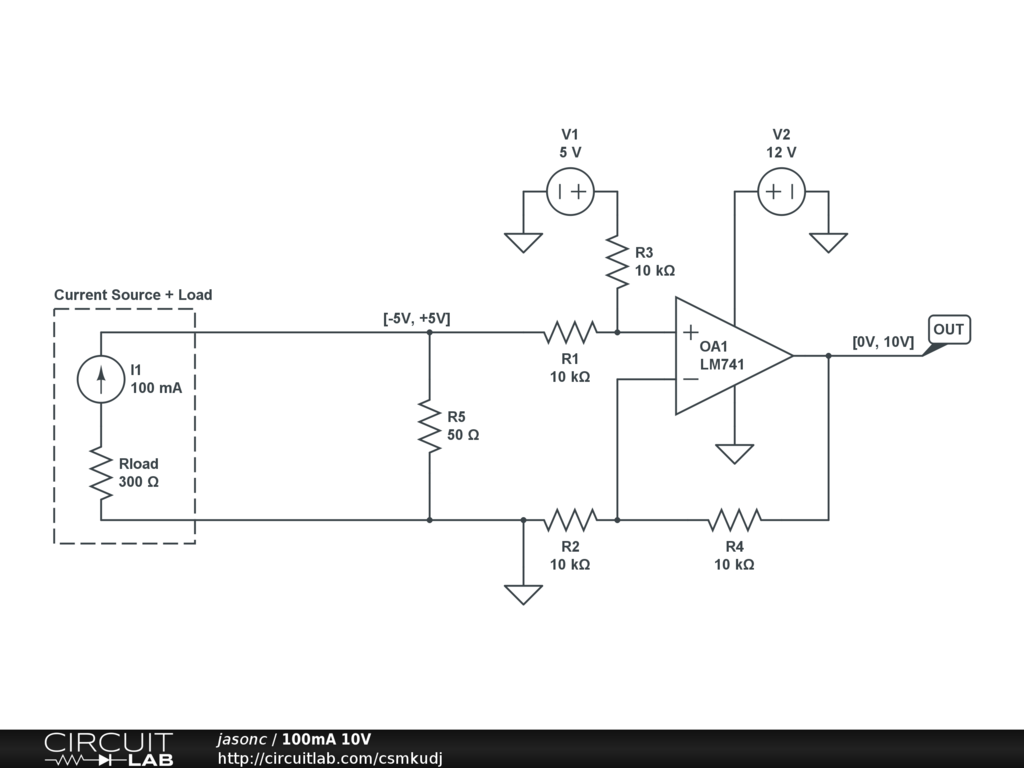

Maps [-100mA, +100mA] input to [0V, 10V] output. 50 ohm resistor creates [-5V, +5V], op-amp circuit offsets by +5V. http://www.edaboard.com/thread256277.html
