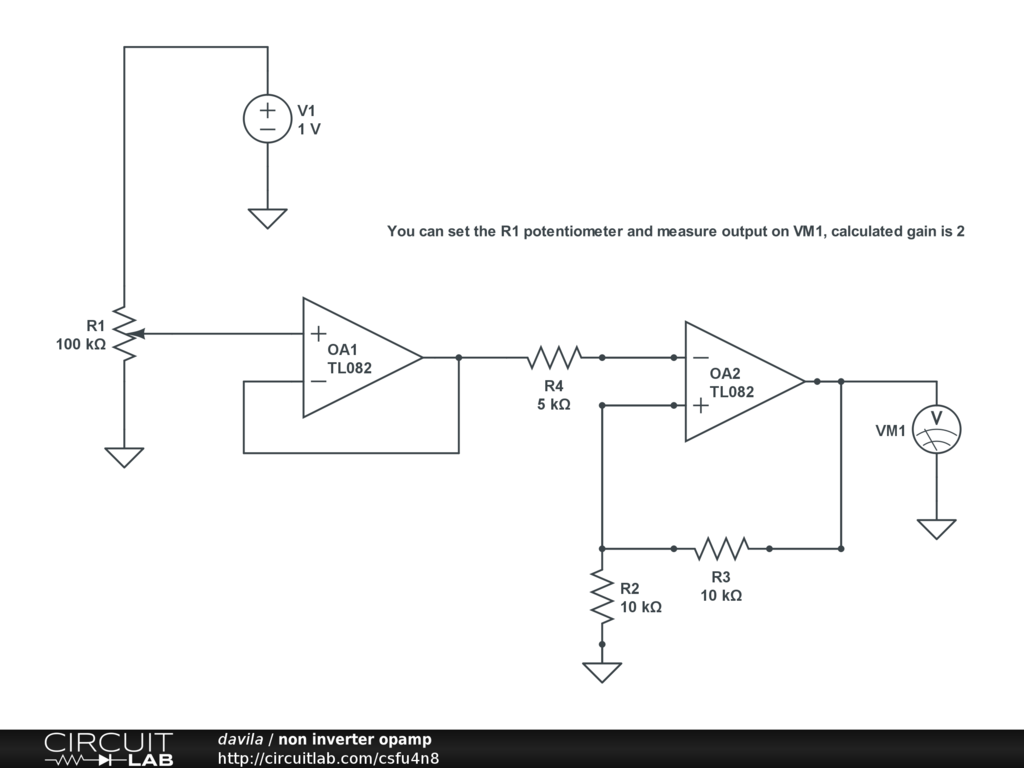

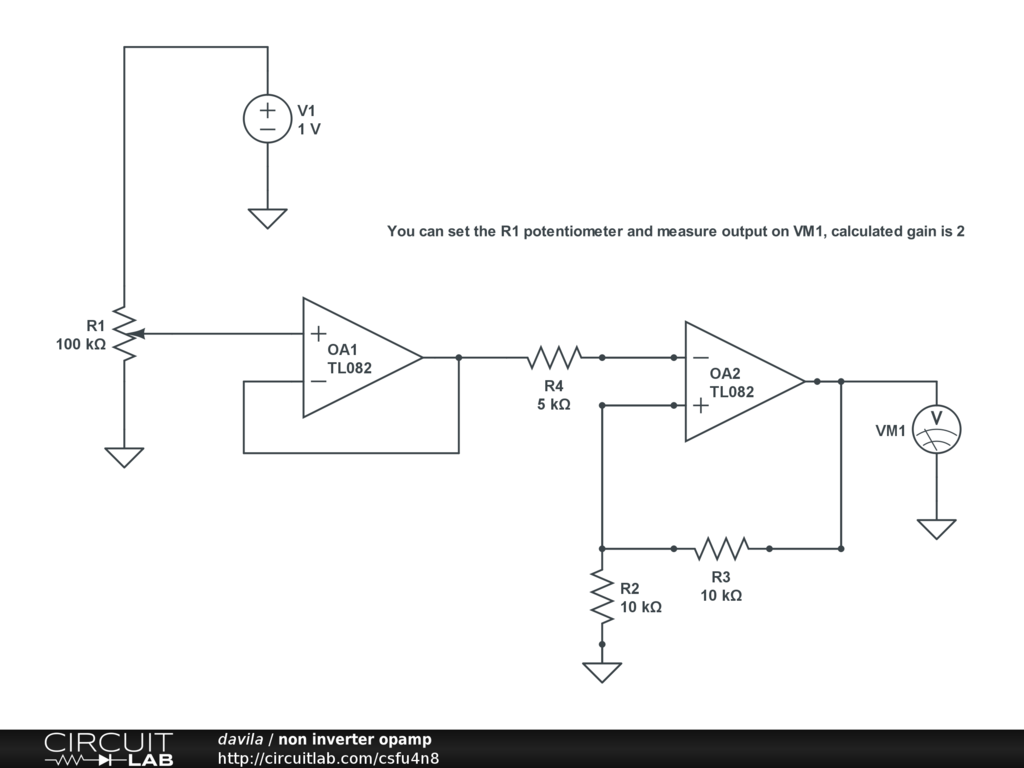

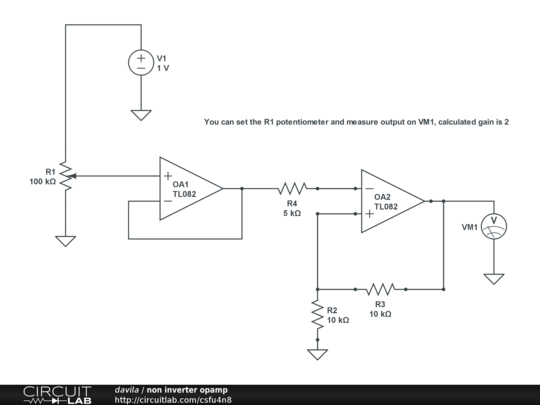

this circuit ilustrates the function of an opamp as a non inverter amplifier, OA1 is just a voltage follower and OA2 is the non inverter amplifier, gain=(R3/R2)+1
