Security_system_01

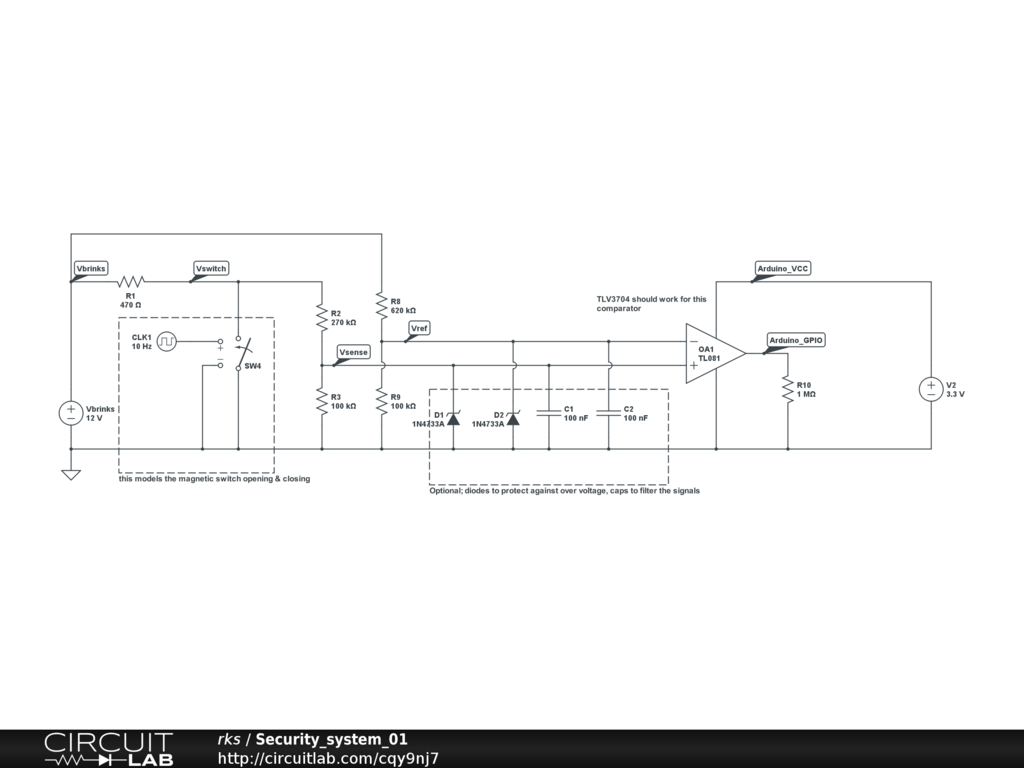

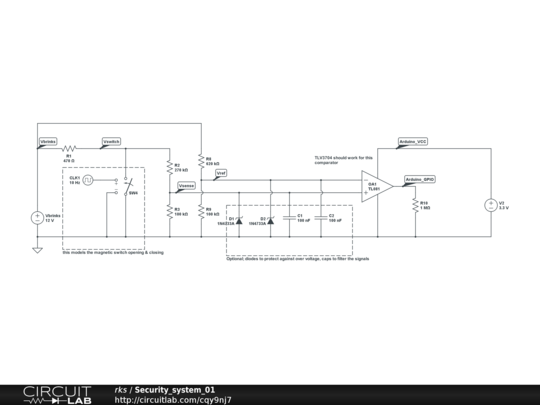

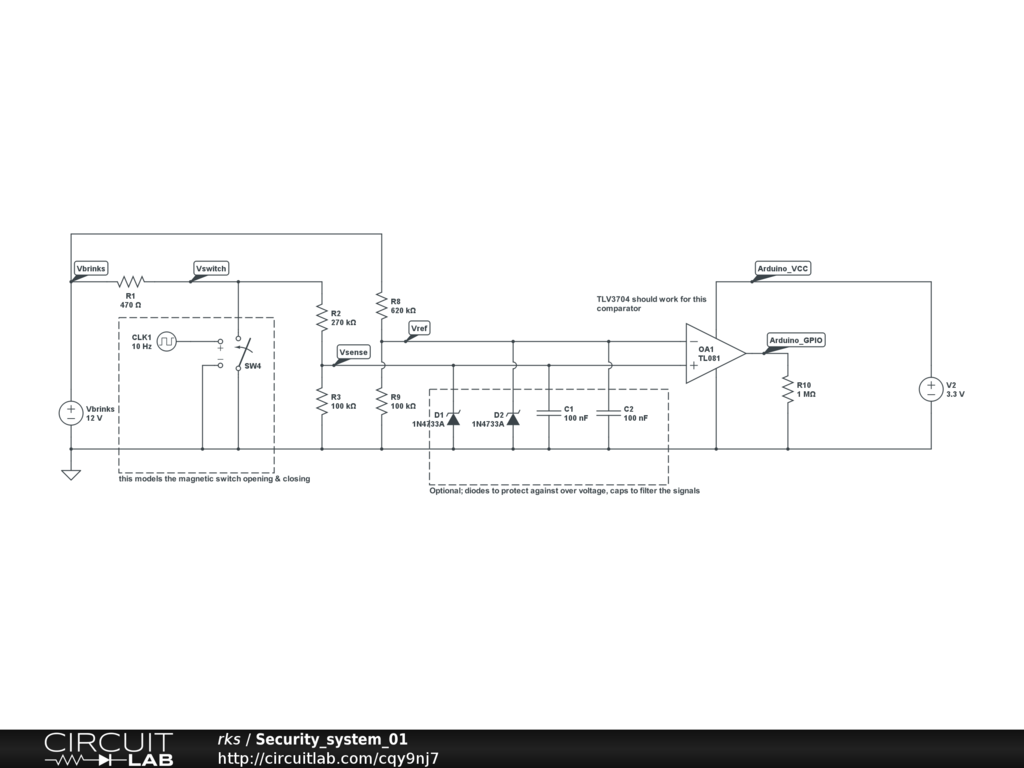

Circuit to step down the 0V to 14V signals from a home security system down to the 3.3V or 5V level of the Auduion GPIOs.
