halfwave_rectifier_zener

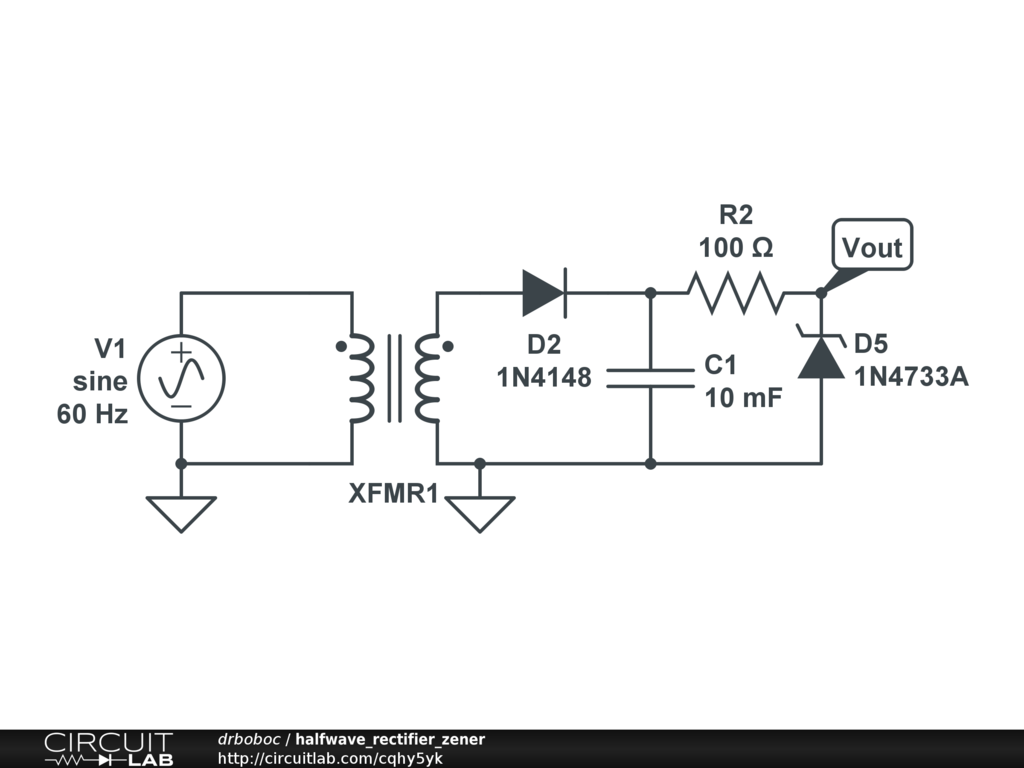

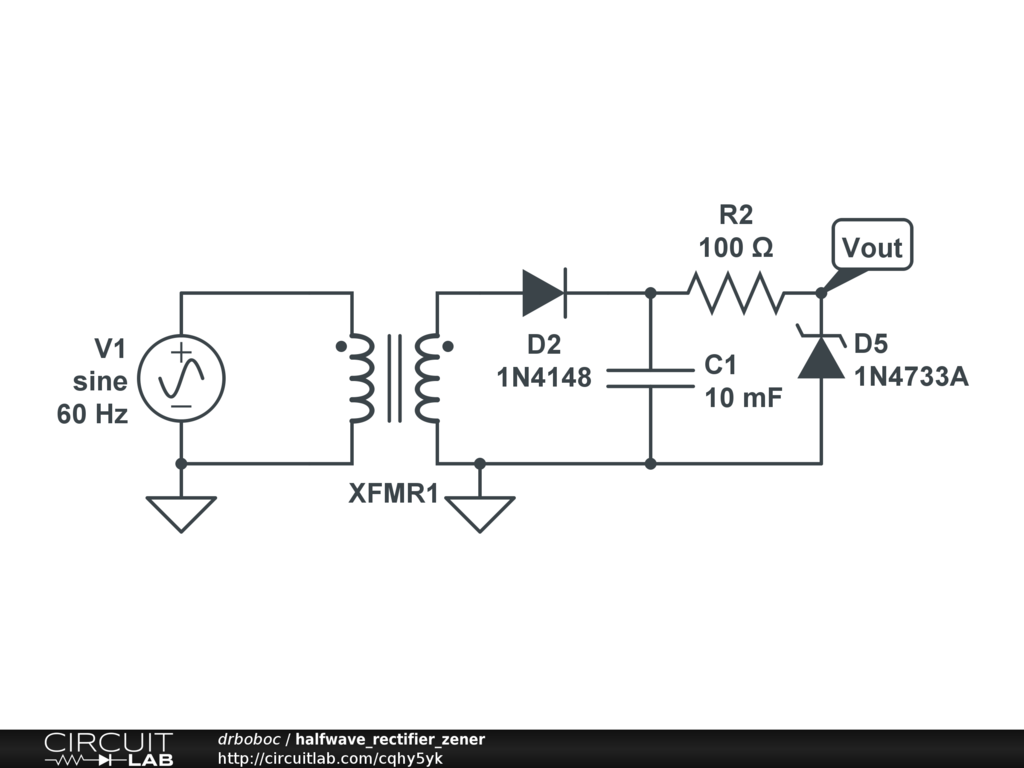

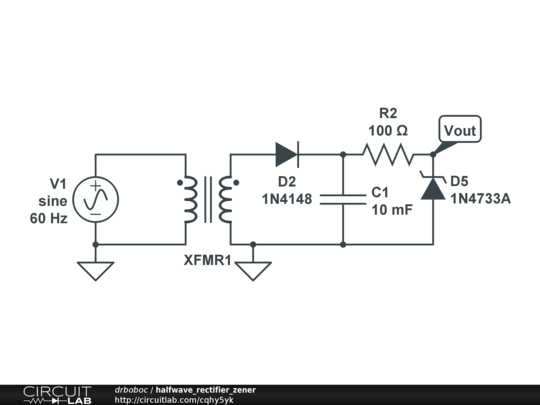

Simple circuit converting mains to 10 V dc supply. Uses a transformer, a rectifying diode, a low-pass filter, and a Zener diode.
