Aquaboss Valve LED Schematic

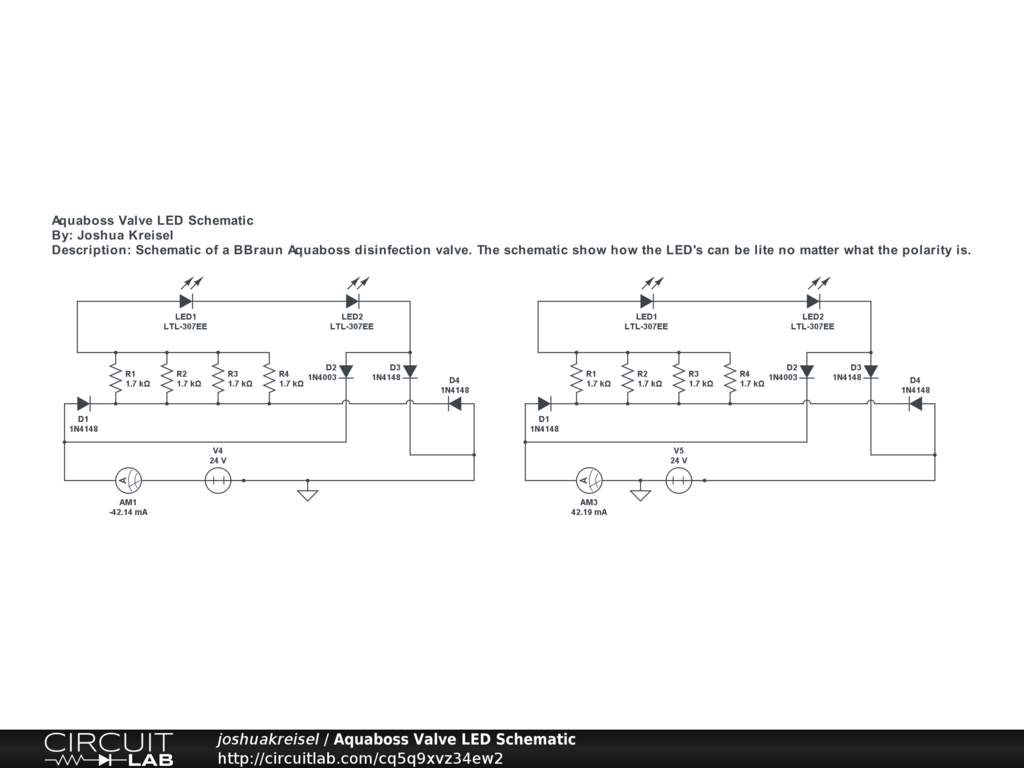

Schematic of a LED board for a BBraun Aquaboss. The schematic shows how the LED's can be lite no matter what the polarity is.
