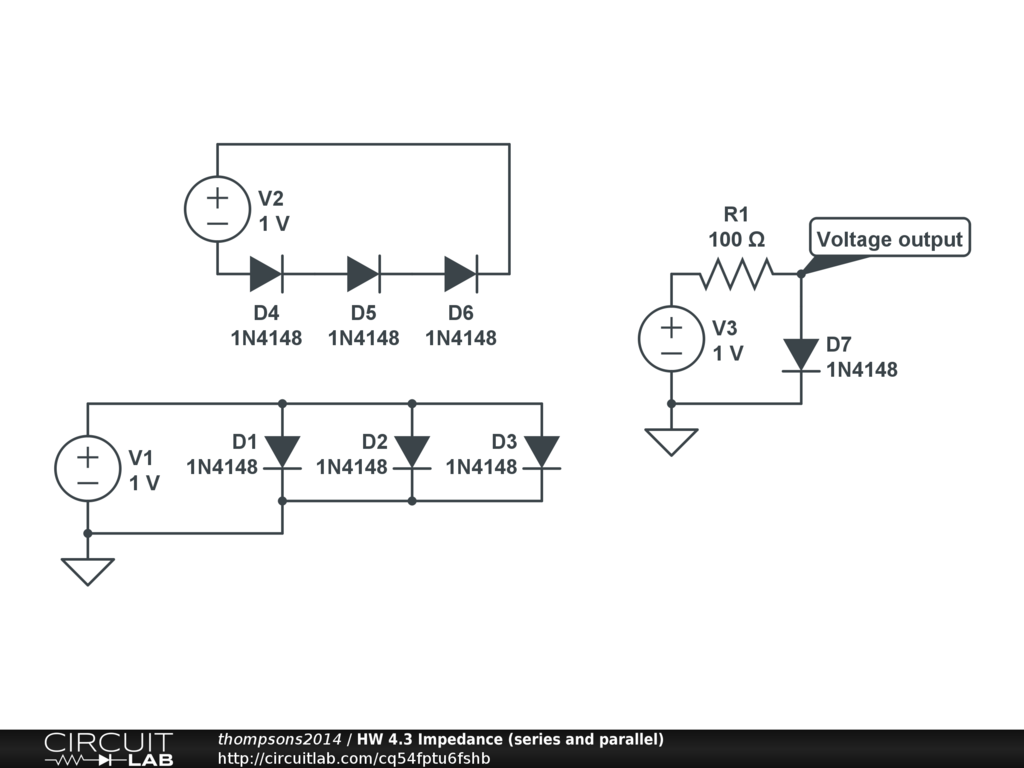

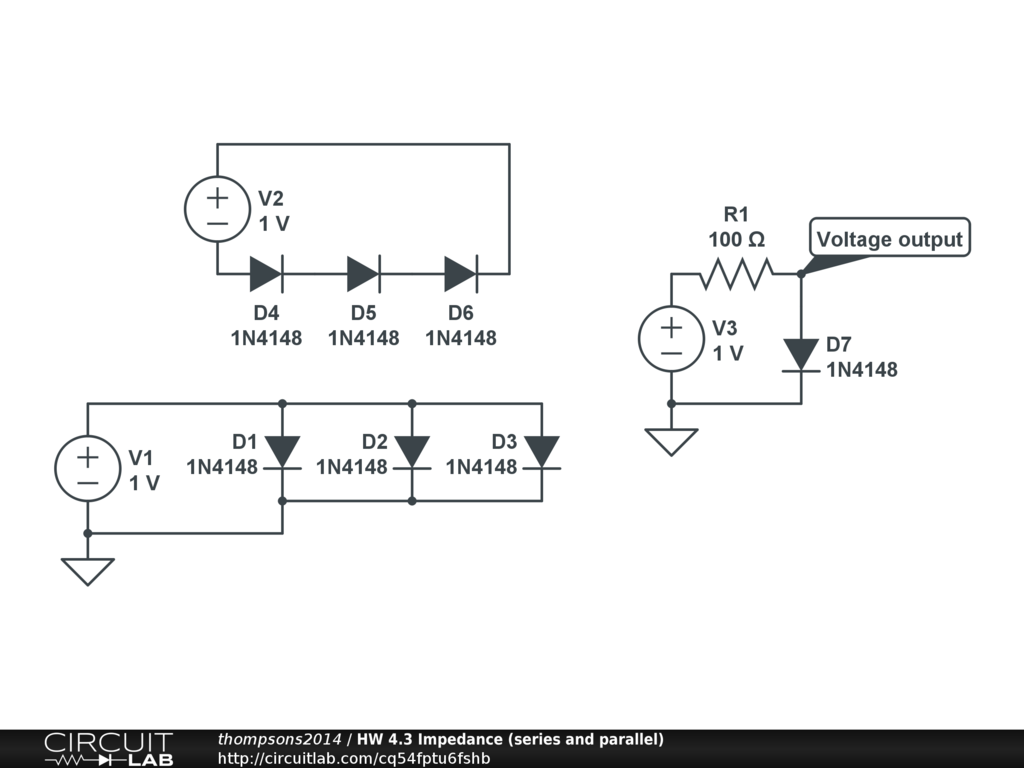

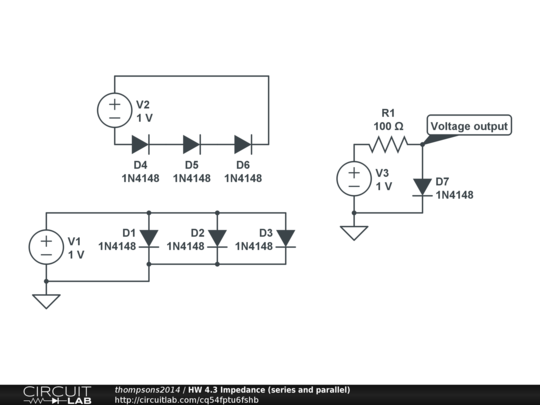

The impedance for series is Z= z4 + z5 + z6 and the impedance for parallel 1/Z = 1/z1 + 1/z2 + 1/z3 and the circuit to the far right is the low pass filter with a diode
