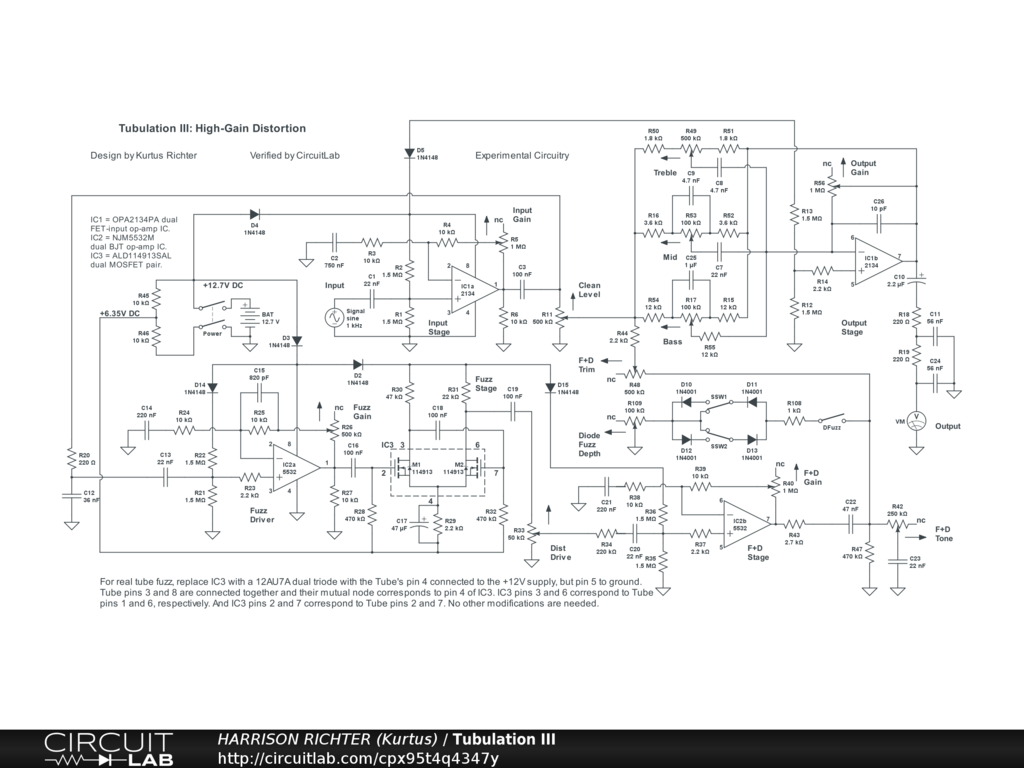

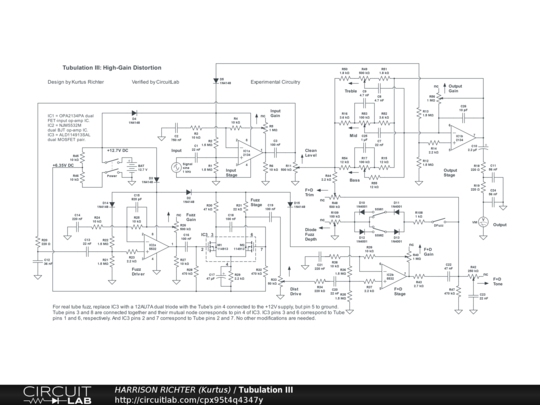

Tubulation III: High-Gain Fuzz + Distortion Circuit

Tubulation III is a high-gain fuzz and distortion circuit much like Tubulation II, but with an extra diode array added, for incorporating shunt-type fuzz with the MOSFET fuzz and op-amp distortion. Controls Include: Input Gain, Clean Level, Fuzz Gain, Distortion Drive, Fuzz + Distortion Gain, Fuzz + Distortion Tone, Fuzz + Distortion Trim, Diode Fuzz enable switch, Diode Fuzz Symmetry Switches, Diode Fuzz Depth, Bass, Mid, Treble, and Output Gain. See Tubulation II for performance and other specifications.
