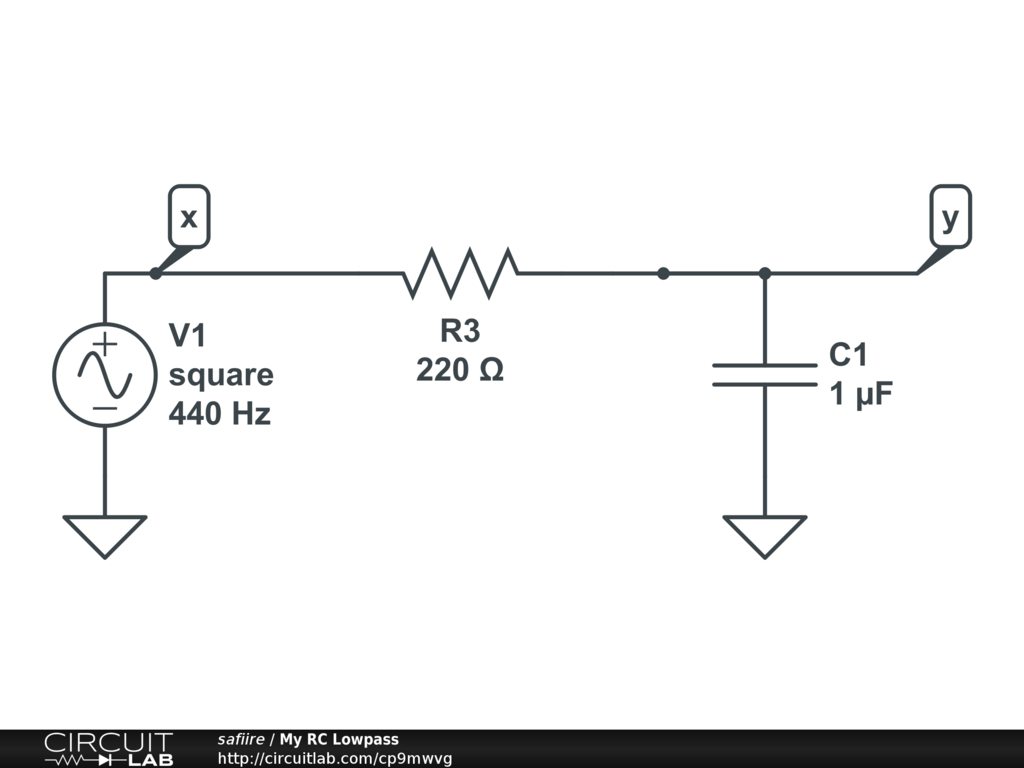

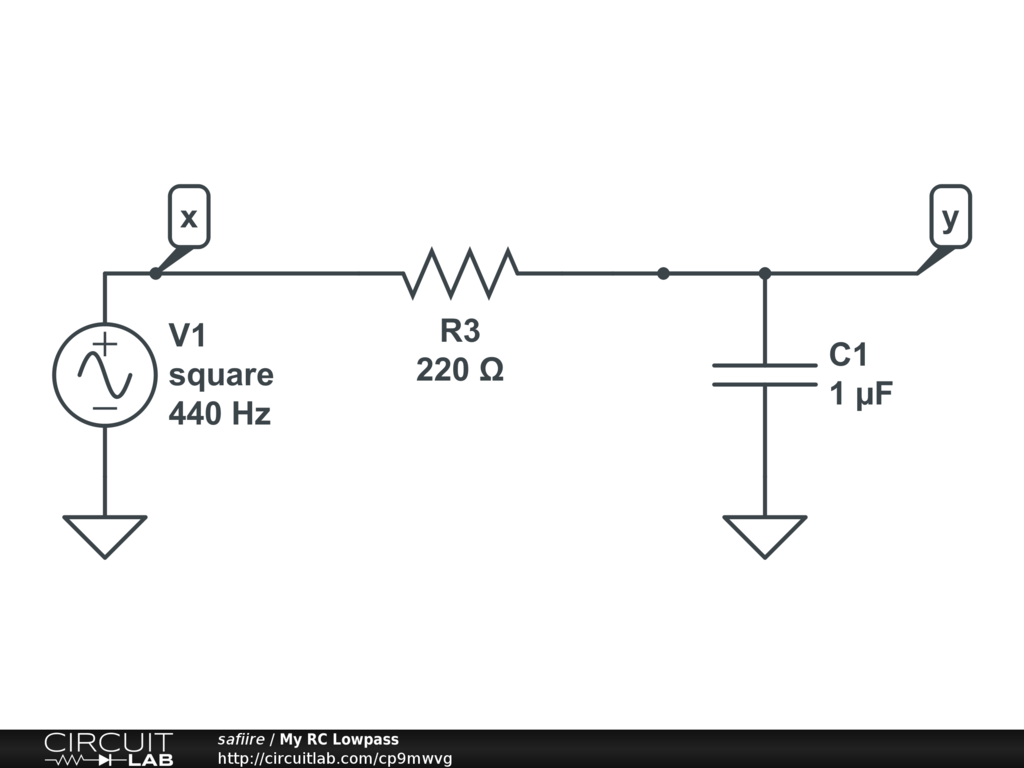

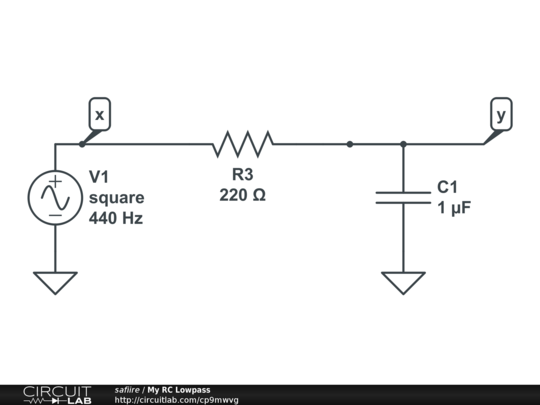

This is a one pole low pass RC filter with a cutoff point at:
1/(2 * pi * 220.0 * 0.000001) = ~723.43hz
It is shaping the A440 square wave being sent as input
