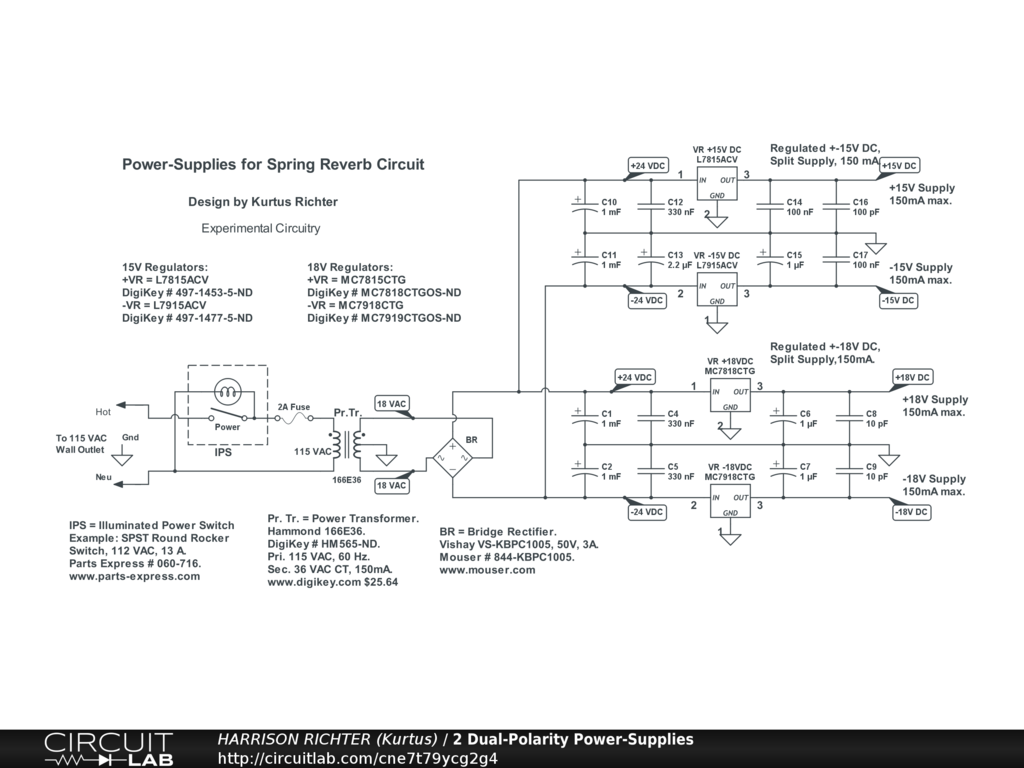

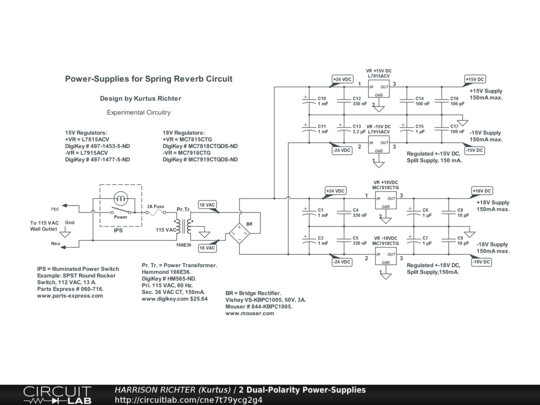

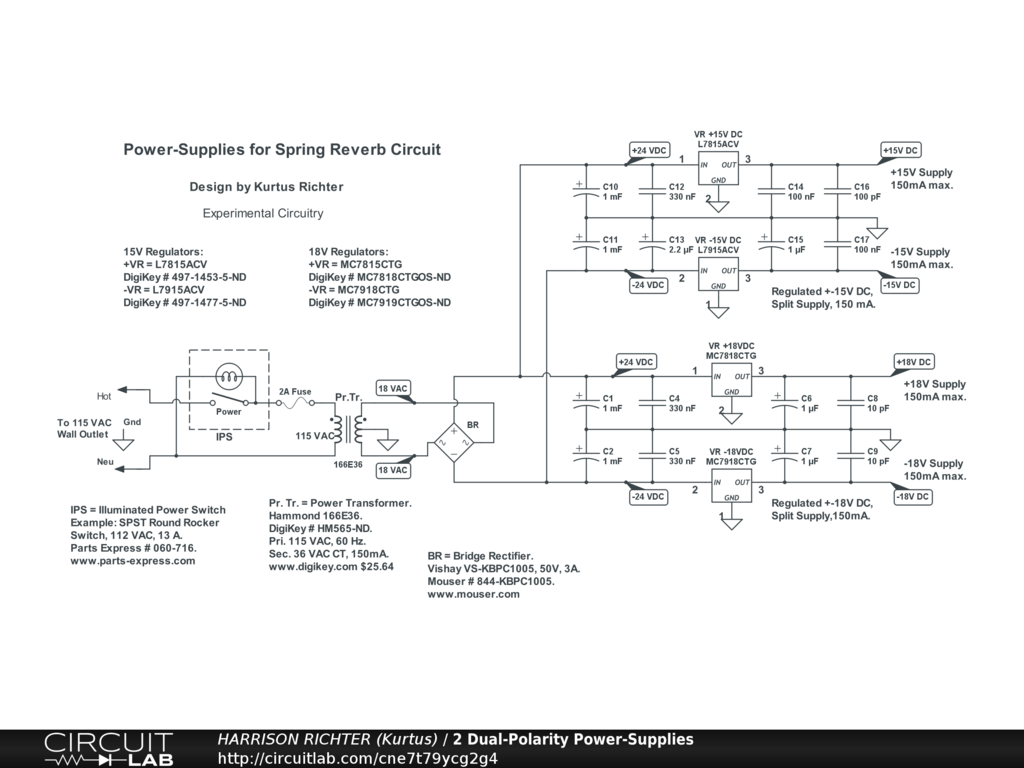

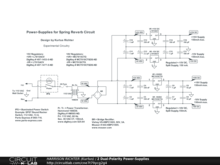

Power-supply giving +-15VDC and +-18VDC at <= 150 mA.
Regulated power-supply with two dual-polarity outputs; one +-15V DC and one +-18V DC, providing together <= 150 mA of current. Designed for the Spring Reverb Circuit.
