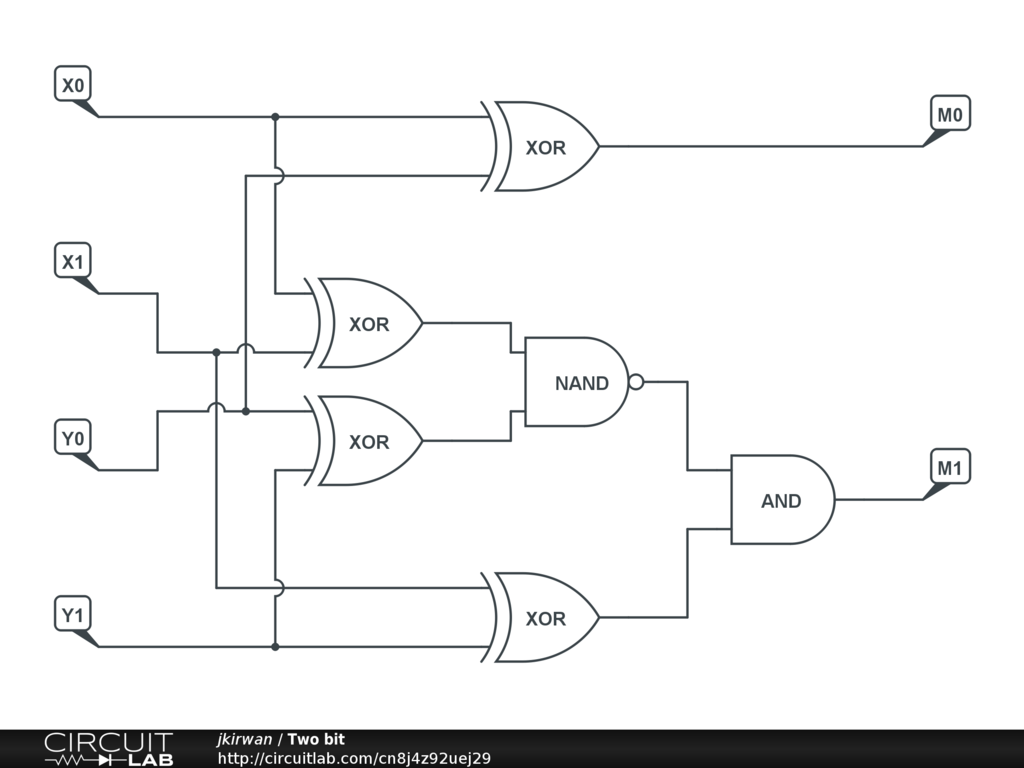

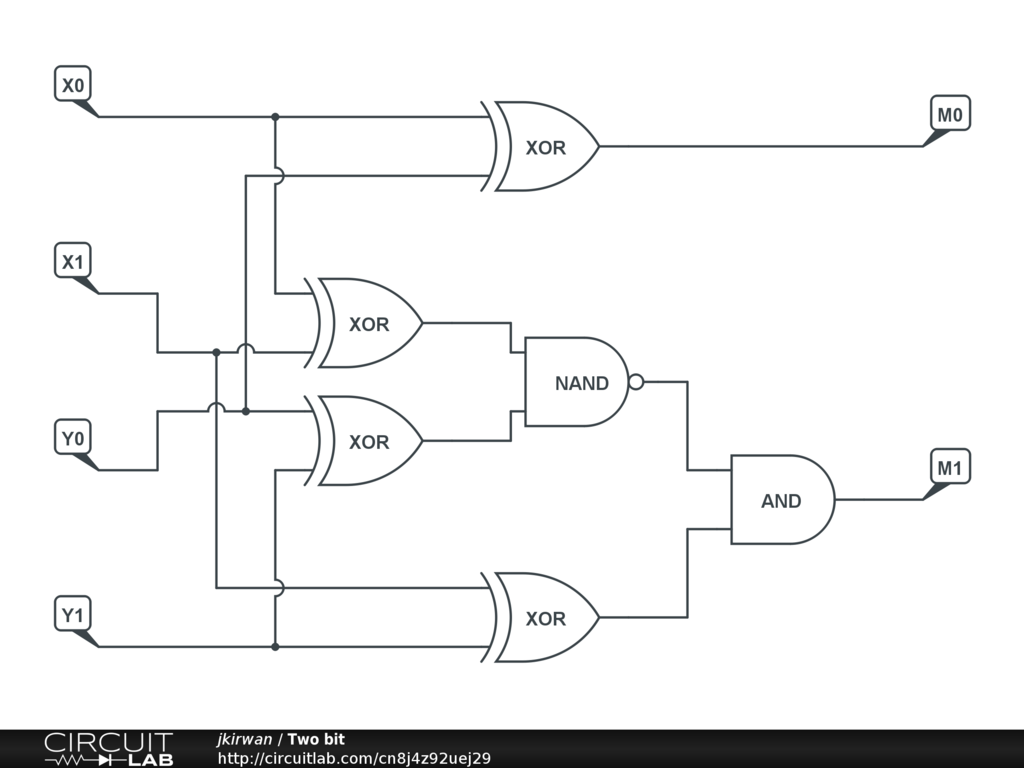

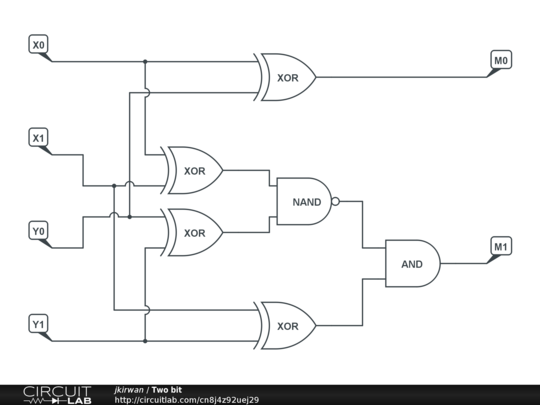

Two bit absolute magnitude V2

Computes 2-bit | X - Y | given an handful of simple gates. (Not optimized for any particular purpose.)
