Two bit absolute magnitude V1

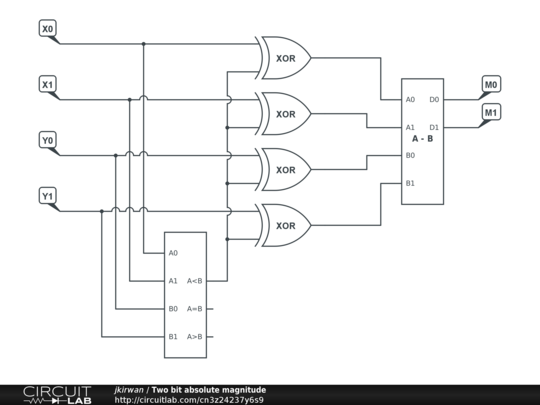

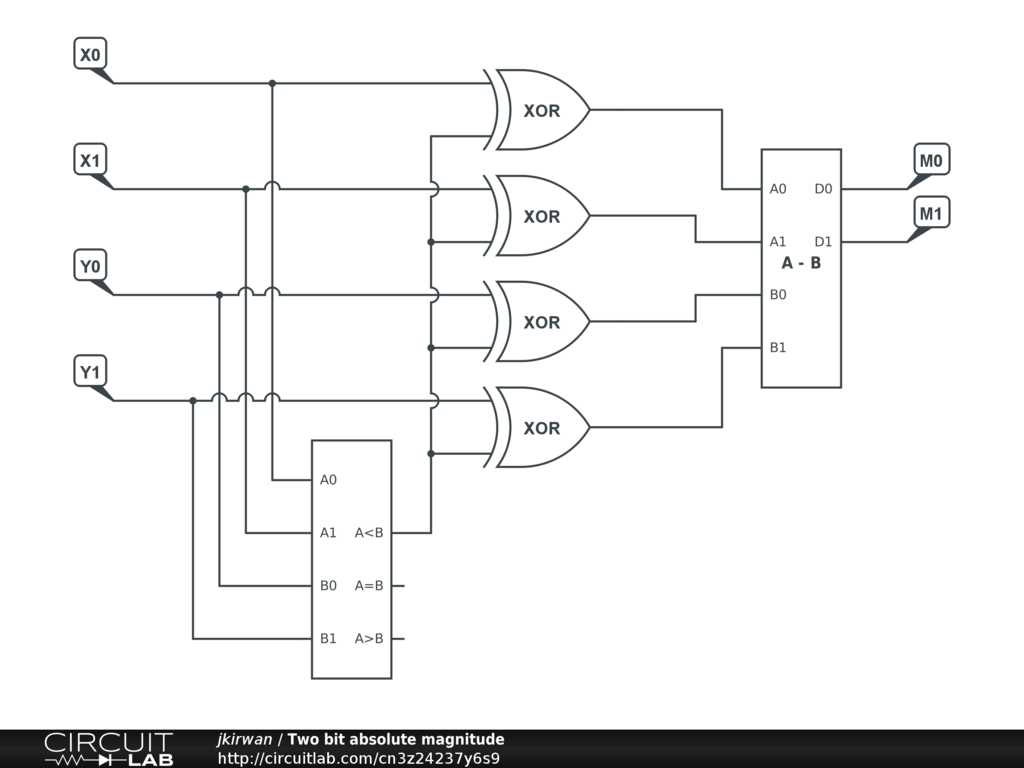

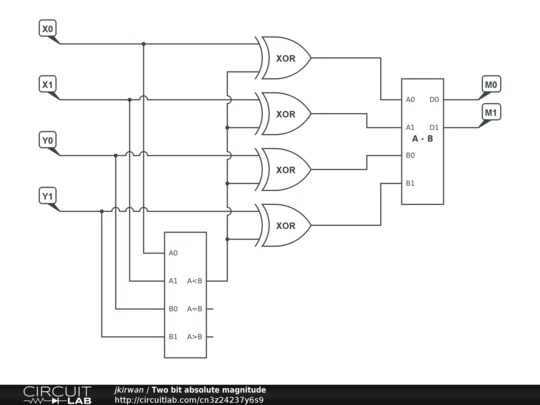

Computes | X - Y | using comparator, subtractor, and four XOR gates (per suggested available parts.)
