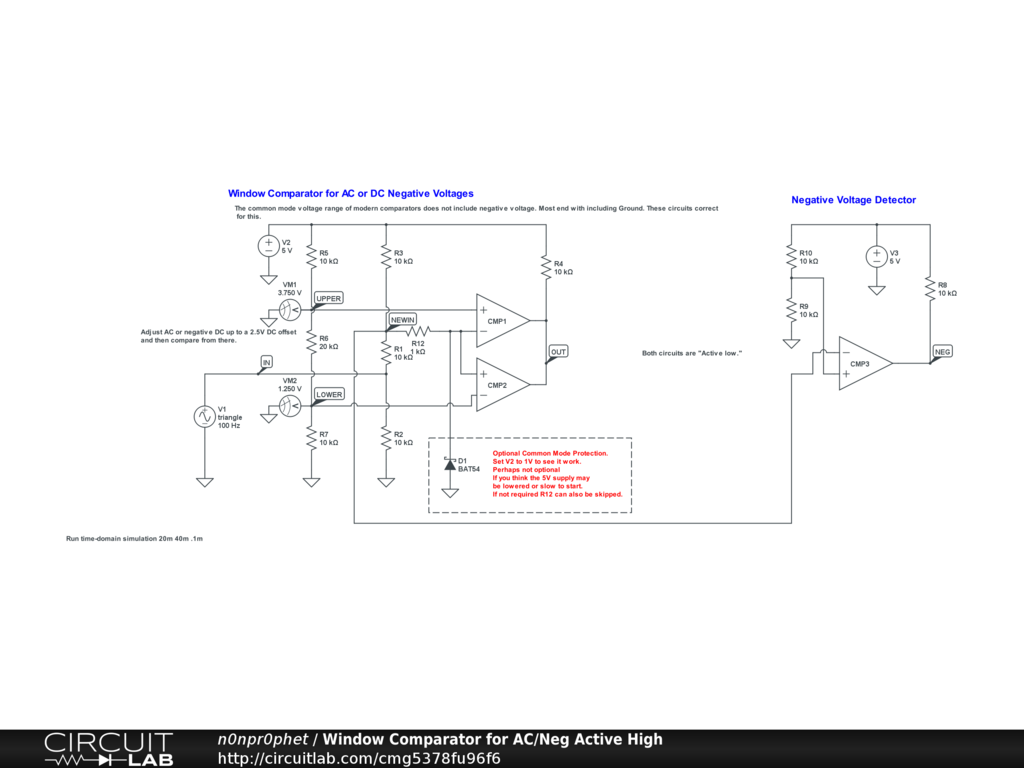

Window Comparator for AC/Neg Active High

Created by	Gregory Pruden (n0npr0phet)
Created	August 23, 2018
Last modified	August 24, 2018
Tags	ac comparator negative over-voltage under-voltage window-comparator

This Window Comparator will identify over or under voltages in AC or negative signals by applying a DC Offset.
