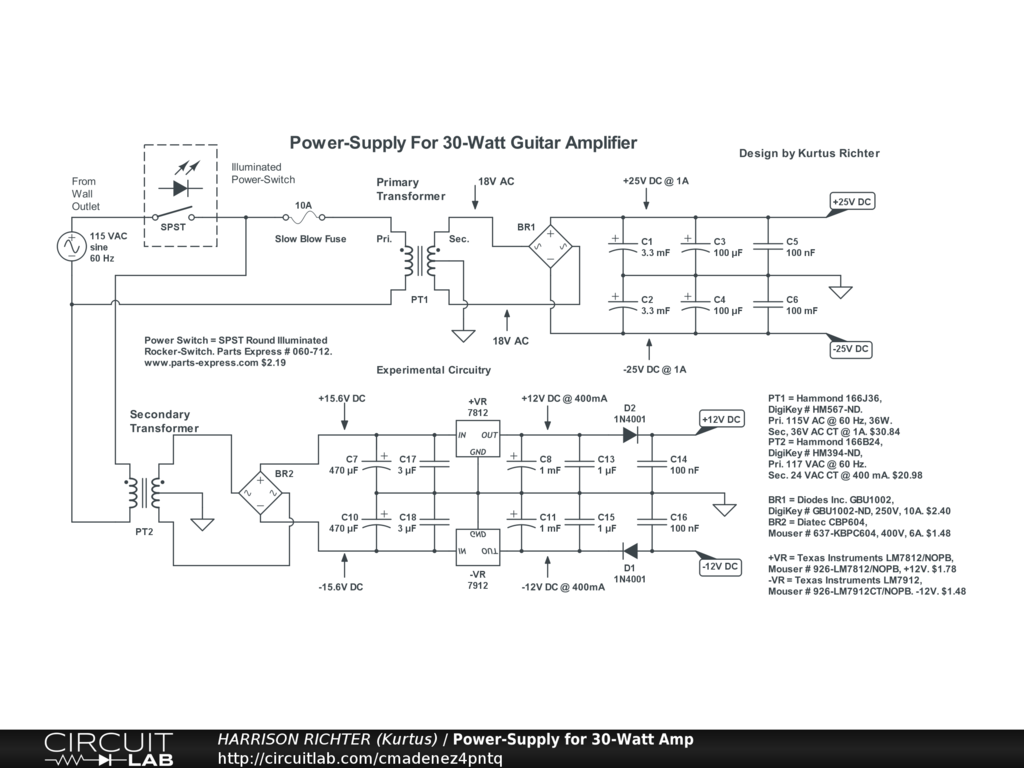

Power-Supply for 30-Watt Solid-State Guitar Amplfiier
Power-supply for 30-watt RMS solid-state guitar amplifier. Two sections. One supply for the op-amps; regulated, dual-polarity, +-12VDC, 400 mA. One supply for power-amp IC; unregulated, dual-polarity, +-25VDC, 1A. Shield the supply from the rest of the circuit. Put regulators on heatsinks. Experimental circuitry. Breadboard test before committing to a soldered build.
