3-Voiced Soft-Clip Fuzz w. 3-Band Tone PUBLIC

3-Voiced Soft-Clipping Fuzz Circuit with 3-Band Tone-Control

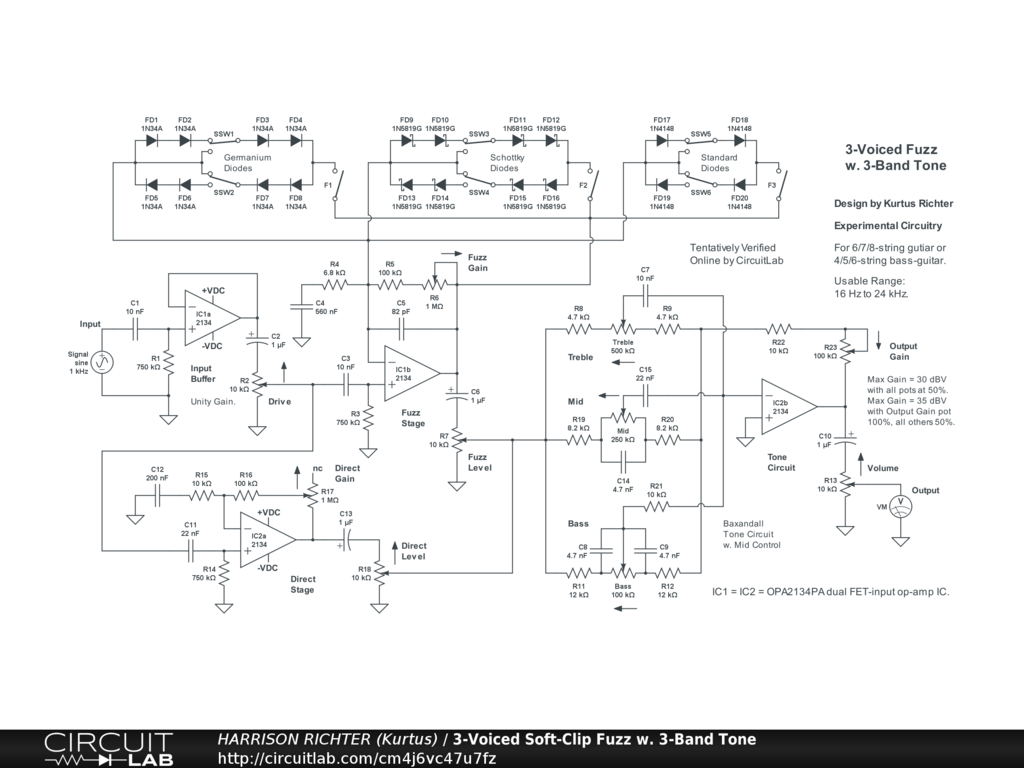

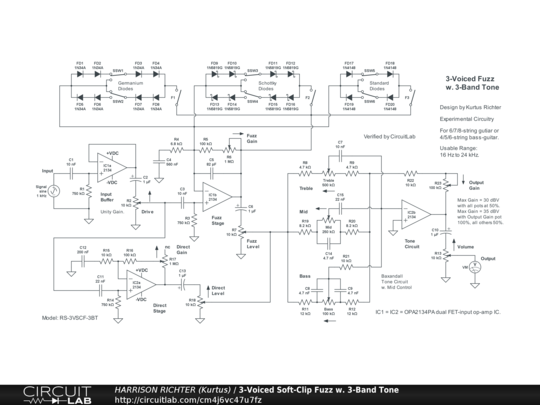

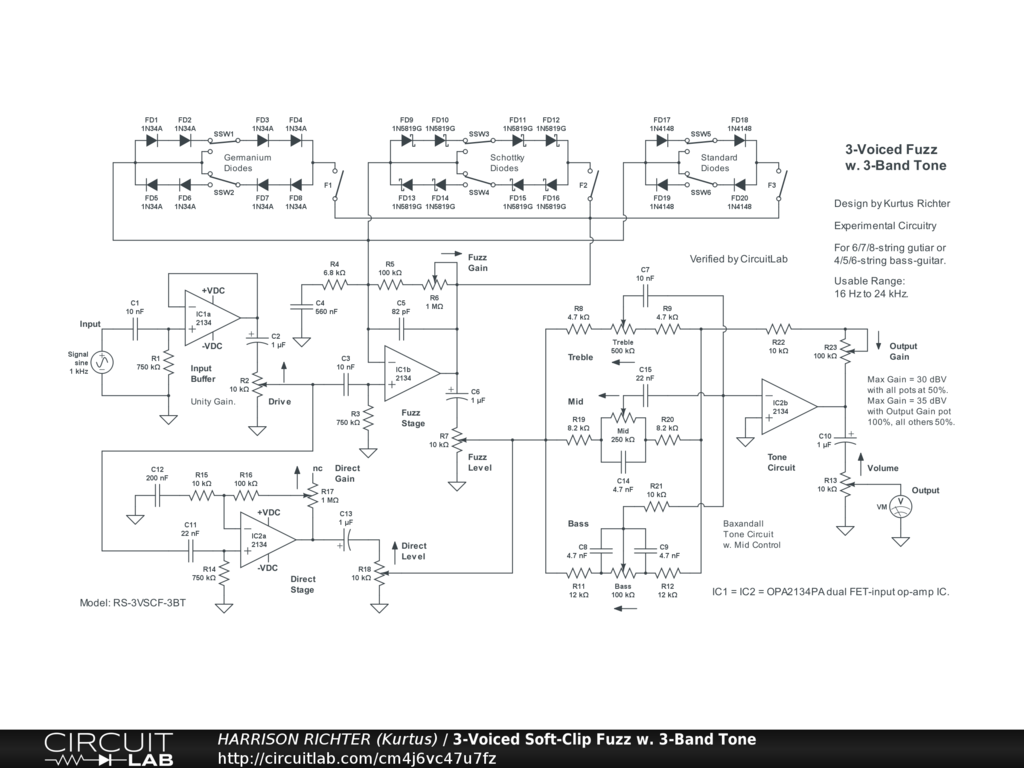

3-band soft-clipping fuzz circuit with 3-band tone-control circuit. Controls Include: Drive, Fuzz Gain, Fuzz enable switches (F1, F2, and F3; separately enabled/disabled), Fuzz symmetry switches (six; 2 per diode array, with 2 settings each), Fuzz Level, Direct Gain, Direct Level, Bass, Mid, Treble, Output Gain, and Volume. Suitable for 6/7/-8-string guitar or 4/5/6-string bass, with emphasis on mids and highs. Usable Range: 20 Hz to 20 kHz. Maximum total gain = 30 dBV (Vo/Vi = 31.6) with all controls at 50%, or 35 dBV with the Output Gain pot at 100%, but all other controls at 50%. Power-supply not shown. Requires regulated supply providing one of the following: +-9VDC or +-12VDC or +-15VDC, at >= 4 mA per op-amp (e.g., 20 mA total).
