Spring Reverb with Diode Fuzz

Spring Reverb Circuit with Diode Fuzz for Guitar

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

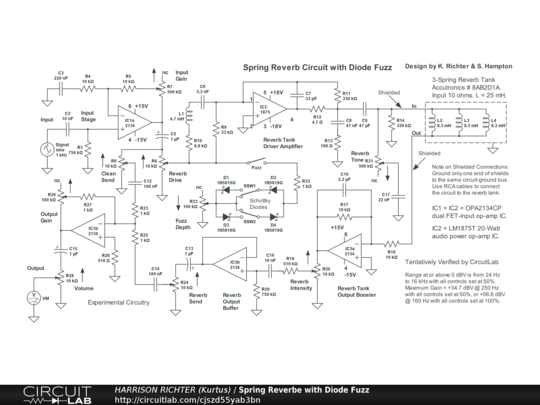

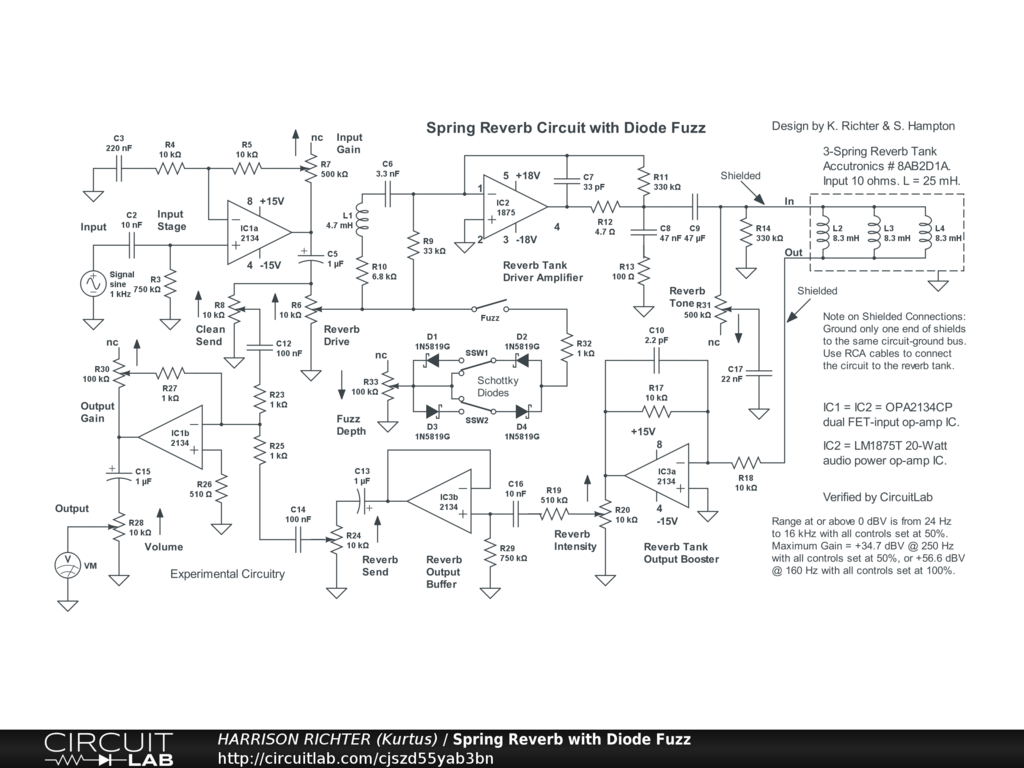

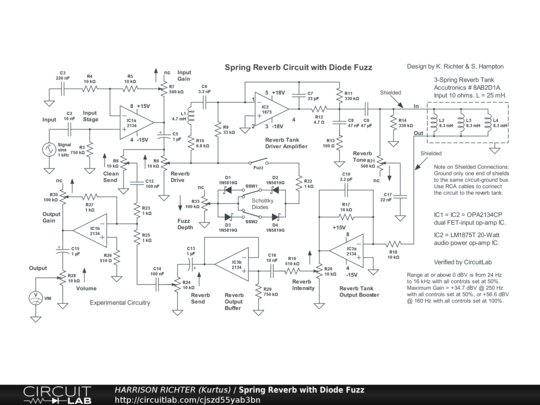

Spring reverb circuit featuring a 3-spring reverb tank and a Schottky diode fuzz array.

No comments yet. Be the first!

Only the circuit's creator can access stored revision history.

Spring Reverb with Diode Fuzz PUBLIC
