edge triggered RSFF PUBLIC

× Please sign in or register to export images.
Created by
Created April 29, 2013
Last modified May 05, 2013
Tags No tags.

Summary

the edge triggered RSFF,
the circuit is example used in course: electronics 2 for mechanical engineers, Ariel University.

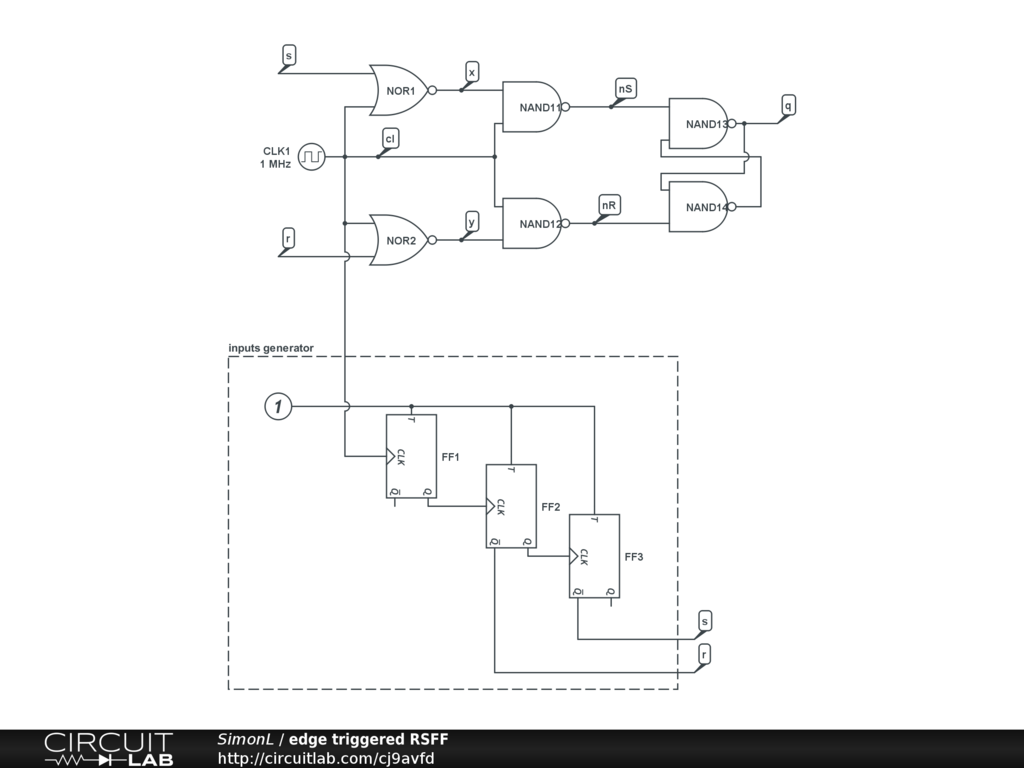

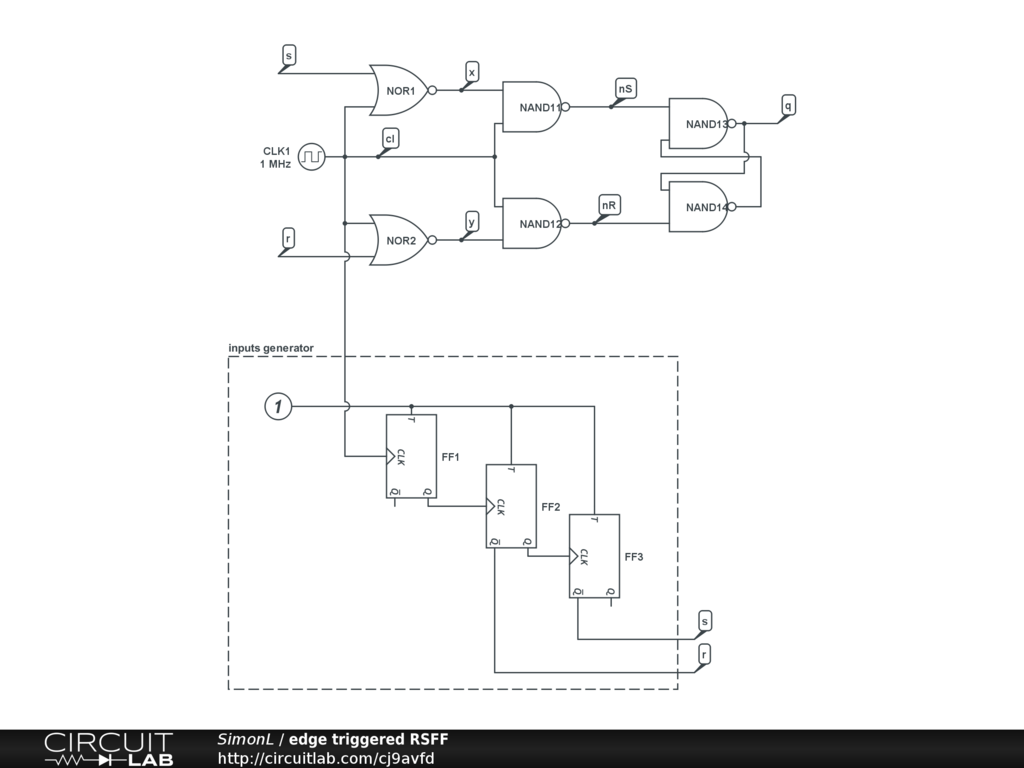

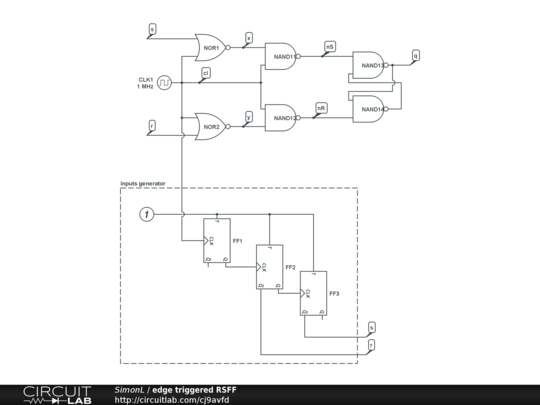

the circuit includes two parts: the first one is a frequency divider that generates inputs for the flip-flop, and the flip-flop itself.
the propagation delay time of the NOR gates set to 1E-7sec.
