Not provided.

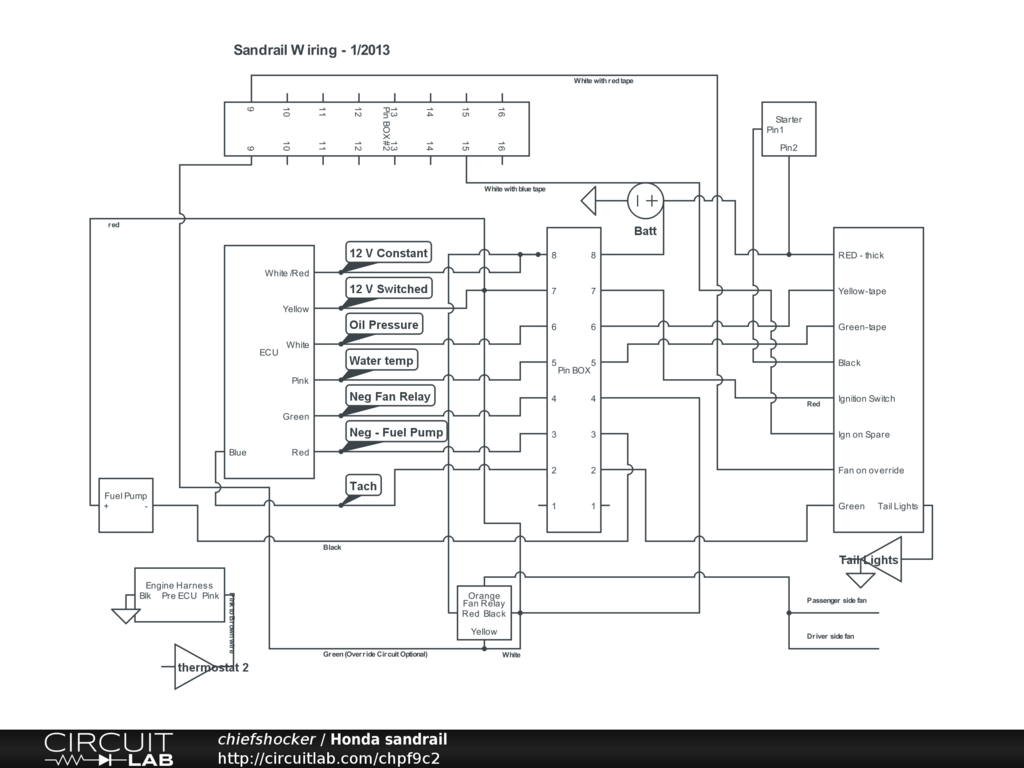

I've never done a drawing like this, so i'm sure my technique and symbol use is not up-to technical standards. I just want to be organized and thought this would be a good way to do it. It is for my tatum sandrail with a Honda 3.5 l engine.
