Karmann Panel 620 for Calira LG512

Not provided.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

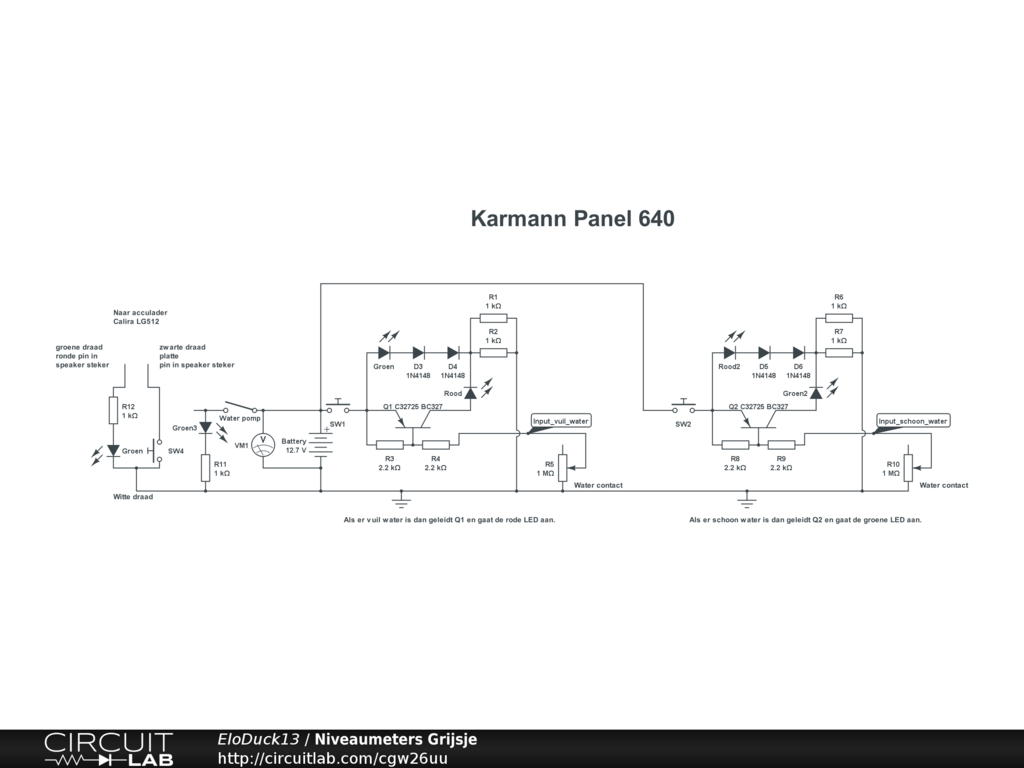

Karmann panel 640 from Germany.

With simple stainless steal contacts in the fresh and used water tanks it checks the levels.

There are also a simple analogue volt meter for the battery and a push button to start the battery charger.

Also a on/off switch was there to allow 12V to go to the water pump

No comments yet. Be the first!

Only the circuit's creator can access stored revision history.

Karmann Panel 620 for Calira LG512 PUBLIC
