Analog Moodlight PUBLIC

Created by
Created May 20, 2013
Last modified September 06, 2013
Tags No tags.

Summary

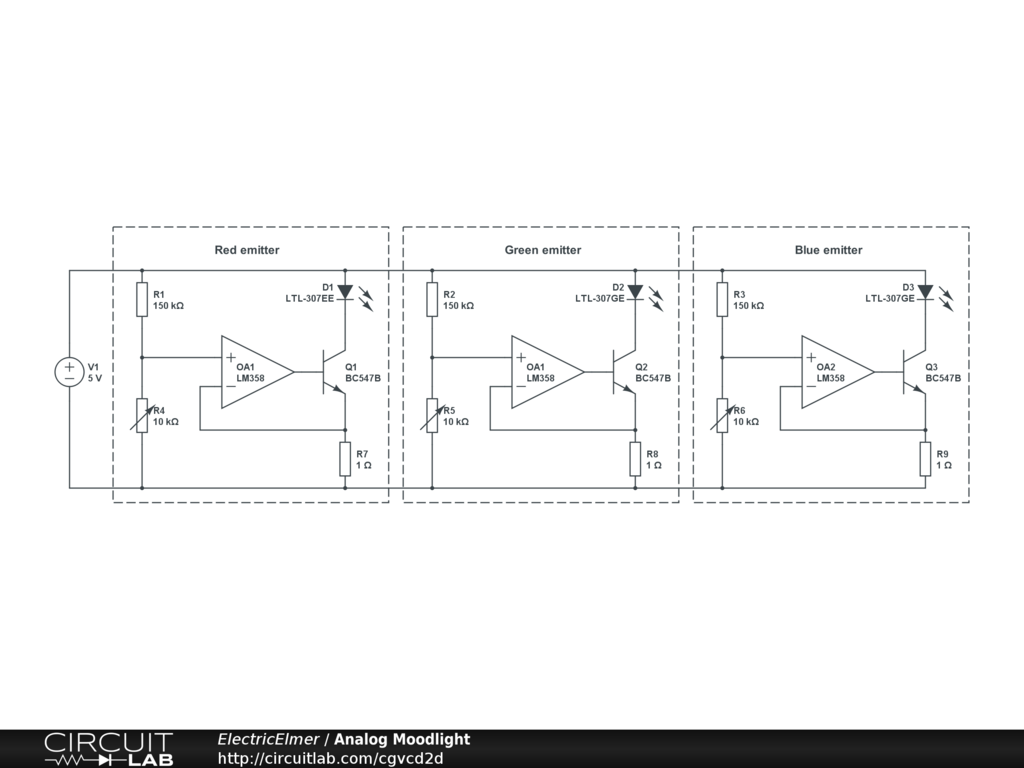

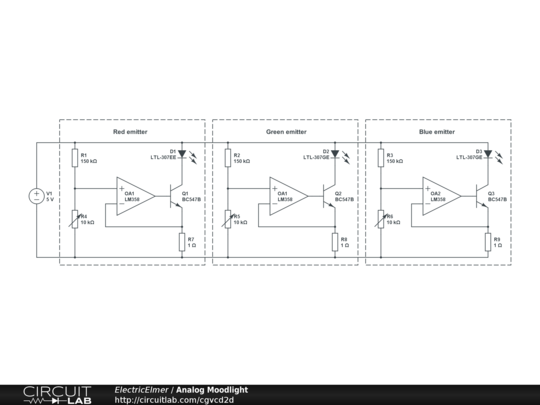

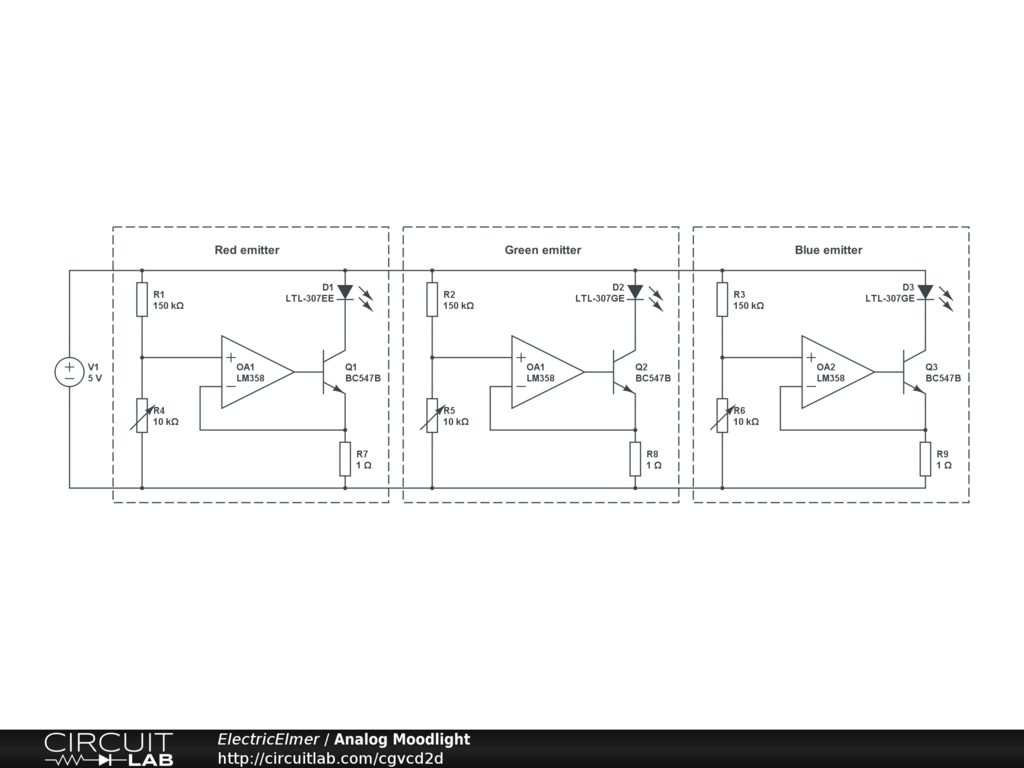

A simple circuit to drive a 3W RGB LED. Brightness control is achieved by setting the resistance of the A10K potentiometers.
