Single-Polarity +12V DC Power-Supply PUBLIC

Created by
Created July 07, 2025
Last modified September 02, 2025
Tags 12v-dc-supply

Summary

Regulated single-polarity +12V DC power-supply.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

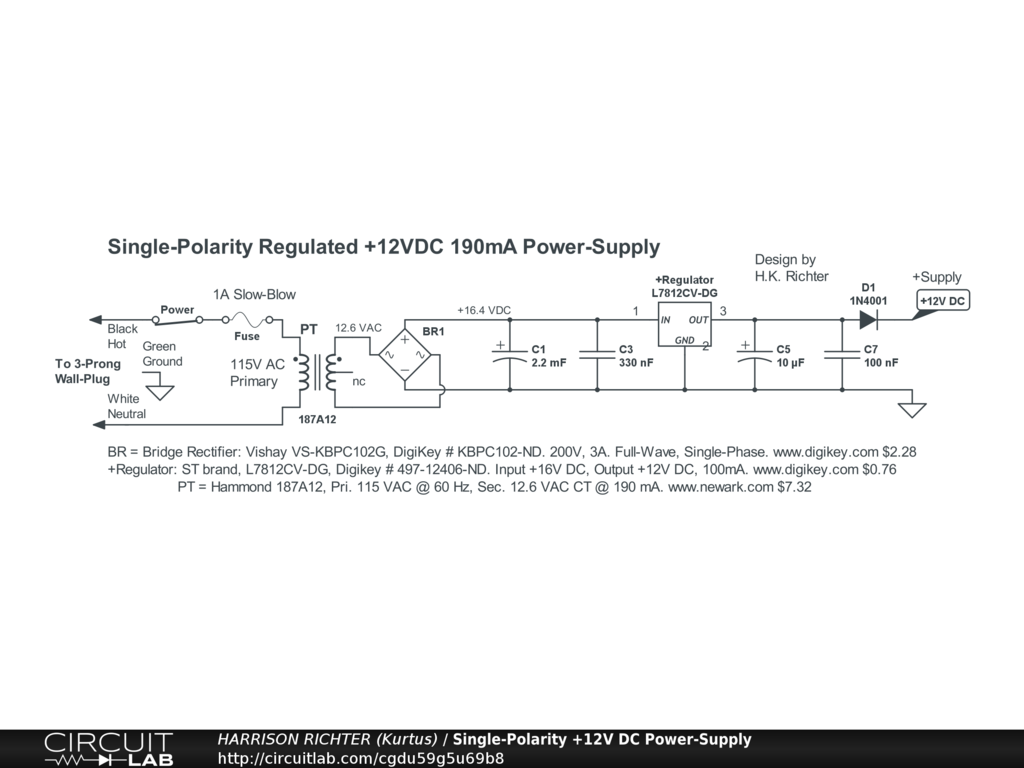

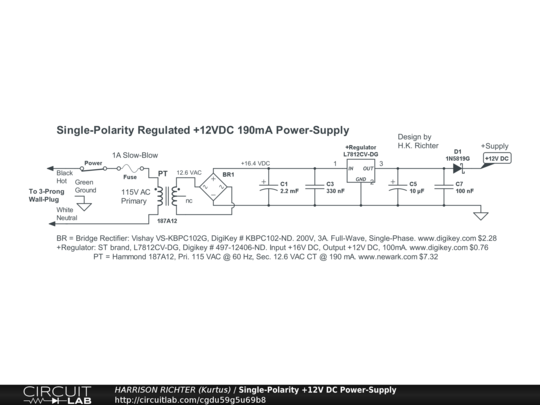

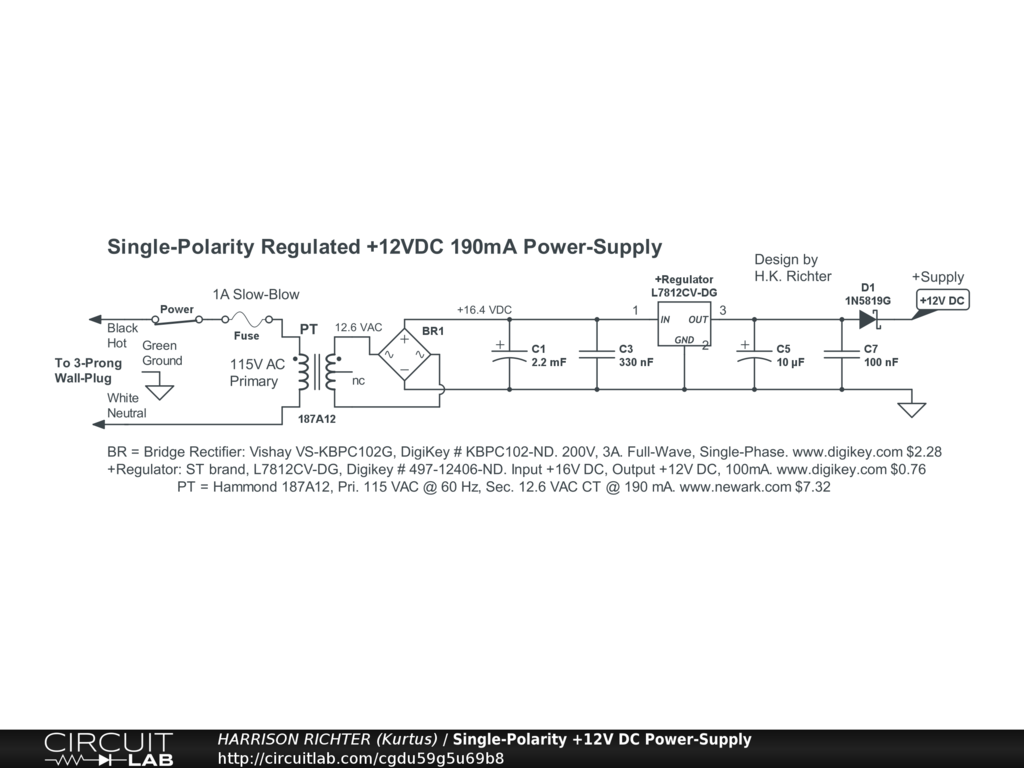

Regulated single-polarity +12V DC power-supply. 190 mA available current.
