MOSFET Gate Transient Voltage

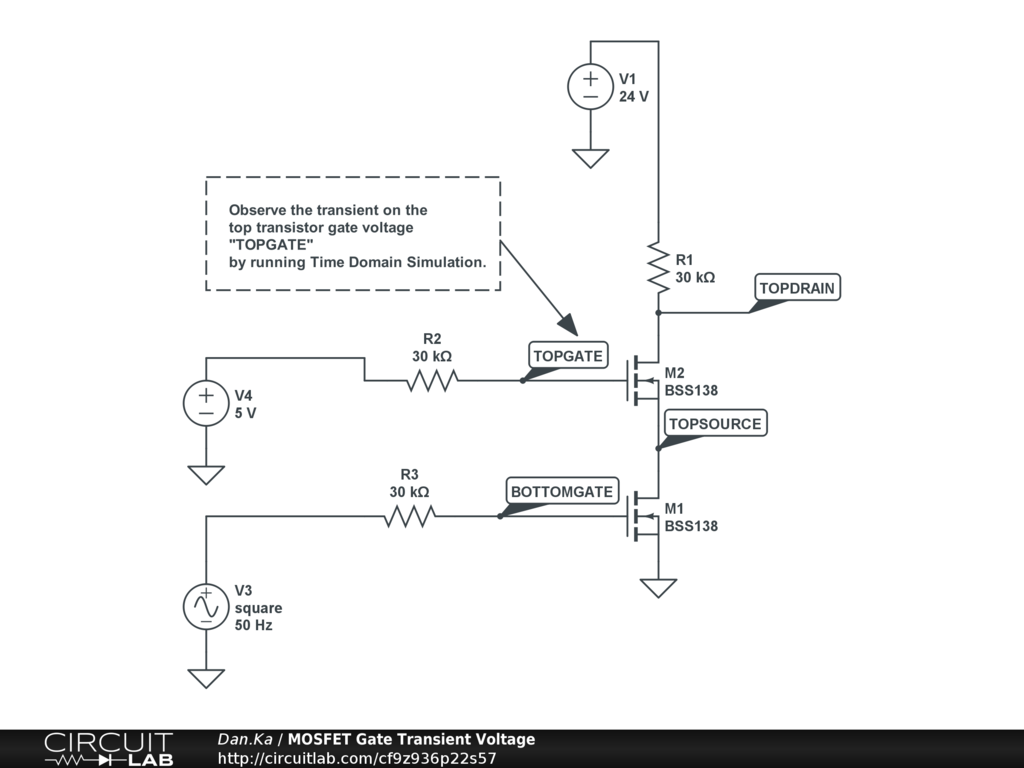

Simulation of simple "AND" logic using two n-MOSFET.
When the bottom transistor switches, a transient occurs
in the top transistor.
