Dream-Rig Circuit 3.2 PUBLIC

Clean Boost with 3-Band Tone-Stack

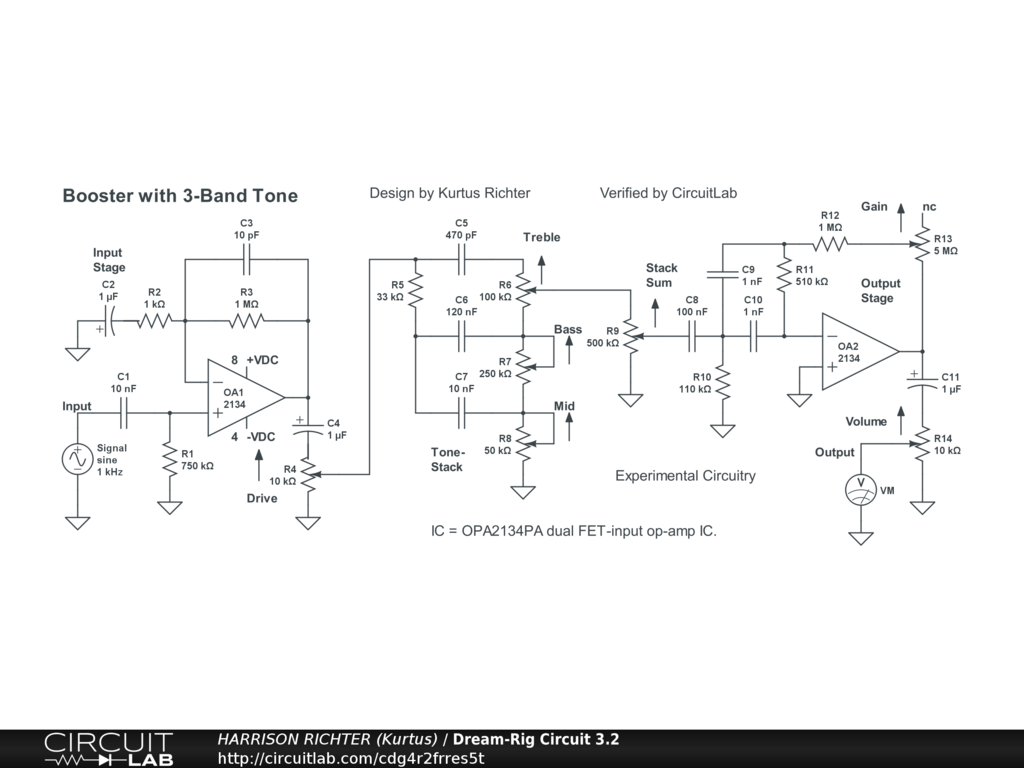

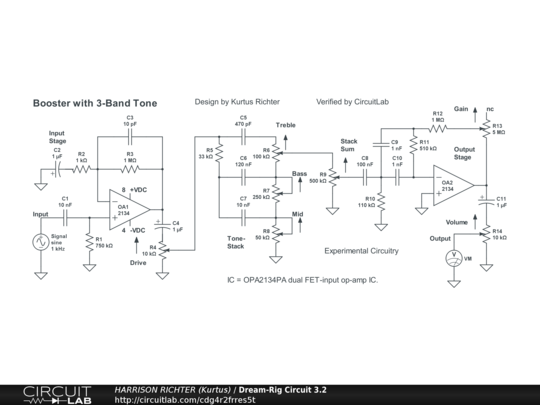

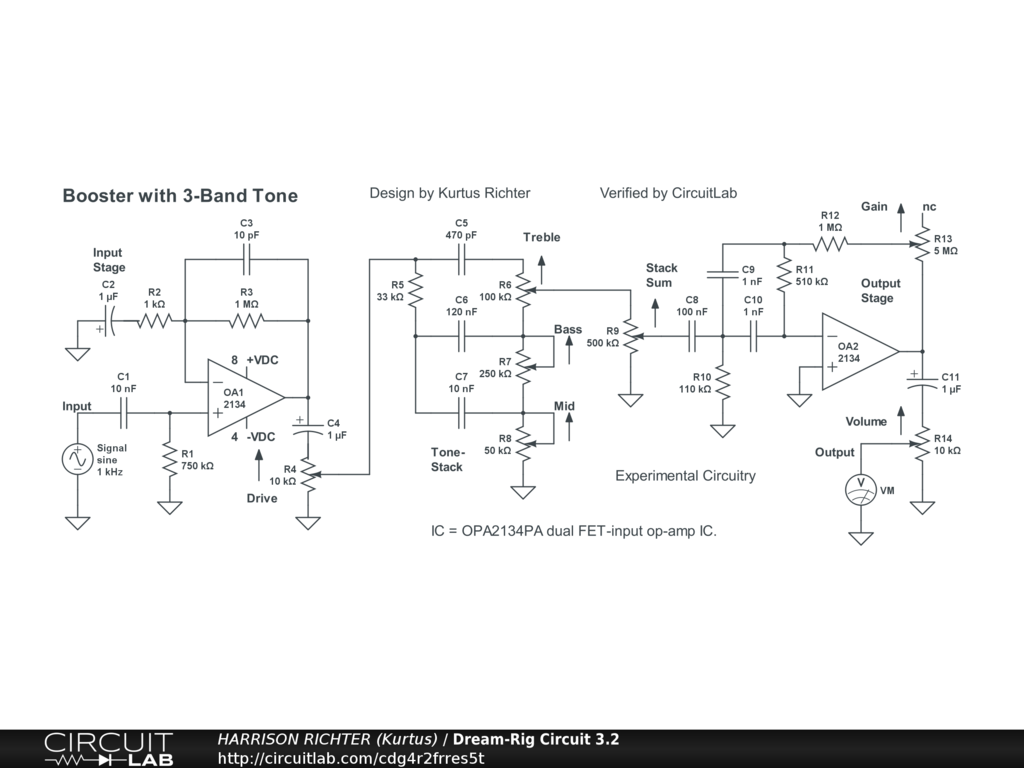

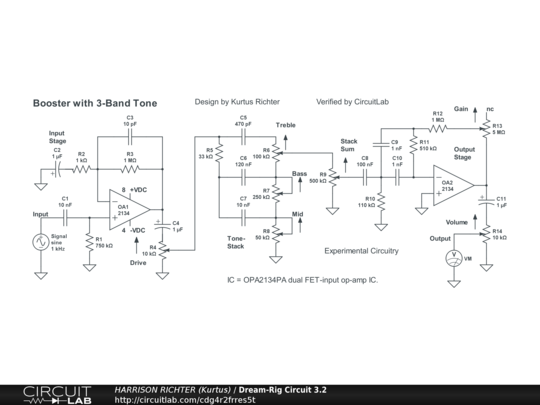

Clean Boost with 3-band Fender-style tone-stack for using in Channel 2 or Channel 3 of the Dream-Rig Project. Alternative: Use Circuit 3.1 in Channel 1 and this circuit in Channel 2. In this circuit, controls include Drive, Bass, Mid, Treble, Stack Sum, Gain, and Volume. Another Alternative: Use two of these circuits; one in Channel 1 and one in Channel 2, with different settings, for rhythm from Channel 1 but boosted clean soloing from Channel 2. Power-supply not shown. Requires a regulated dual-polarity DC supply providing +-9VDC or +-12VDC or +-15VDC at >= 20 mA of current. Note: Higher supply voltage results in lower op-amp noise. Experimental circuitry. Breadboard test before committing to a soldered build.
