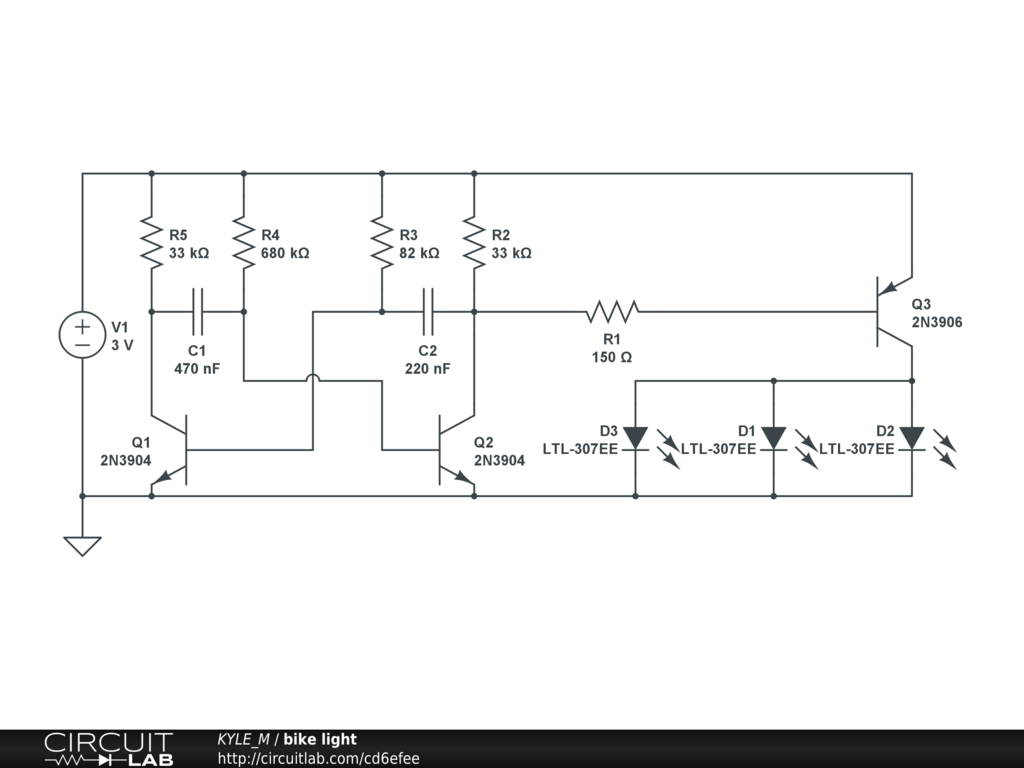

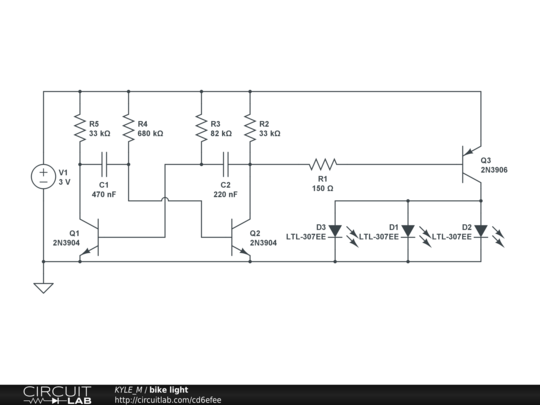

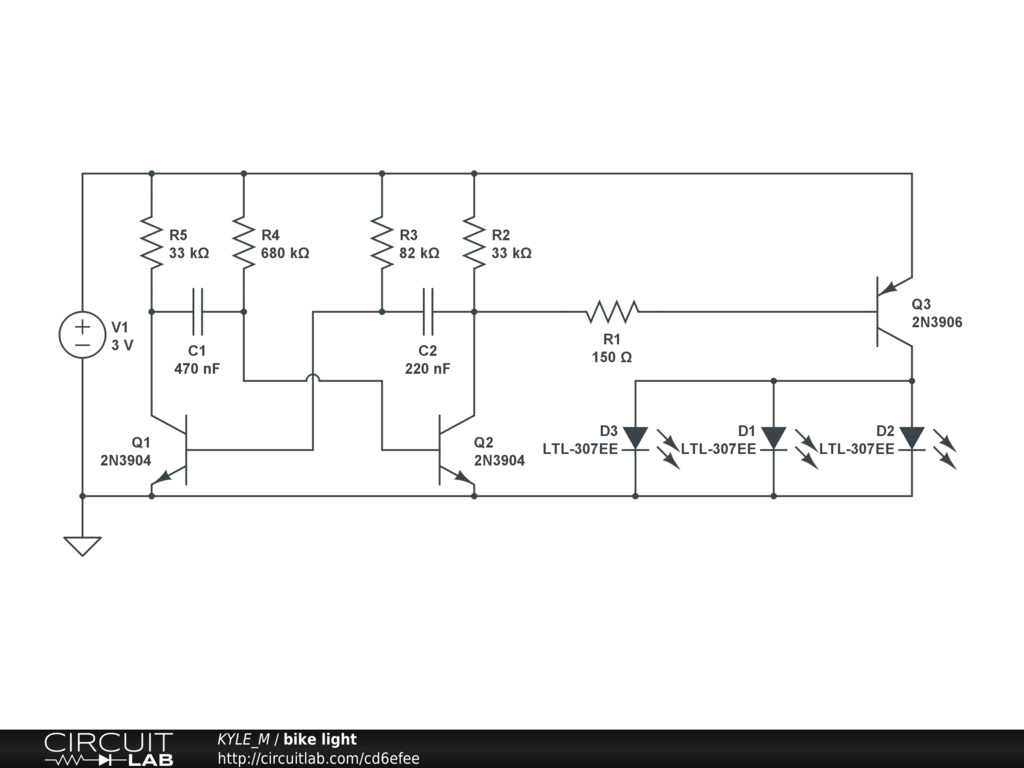

summary: assuming all the components have been assembled correctly the resulting circuit is a combination of both parallel (LED lights and resistors) and series circuit (capacitors and transistors) types. the placement of the two transistors creates an "Astable Multi-vibrator" which causes the LEDs to switch on and off, flashing at a rate of roughly one flash every 180 milliseconds which is determined by the capacitors in the circuit.
